Deceleration Valve

If required time for engine to decelerate from 3000 RPM to idle is more than 7-8 seconds, deceleration valve adjusting screw should be turned clockwise. If required time is less than 7-8 seconds, adjusting screw should be turned counterclockwise until desired time is reached.

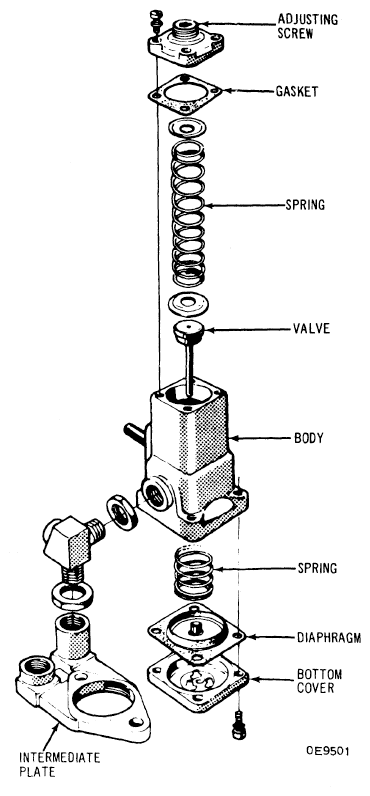

Fig 1: SAAB DECELERATION VALVE
G09309478Courtesy of SAAB-SCANIA OF AMERICA, INC.
