All Models

With wheels in straight-ahead position, loosen steering link (tie rod) lock nut and turn adjustable sleeve until correct toe-in is obtained. Tighten lock nuts and recheck toe-in.

NOTE: After adjustment of toe-in, measurement "A" (see Fig 1) of tie-rod must not exceed 7.0" (25 mm). For tie-rods opposite to each other, the difference between the measurements "A" must not exceed 0.08" (2 mm).

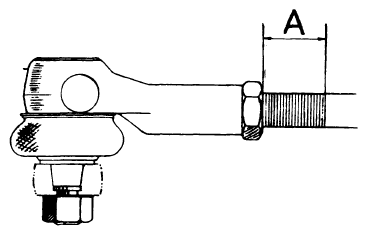

Fig 1: View Showing Where to Measure Tie Rod Length

Courtesy of SAAB-SCANIA OF AMERICA, INC.

WHEEL ALIGNMENT SPECIFICATIONS

Application

Caster (Degrees)

Camber (Degrees)

Toe-In (Inches)

Toe-Out On Turns (Degrees)

Inner

Outer

Saab 99

1 ± 1/2

1/2 ± 1/2

⁽¹⁾0 to 5/64

20-22

⁽¹⁾	With power steering set to -3/64 to 3/64".
