Exhaust Emissions System - EVAP: Operation

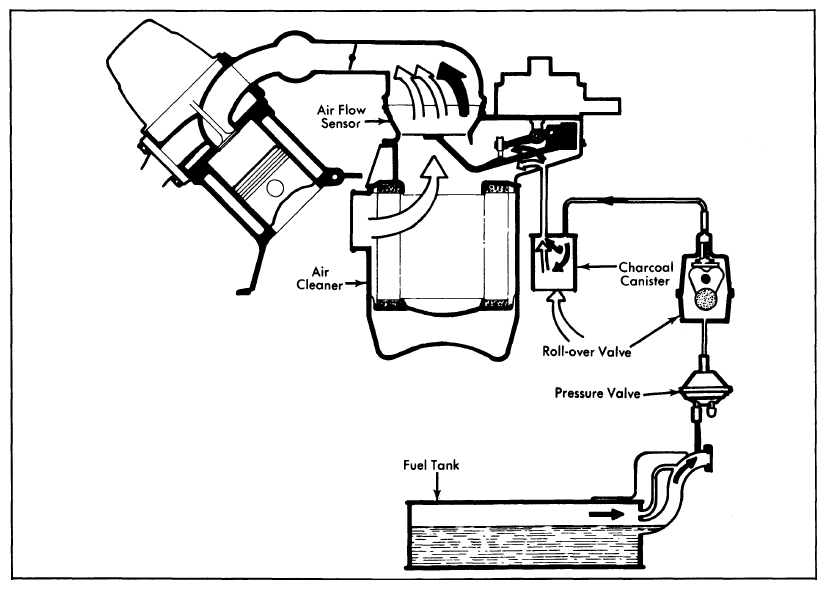

When engine is stopped, fuel vapors from fuel tank flow through vapor line into charcoal canister where they are stored. When the engine is running, fresh air drawn through the charcoal canister, creates a vacuum that pulls the stored fuel vapors into the engine.
The roll-over valve, located in the trunk or in the rear left corner pillar, shuts off the fuel ventilation hose, preventing escape of fuel in the event of an accident.
The pressure valve, located in the ventilation hose between filler pipe and charcoal canister, serves to equalize fuel tank pressure and avoid fuel tank collapse.

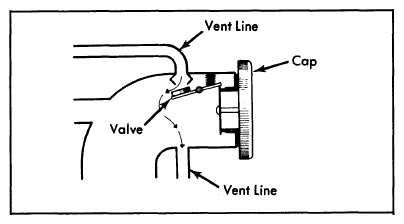

The fuel tank filler cap contacts a spring loaded valve in the filler neck. Installing the filler cap, opens the valve, allowing fuel vapors to be vented to the charcoal canister when high temperatures cause the fuel to expand.
