Wiring Diagrams: Wiring Diagram

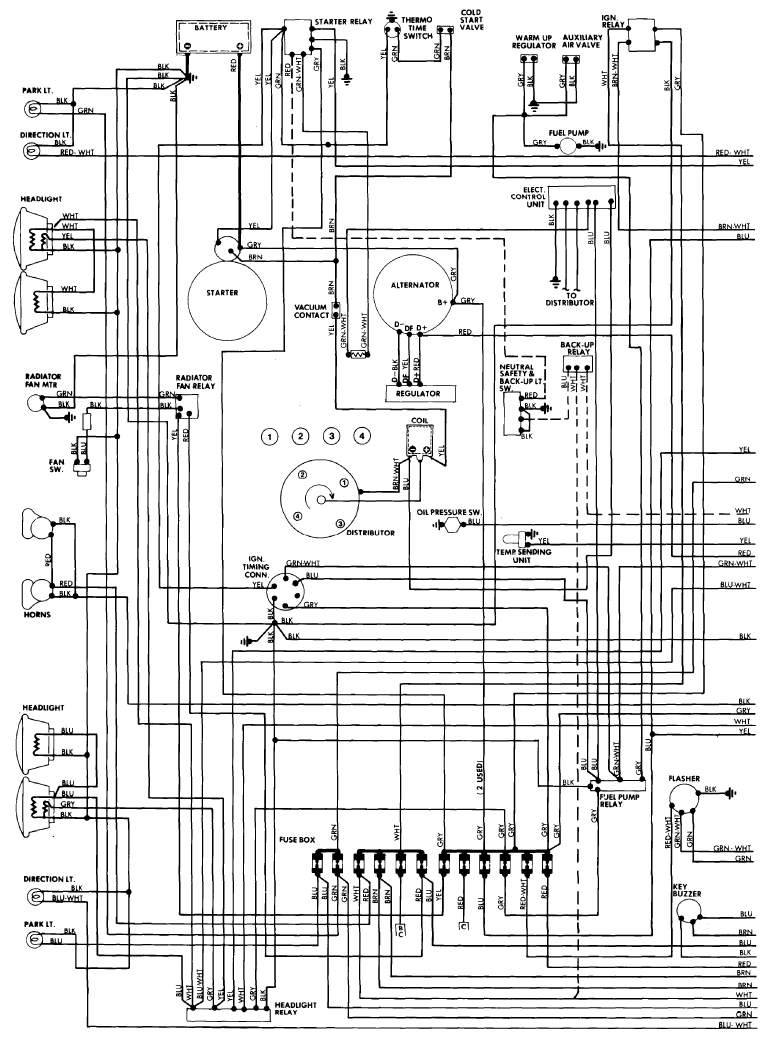

Fig 1: Wiring Diagram - 99 (1 of 2)
Courtesy of SAAB-SCANIA OF AMERICA, INC.

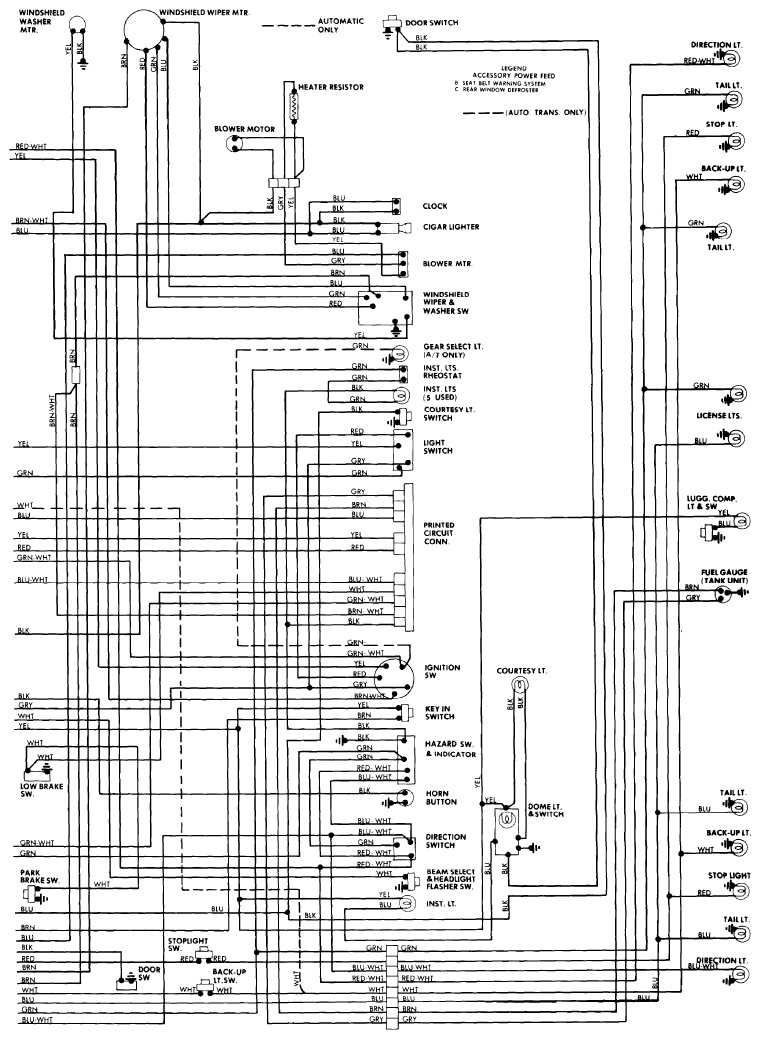

Fig 2: Wiring Diagram - 99 (2 of 2)
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
