Main Relay

Main relay is tested in the same manner as the fuel pump relay.

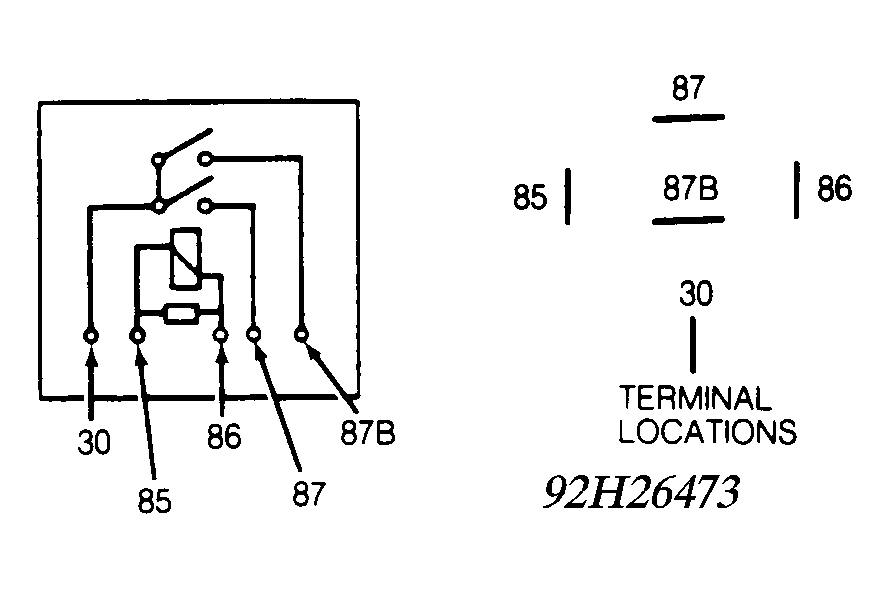

Fig 1: Identifying Fuel Pump Relay & Main Relay Circuitry
G92H26473Courtesy of SAAB-SCANIA OF AMERICA, INC.
