Data Link Connector

DLC connector is located under the left side of instrument panel. See Fig 1 .

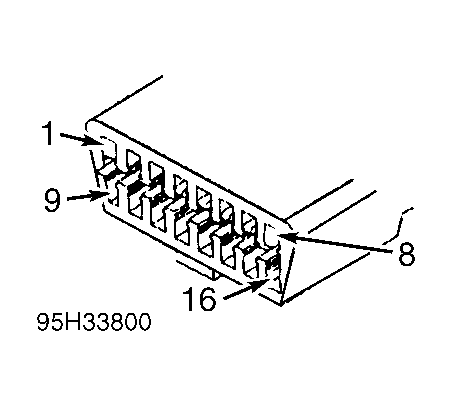

Fig 1: Identifying Data Link Connector (DLC) Terminals
G95H33800Courtesy of SAAB-SCANIA OF AMERICA, INC.
