Grounding point G24: Notes

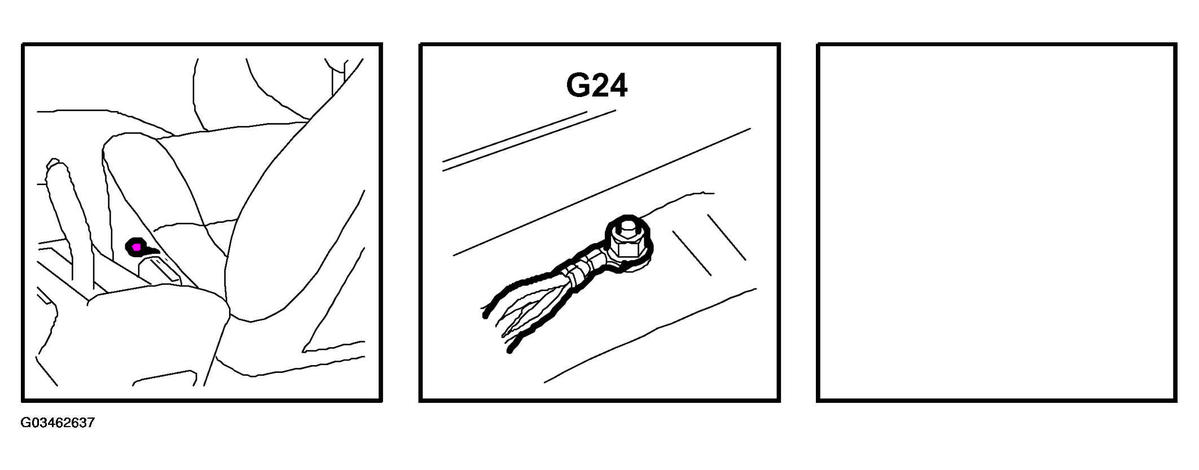

Fig 1: Identifying Grounding Point G24

G03462637

Location: under RH seat on floor behind seat member
