System overview: Notes

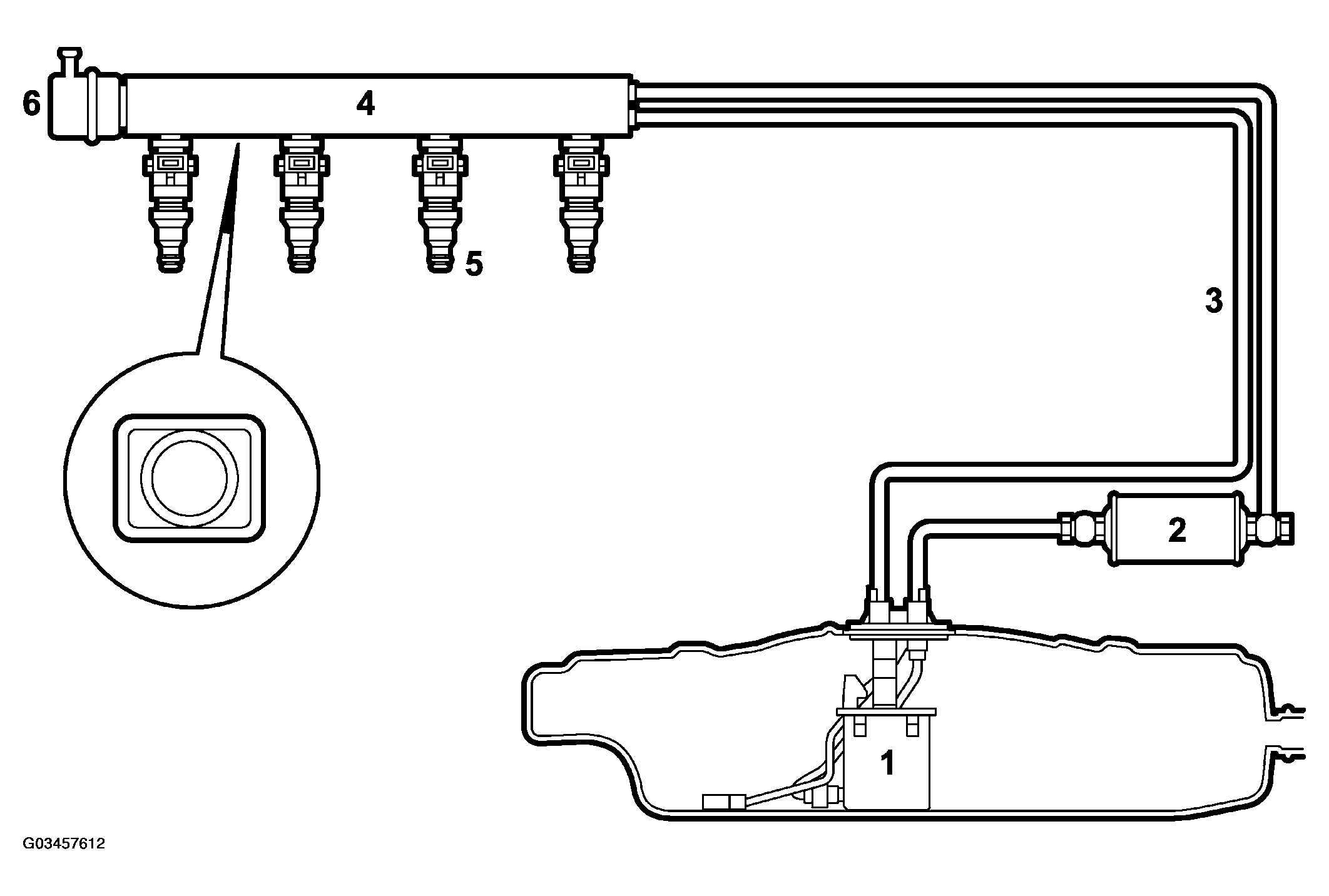

Fig 1: Fuel System Components Overview (Petrol)
G03457612
  1. Fuel pump
  2. Fuel filter
  3. Fuel line
  4. Fuel rail
  5. Injector
  6. Pressure regulator
