Grounding point G2: Notes

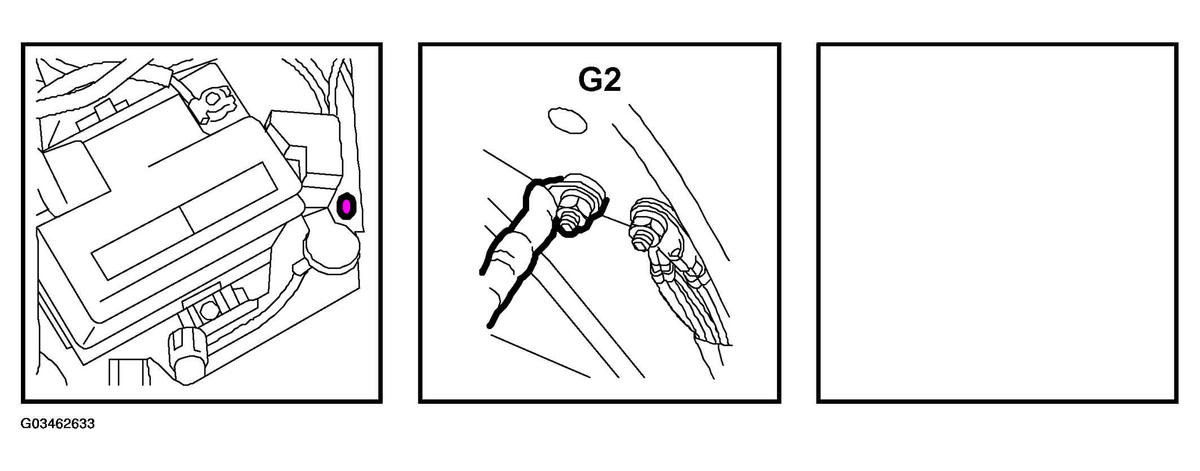

Fig 1: Identifying Grounding Point G2
G03462633

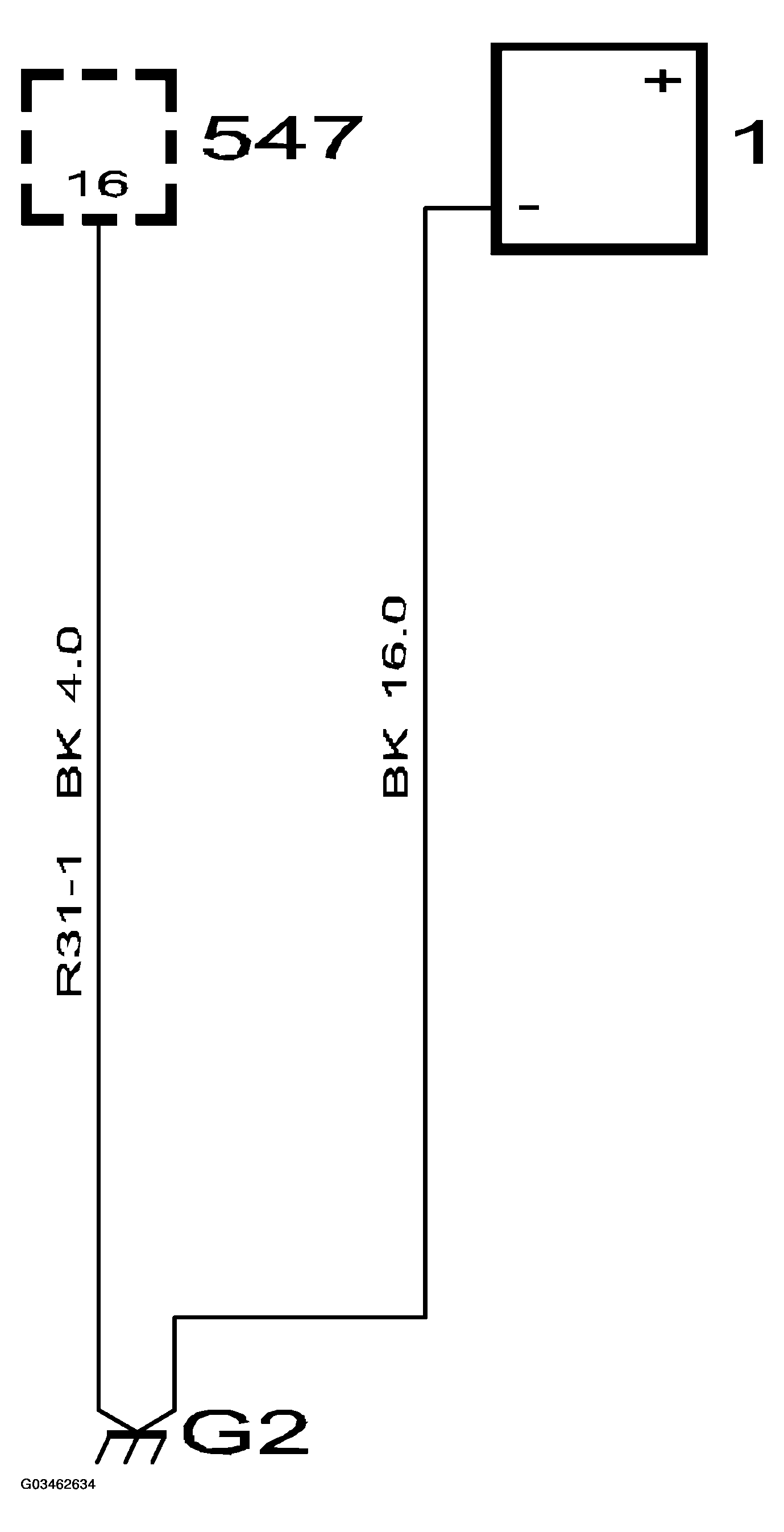

Fig 2: Grounding Point G2 Circuit Diagram
G03462634

Location:  in engine bay on side plate in front of LH wheel housing
