Connecting rods

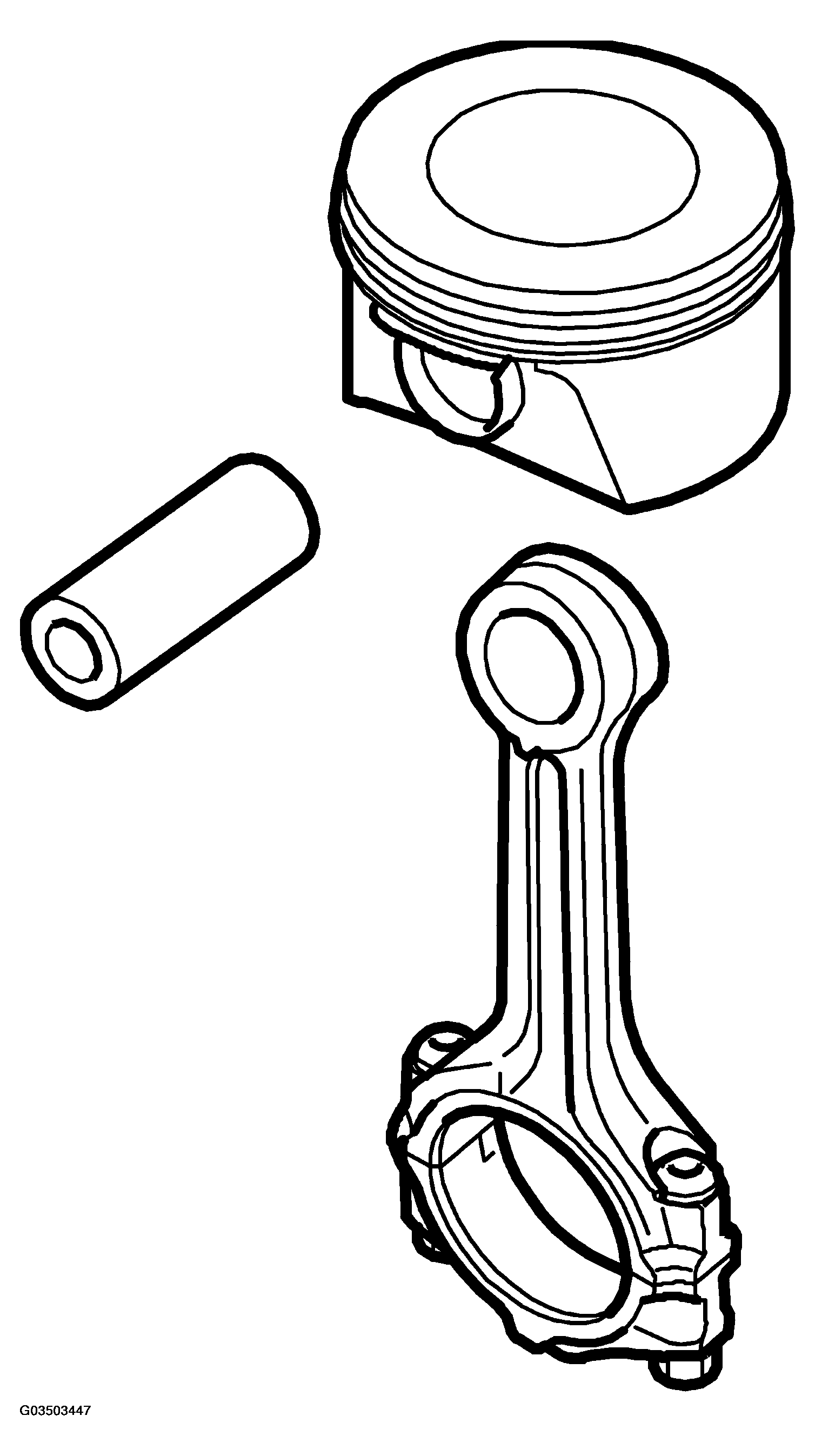

Connecting rod
CONNECTING ROD CLASSIFICATIONS
| B235R | B205E/L/R | ||
| Diameter of big -end | mm | 56.000 - 56.019 | 56.000 - 56.019 |
| Diameter of small-end bushing (bushing fitted) | mm | 24.012 - 24.017 | 24.012 - 24.017 |
| The difference in weight between big-ends in the same engine must not exceed: | g (oz.) | 6 (0.21) | 6 (0.21) |
| Length | mm | 153 | 159 |
