Injectors (206)

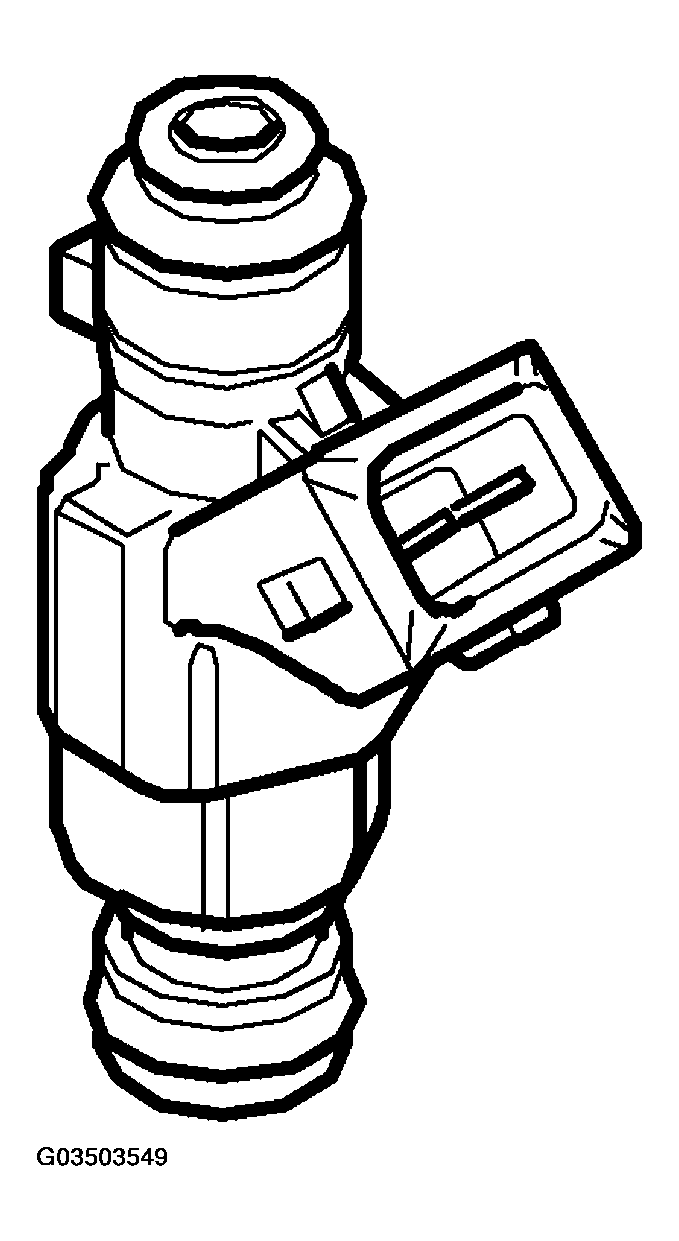

Fig 1: View Of Injectors
G03503549
INJECTORS SPECIFICATIONS

Location   On top of intake manifold
Engine type   B205E/L/R, B235R
Type   Bosch EV6E, brown
Version   4-hole
Flow capacity ml/ 30 s 176 +/- 10
Maximum permissible difference between injectors ml 20
