To fit

  1. Apply Krytox (part no. 30 19 312) to the rubber seals and fit the ignition discharge module.

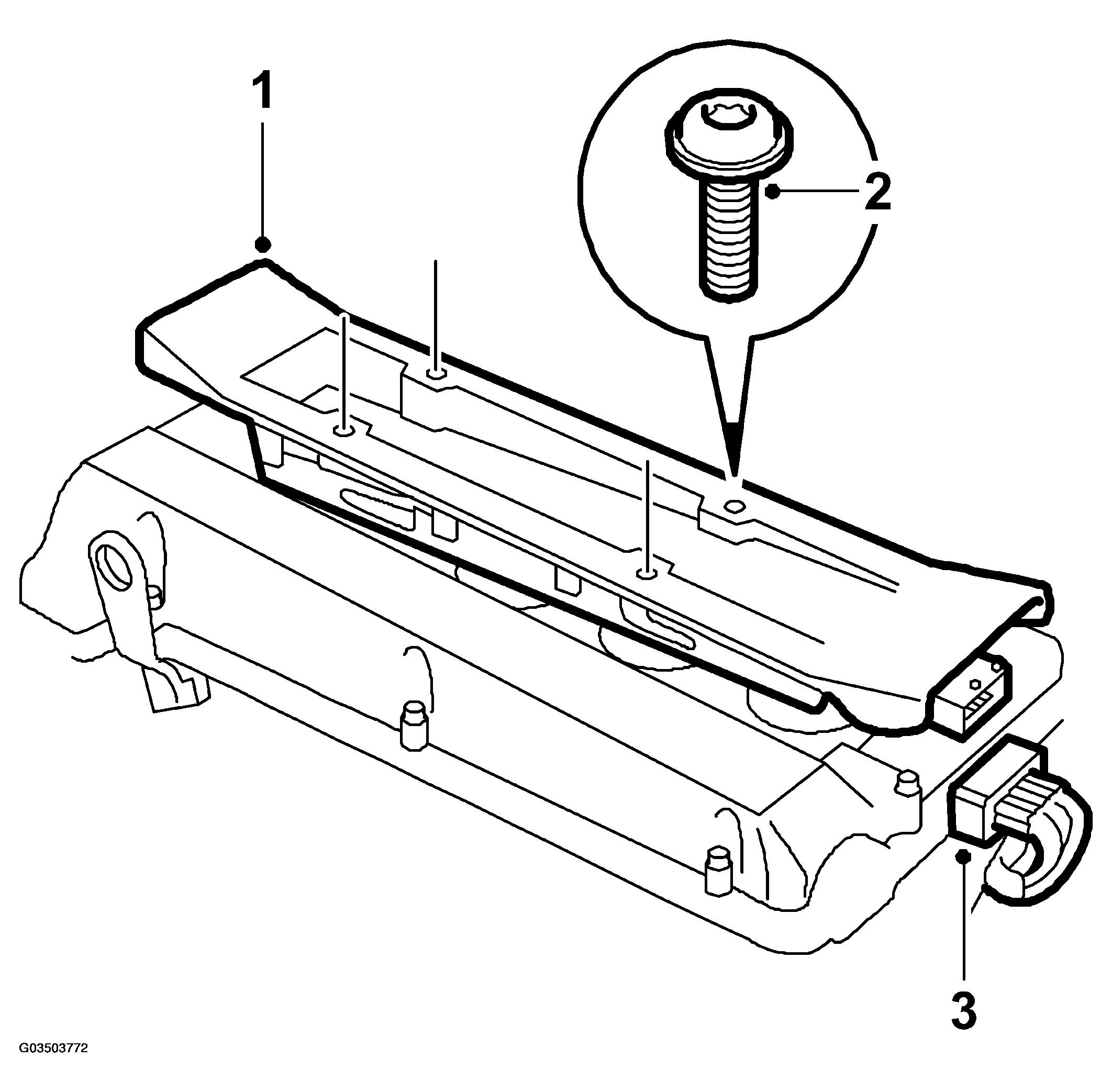

    Fig 1: Illustration For Step 1-2-3
    G03503772Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Fit the 4 screws.

    Tightening torque 11 N.m (8.1 lbf ft)

  3. Spray the 10-pin ignition discharge module connector with Kontakt 61 (part no. 30 04 520). Plug in the connector.
