To remove

  1. Pull out the steering wheel to its outermost position.
  2. Remove the covers on the steering column bearing bracket (3 screws).
    NOTE: Take care, as there are 4 catches in the lower cover.

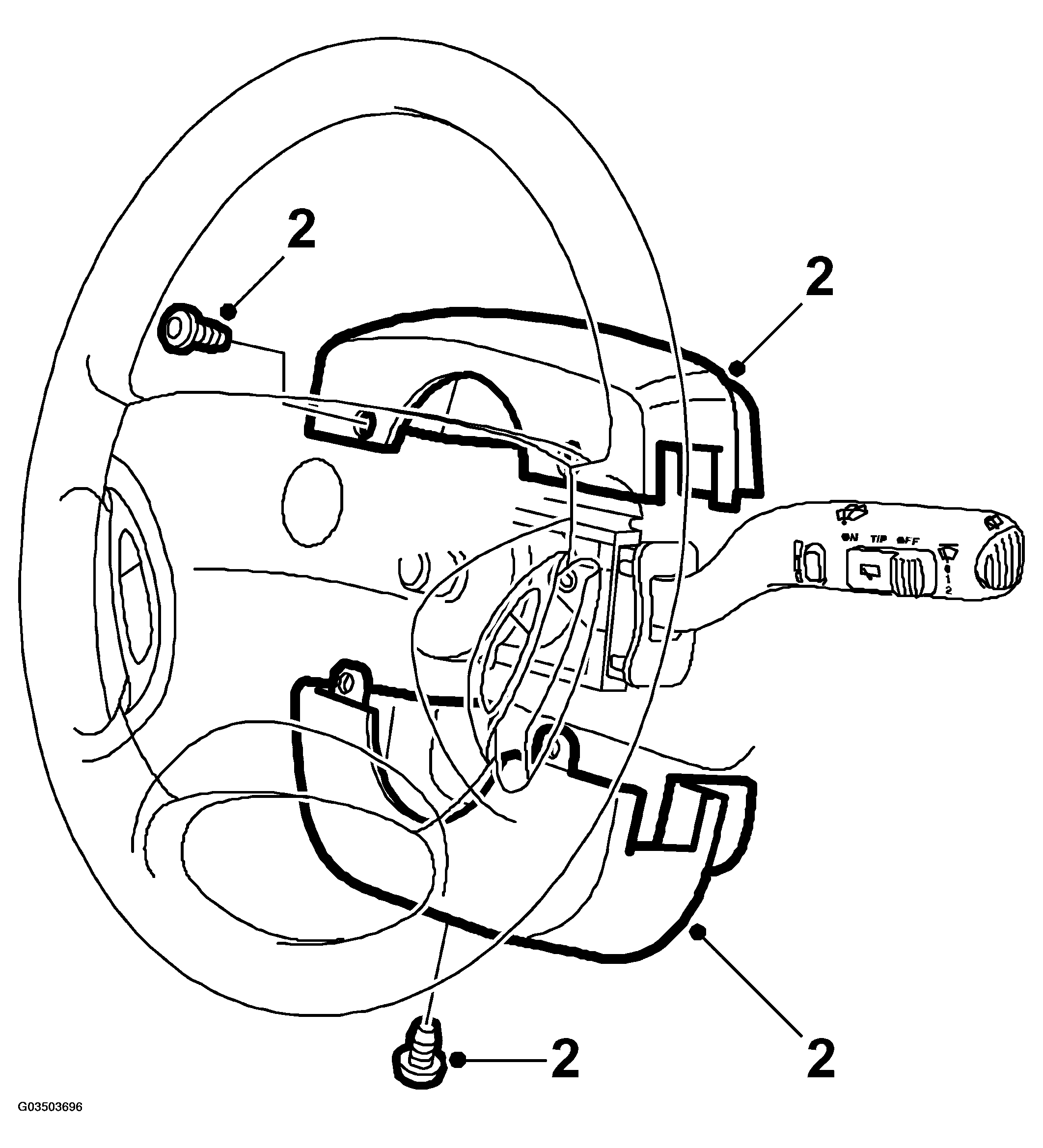

    Fig 1: Illustration For Step 2
    G03503696Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Pull out the dipswitch (2 clips).

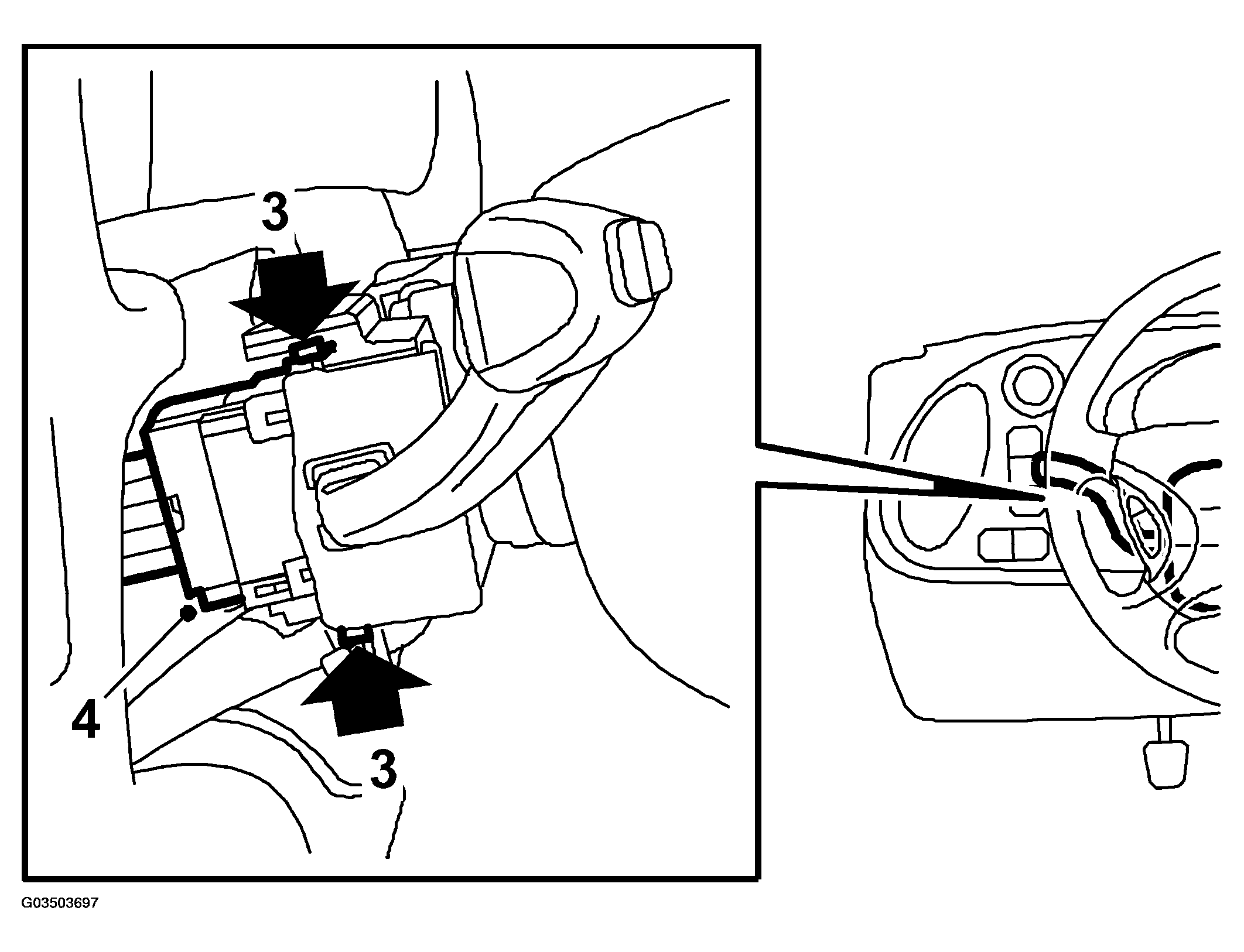

    Fig 2: Illustration For Step 3-4
    G03503697Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Unplug the 10-pin connector.
  5. Remove the switch.
