Connector H33-5: LHD

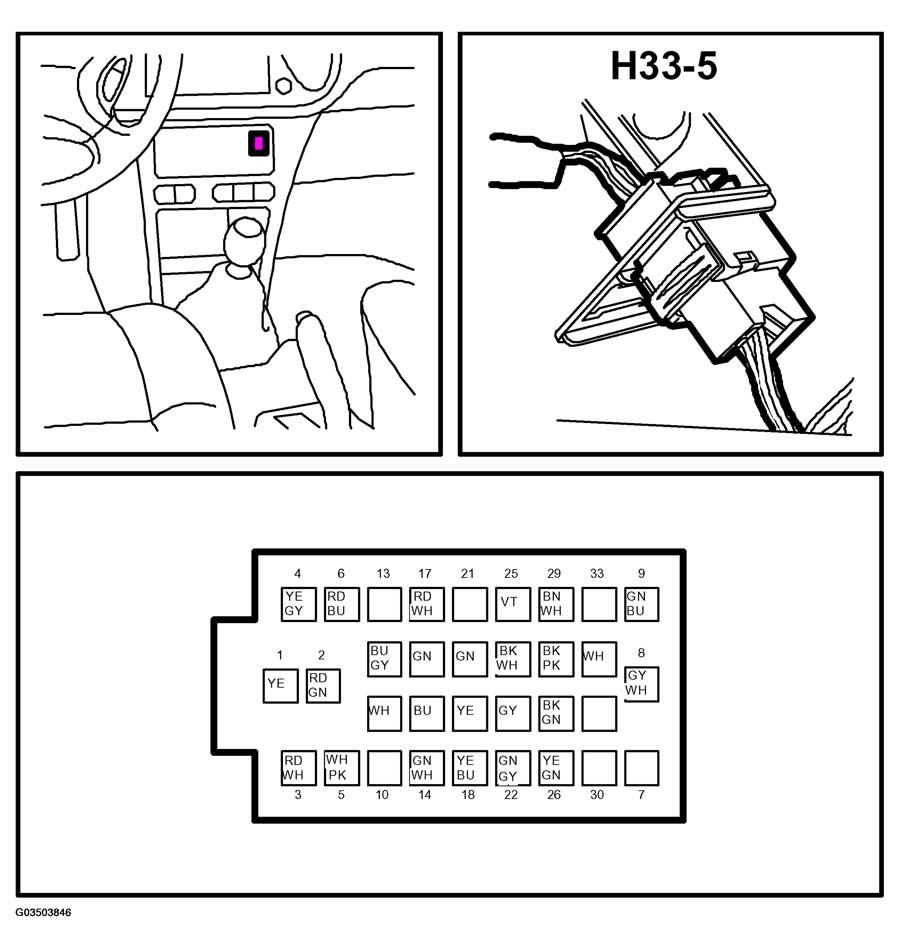

Fig 1: Identifying Connector H33-5 - LHD

G03503846

Courtesy of SAAB-SCANIA OF AMERICA, INC.
