DTC P0134: O2S Circuit No Activity Detected Sensor 1: Notes

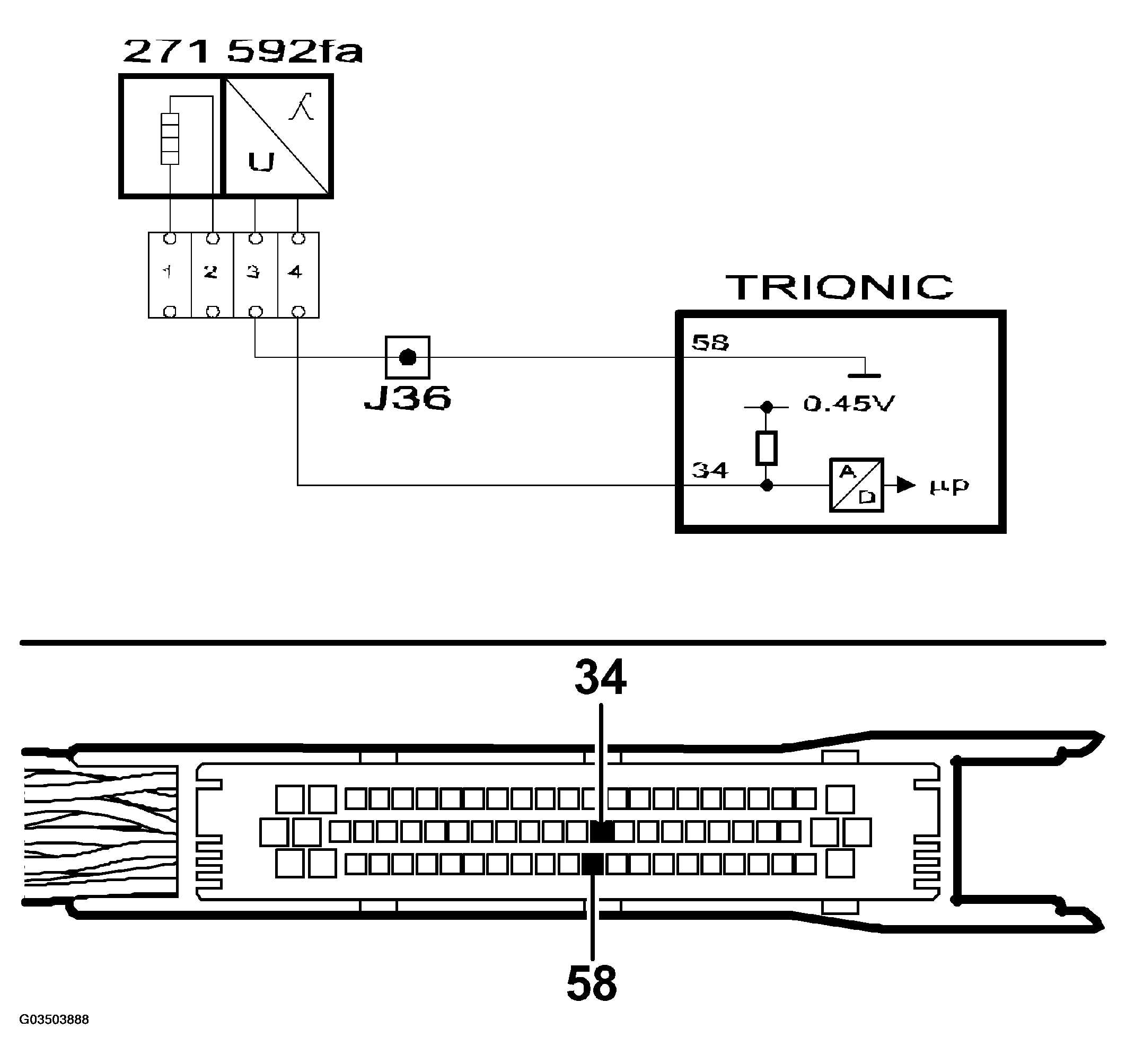

Fig 1: Identifying O2S Circuit Diagram - No Activity Detected - Sensor 1
G03503888Courtesy of SAAB-SCANIA OF AMERICA, INC.
