DTC P1310: Ignition Discharge Module Not Powered Bank 1: Notes

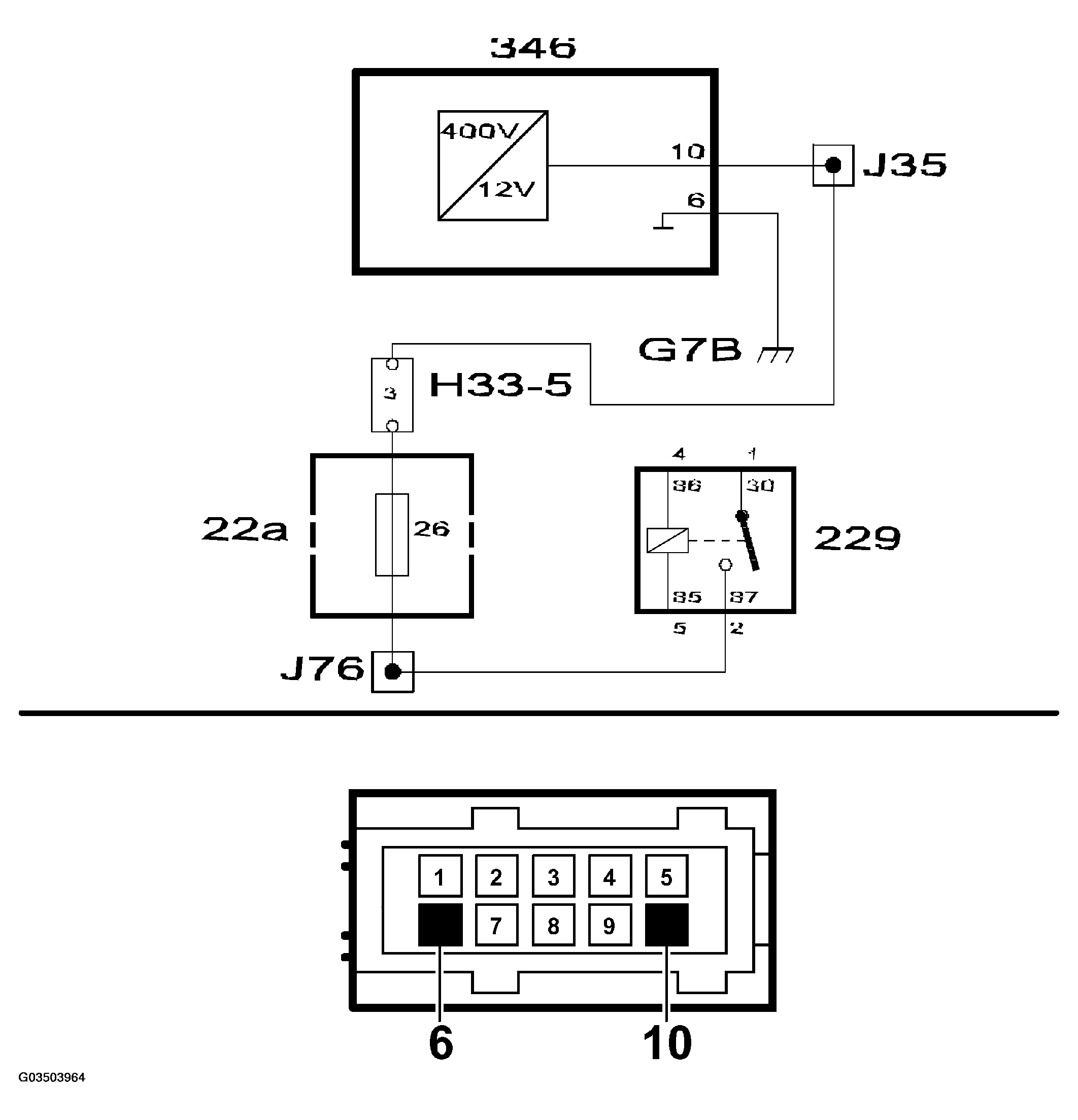

Fig 1: Circuit Diagram - Ignition Discharge Module - Not Powered (Bank 1)
G03503964Courtesy of SAAB-SCANIA OF AMERICA, INC.
