Fuel pressure regulator

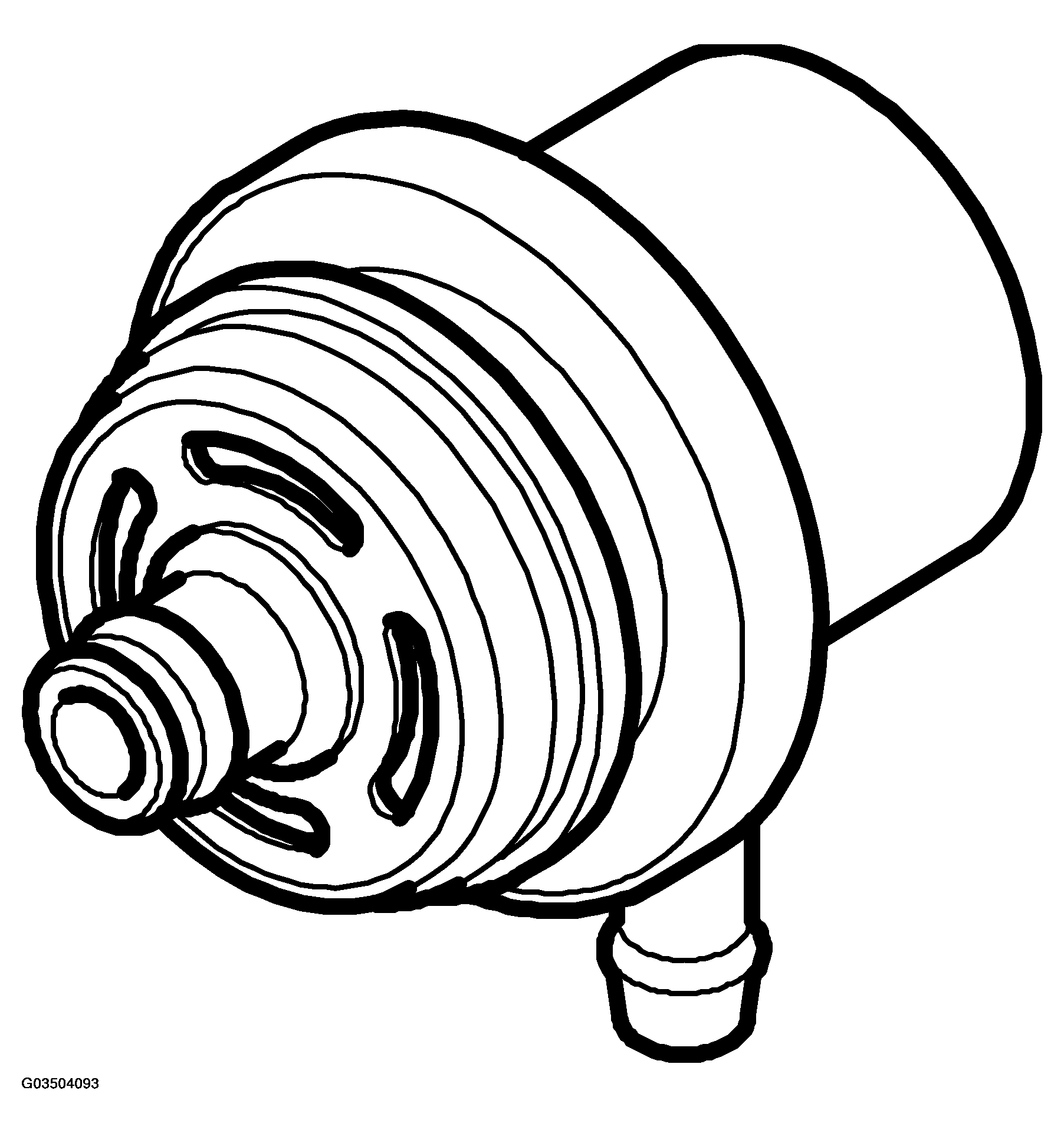

Fig 1: Identifying Fuel Pressure Regulator
Courtesy of SAAB-SCANIA OF AMERICA, INC.
TECHNICAL DATA - FUEL PRESSURE REGULATOR
Fuel pressure (bar)
3.0+/-0.1
Pressure, air side
Connected to intake manifold
Courtesy of SAAB-SCANIA OF AMERICA, INC.
