To remove

  1. Remove the lid on the box containing relays and fuses in the engine bay.
  2. Remove the relay by pushing the catch carefully to one side and pulling up the relay.

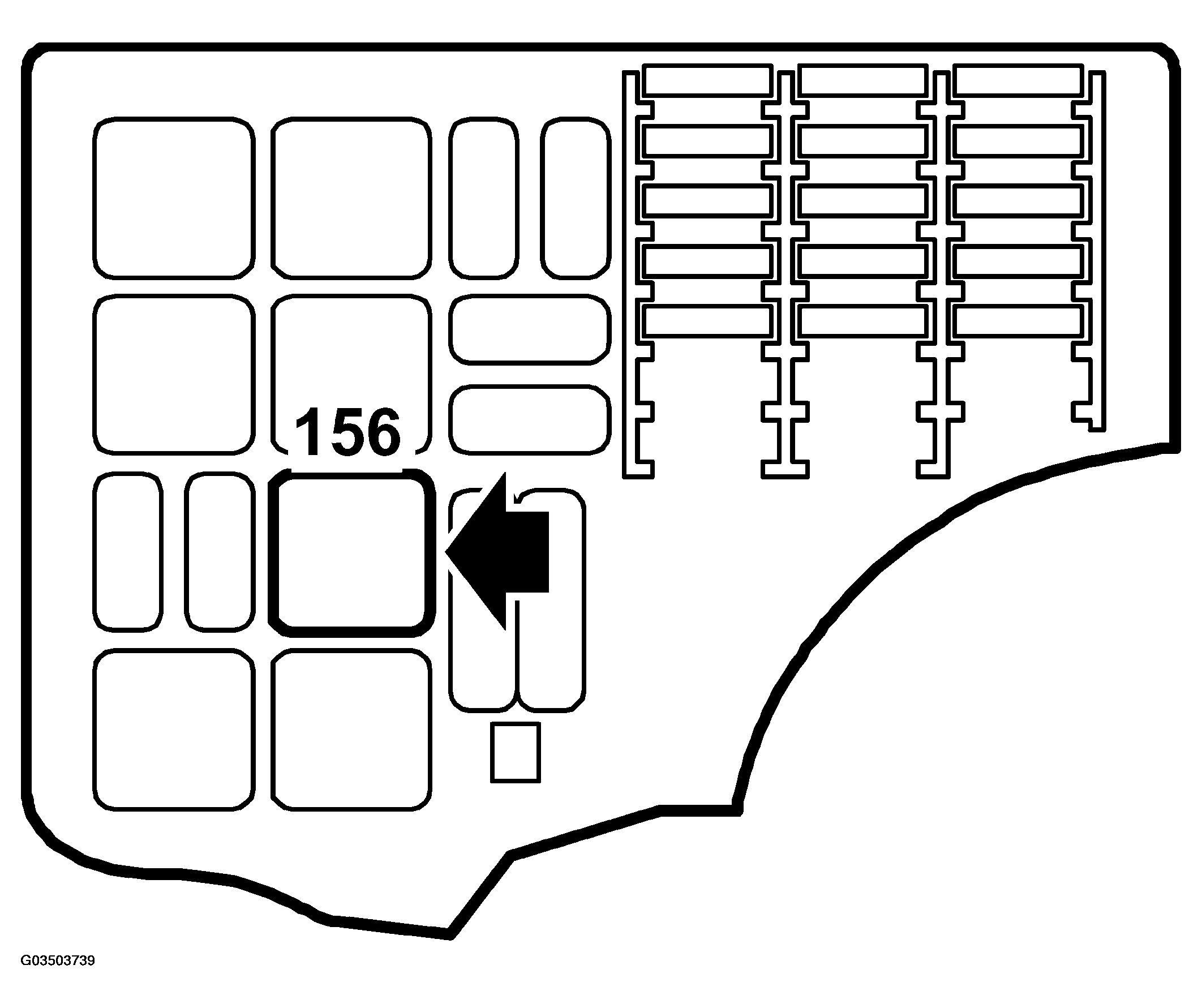

    Fig 1: Identifying A/C Relay
    G03503739Courtesy of SAAB-SCANIA OF AMERICA, INC.
