To fit

  1. Fit the sensor. Lubricate the threads with vaseline (part no. 30 20 271) or equivalent. Fit a new sealing washer as necessary. Spray the connector with Kontakt 61 (part no. 30 04 520) and connect it to the sensor.

    Tightening torque 13 N.m (9.6 lbf ft)

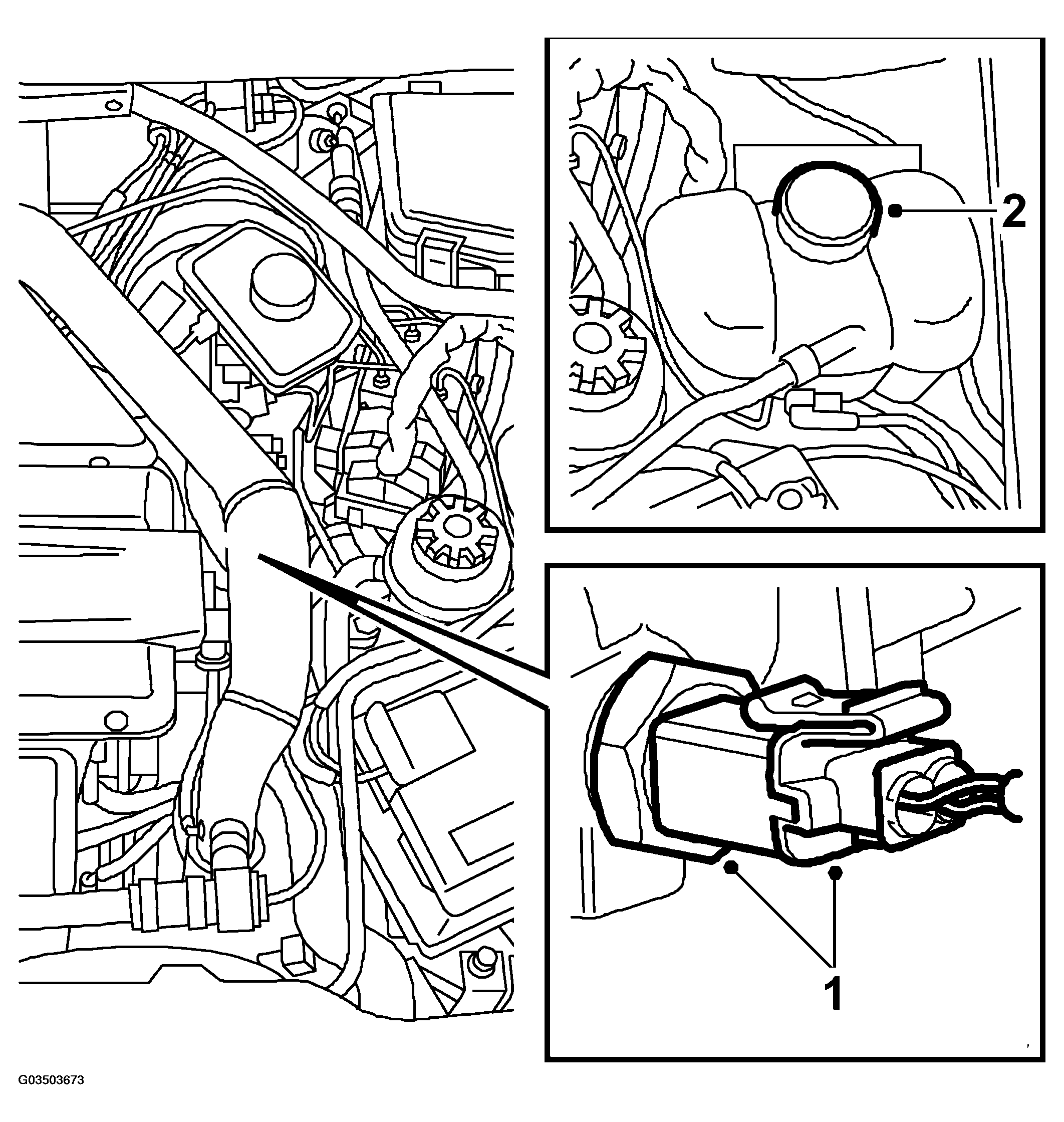

    Fig 1: Illustration For Step 1-2
    G03503673Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Top up with coolant as necessary after fitting.

    Start the engine. Make sure there are no leaks. Top up with coolant as necessary.
