Home
>>
Saab
>>
2001
>>
9-3 Base, 2D Hatchback, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
TRIONIC T7 Fuel Control System
>>
Component Location
>>
Connector H33-3
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Connector H33-3

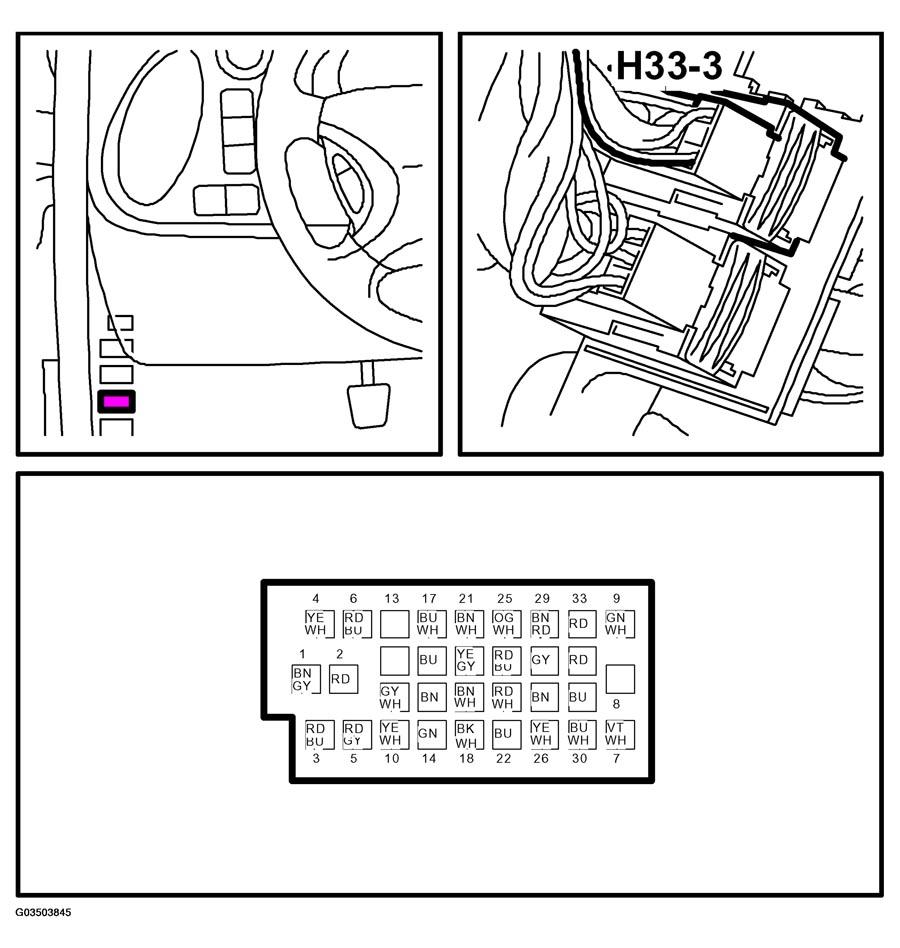

Fig 1: Identifying Connector H33-3
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
