Main relay, engine management system (229)

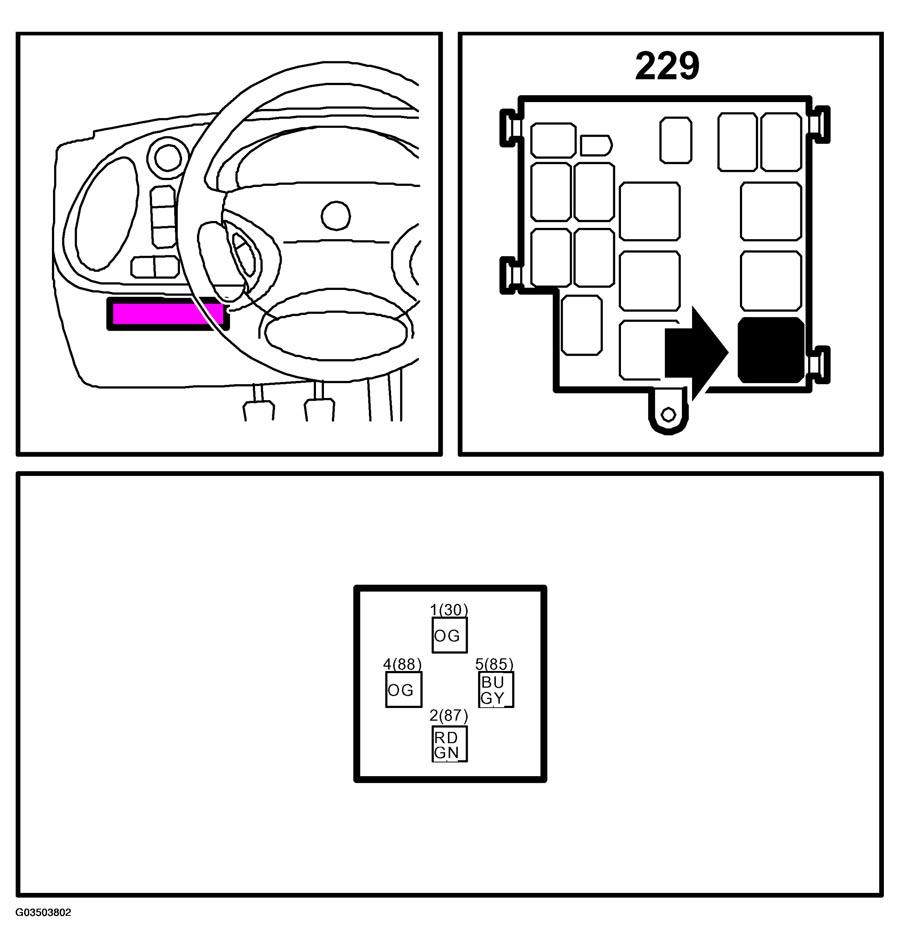

Fig 1: Identifying Main Relay - Engine Management System
G03503802Courtesy of SAAB-SCANIA OF AMERICA, INC.
