Temperature sensor, coolant, engine management system (202): PSG16

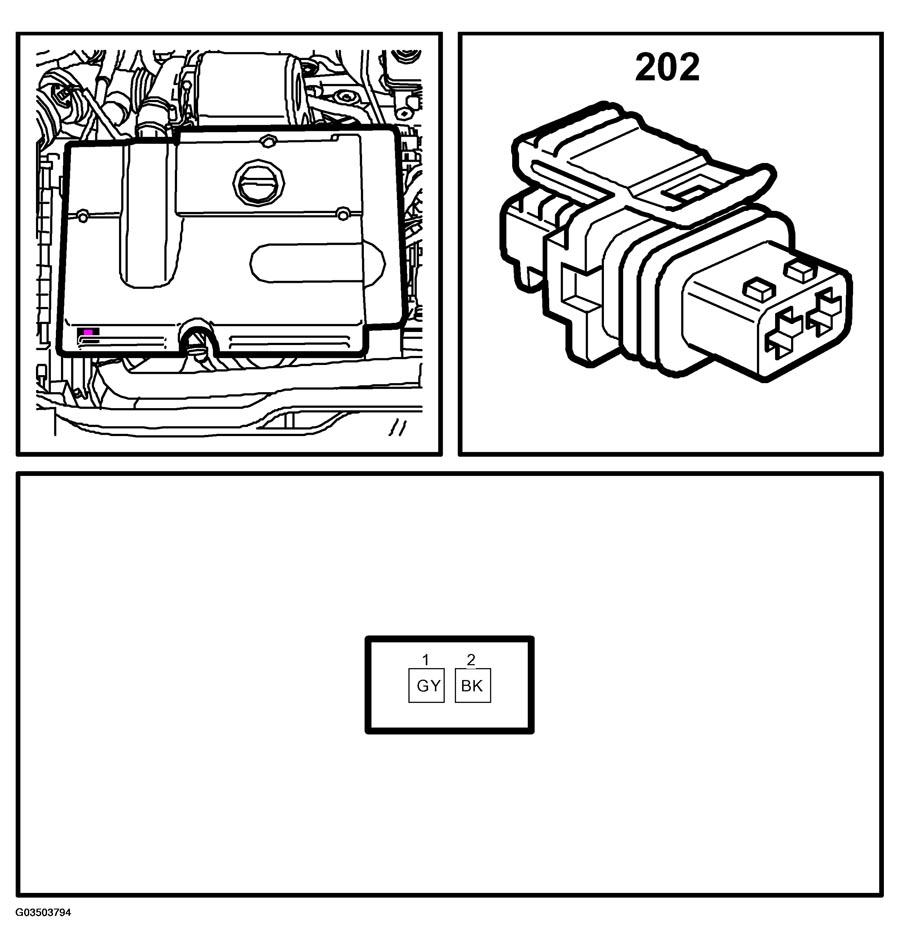

Fig 1: Identifying Temperature Sensor - PSG16
G03503794Courtesy of SAAB-SCANIA OF AMERICA, INC.
