Component Locations

NOTE: Following illustrations are provided to assist in locating components. See Fig 1 -Fig 22 .

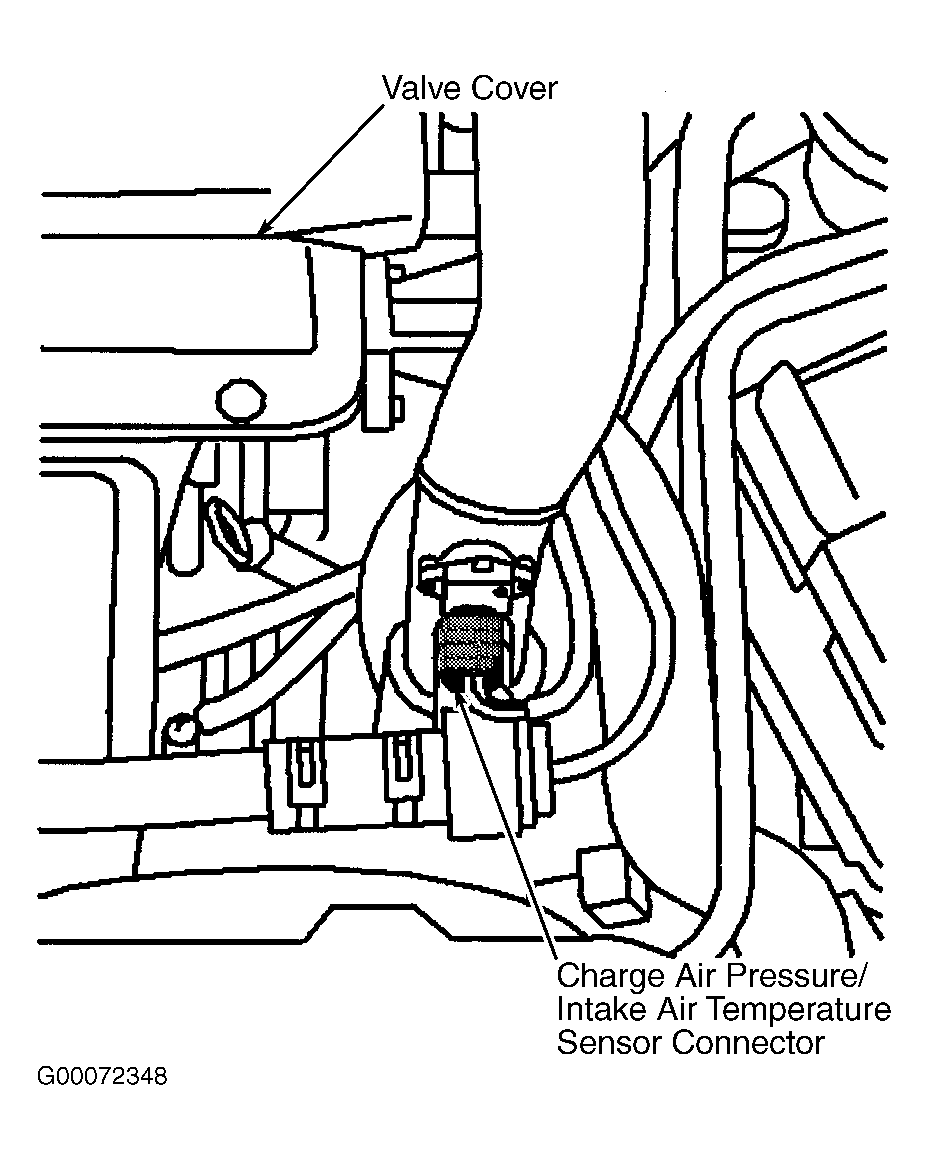

Fig 1: Locating Charge Air Pressure/Intake Air Temperature Sensor Connector (9-3 & 9-5 - 2.3L)

G00072348

Courtesy of SAAB-SCANIA OF AMERICA, INC.

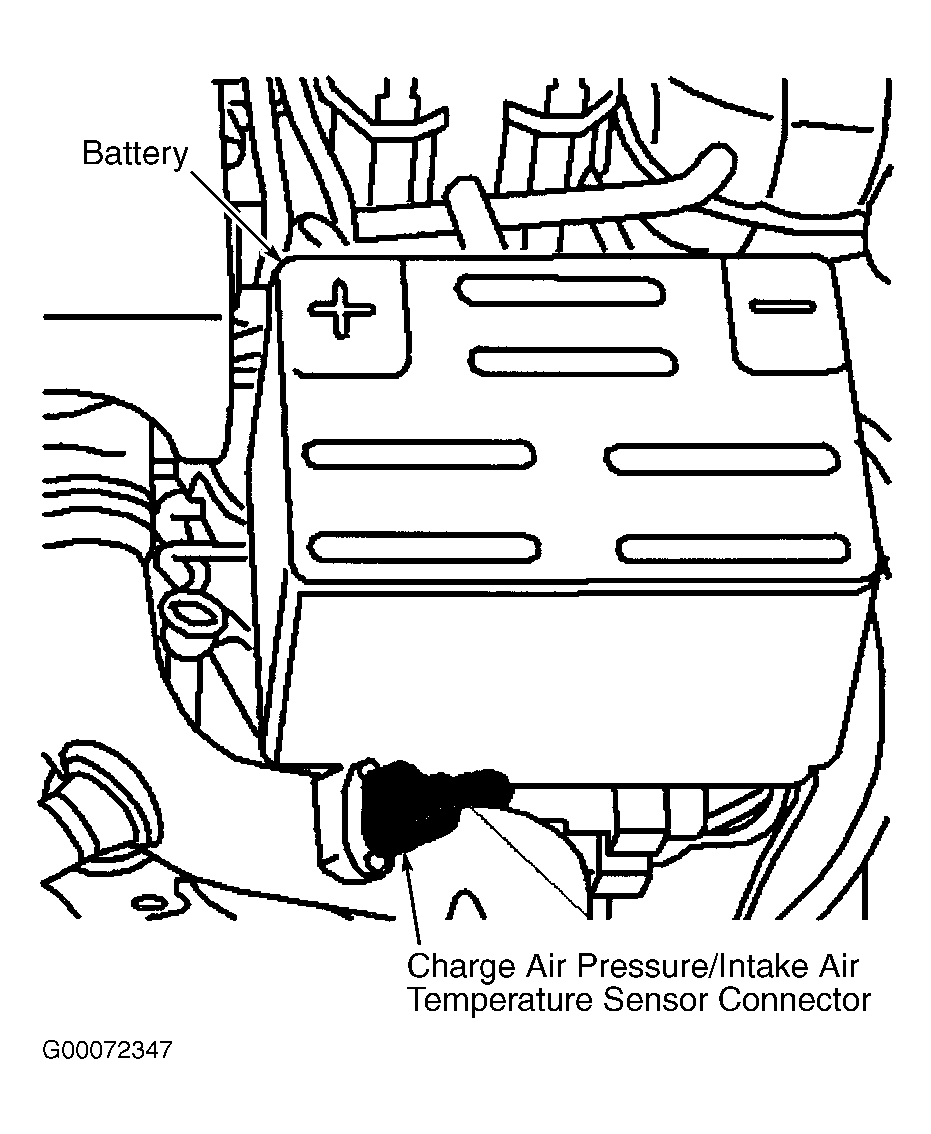

Fig 2: Locating Charge Air Pressure/Intake Air Temperature Sensor Connector (9-5 - 3.0L)

G00072347

Courtesy of SAAB-SCANIA OF AMERICA, INC.

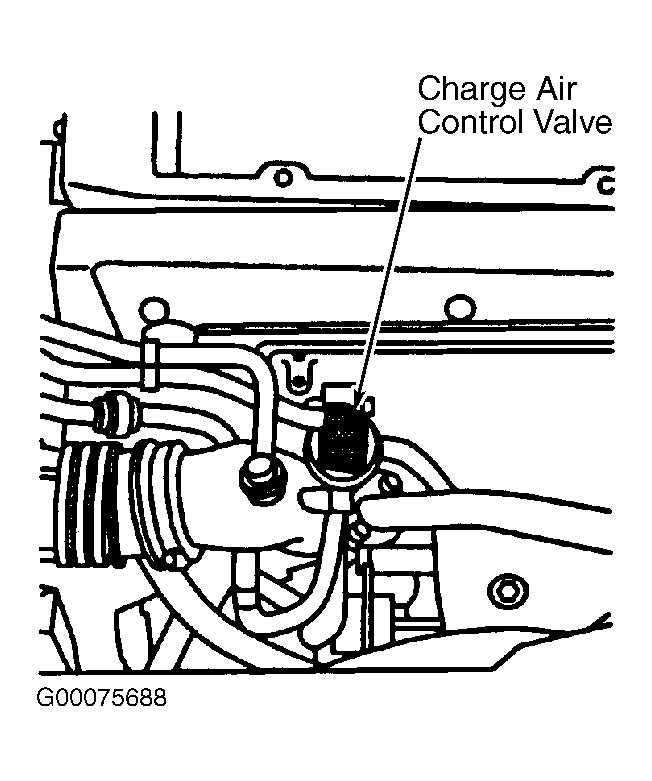

Fig 3: Locating Charge Air Control Valve (9-3)

G00075688

Courtesy of SAAB-SCANIA OF AMERICA, INC.

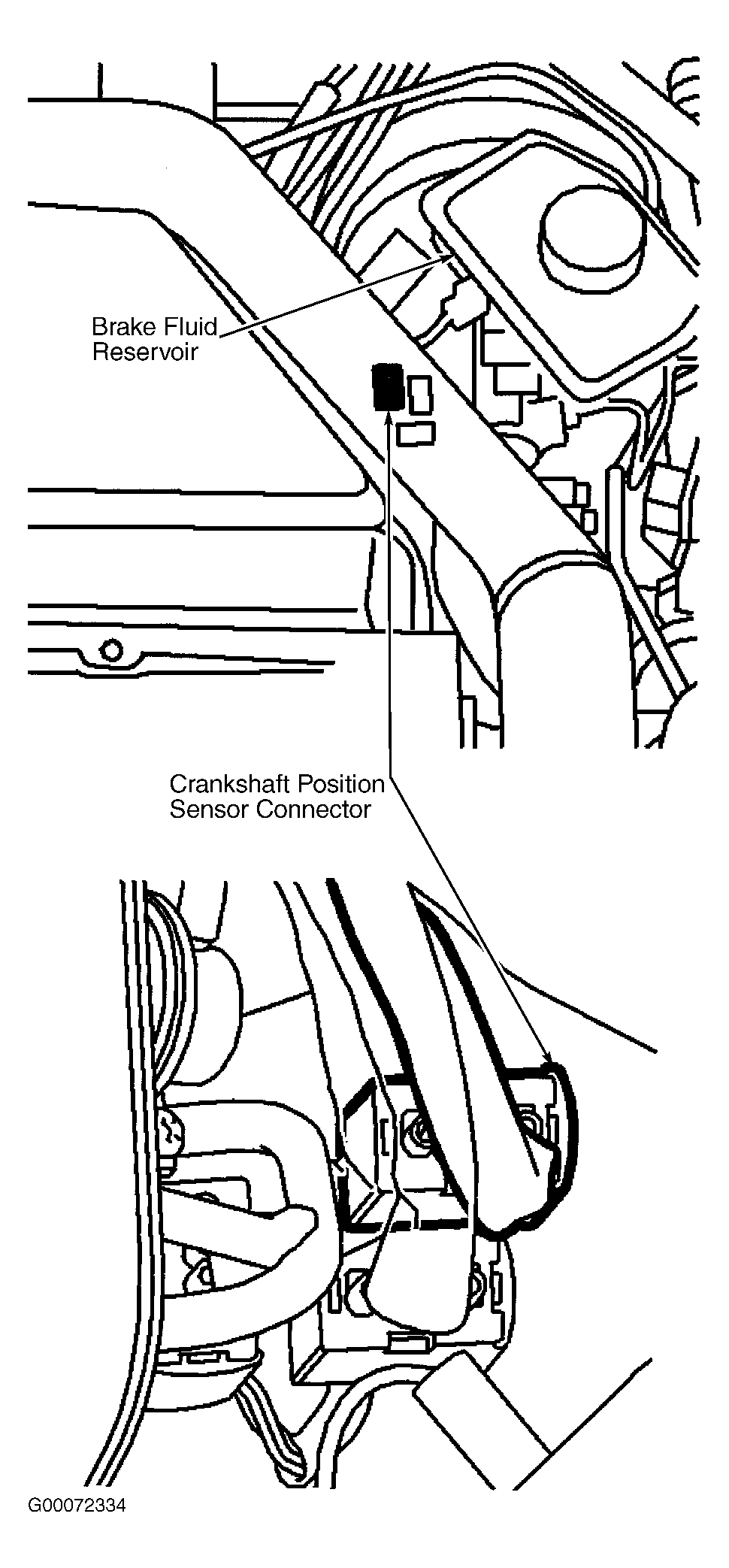

Fig 4: Locating Crankshaft Position Sensor Connector (9-3)

G00072334

Courtesy of SAAB-SCANIA OF AMERICA, INC.

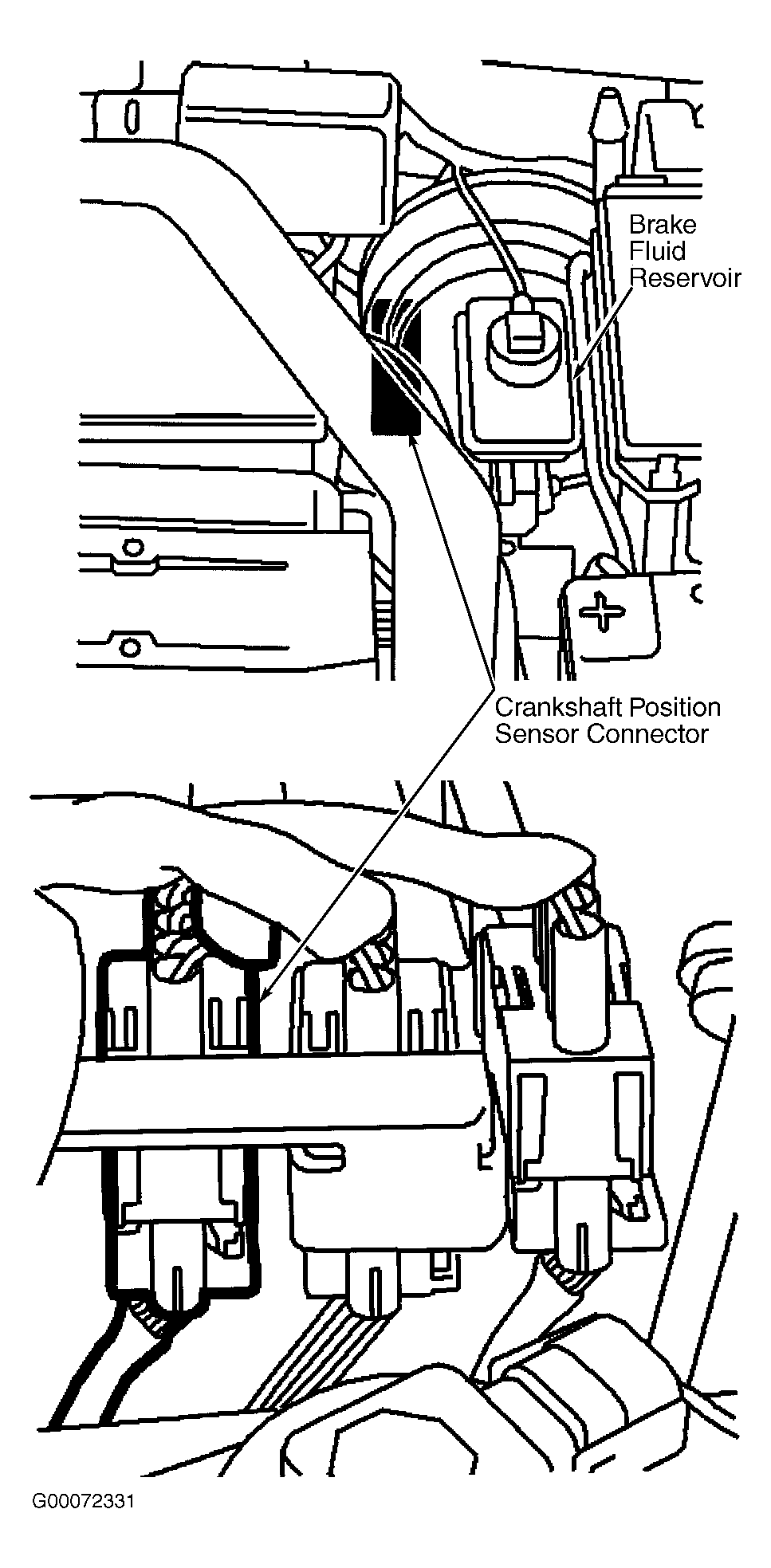

Fig 5: Locating Crankshaft Position Sensor Connector (9-5 - 2.3L)

G00072331

Courtesy of SAAB-SCANIA OF AMERICA, INC.

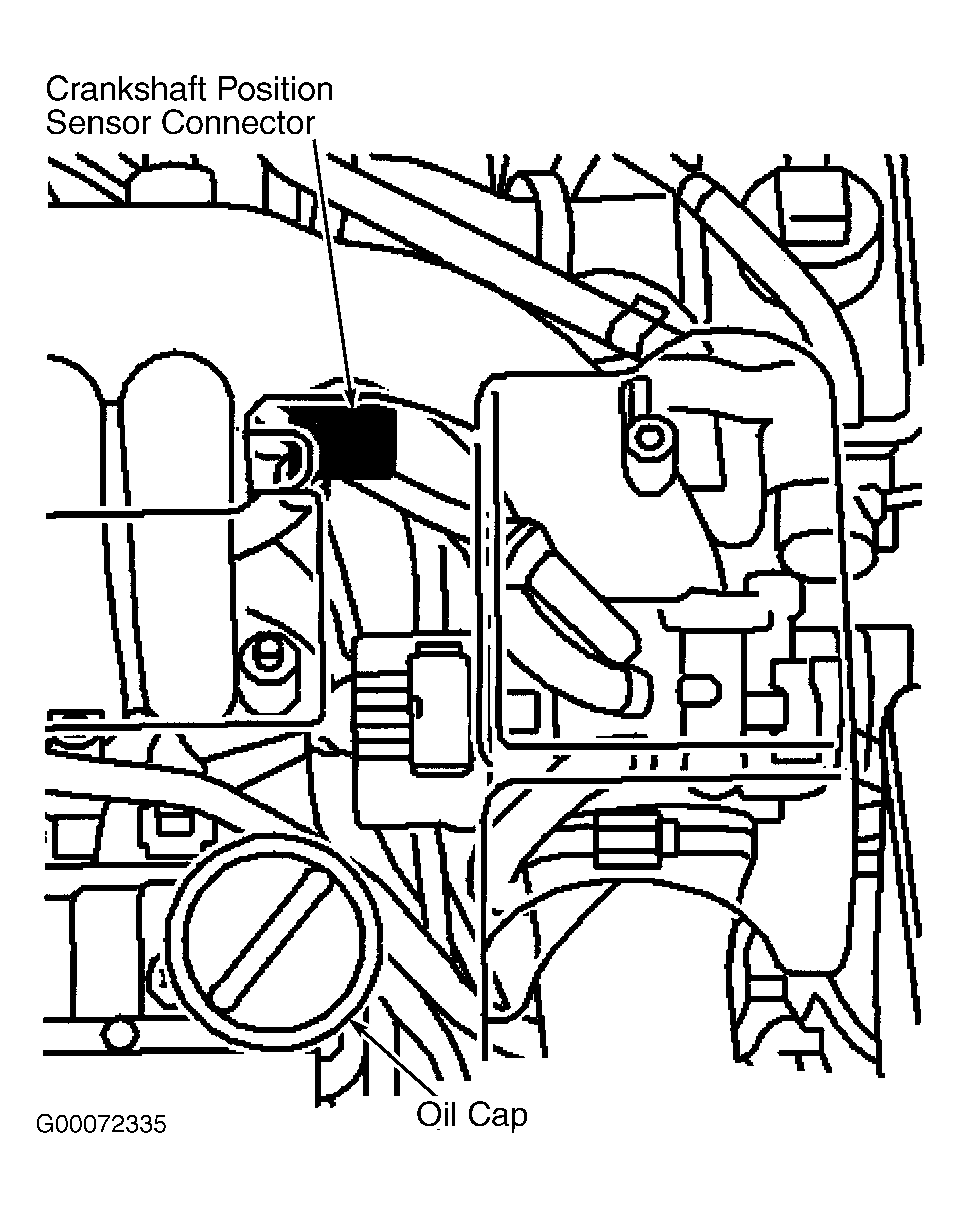

Fig 6: Locating Crankshaft Position Sensor Connector (9-5 - 3.0L)

G00072335

Courtesy of SAAB-SCANIA OF AMERICA, INC.

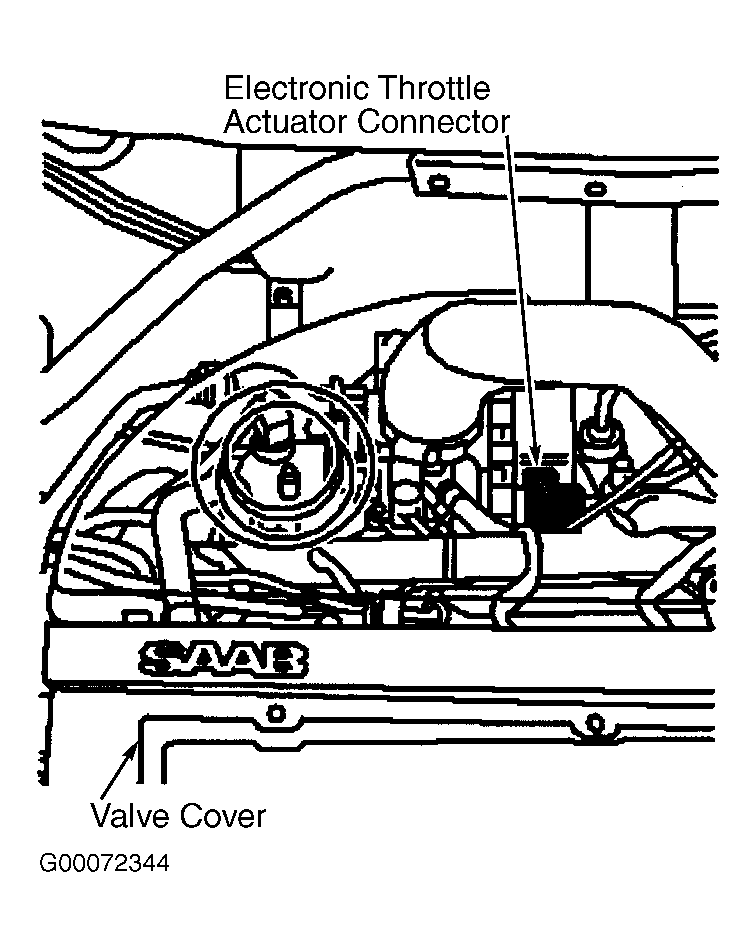

Fig 7: Locating Electronic Throttle Actuator Connector (9-3)

G00072344

Courtesy of SAAB-SCANIA OF AMERICA, INC.

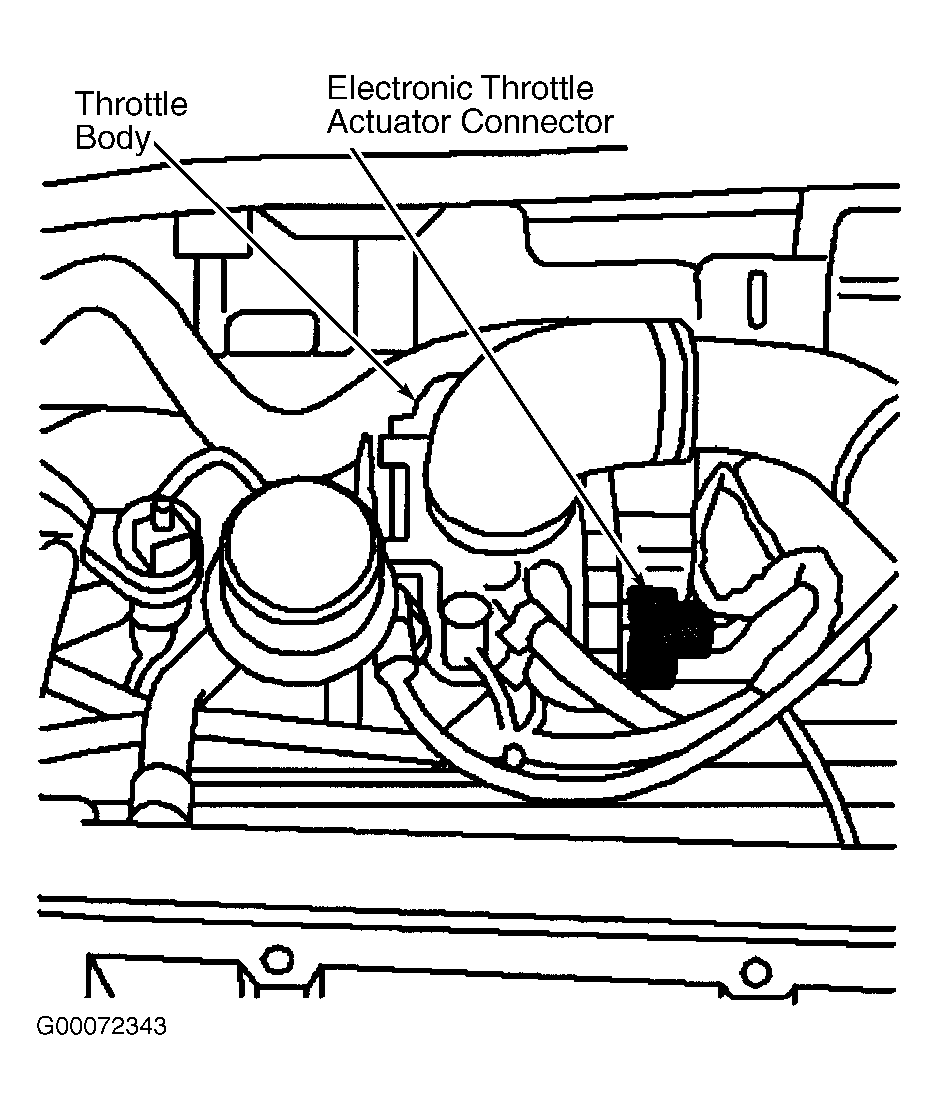

Fig 8: Locating Electronic Throttle Actuator Connector (9-5 - 2.3L)

G00072343

Courtesy of SAAB-SCANIA OF AMERICA, INC.

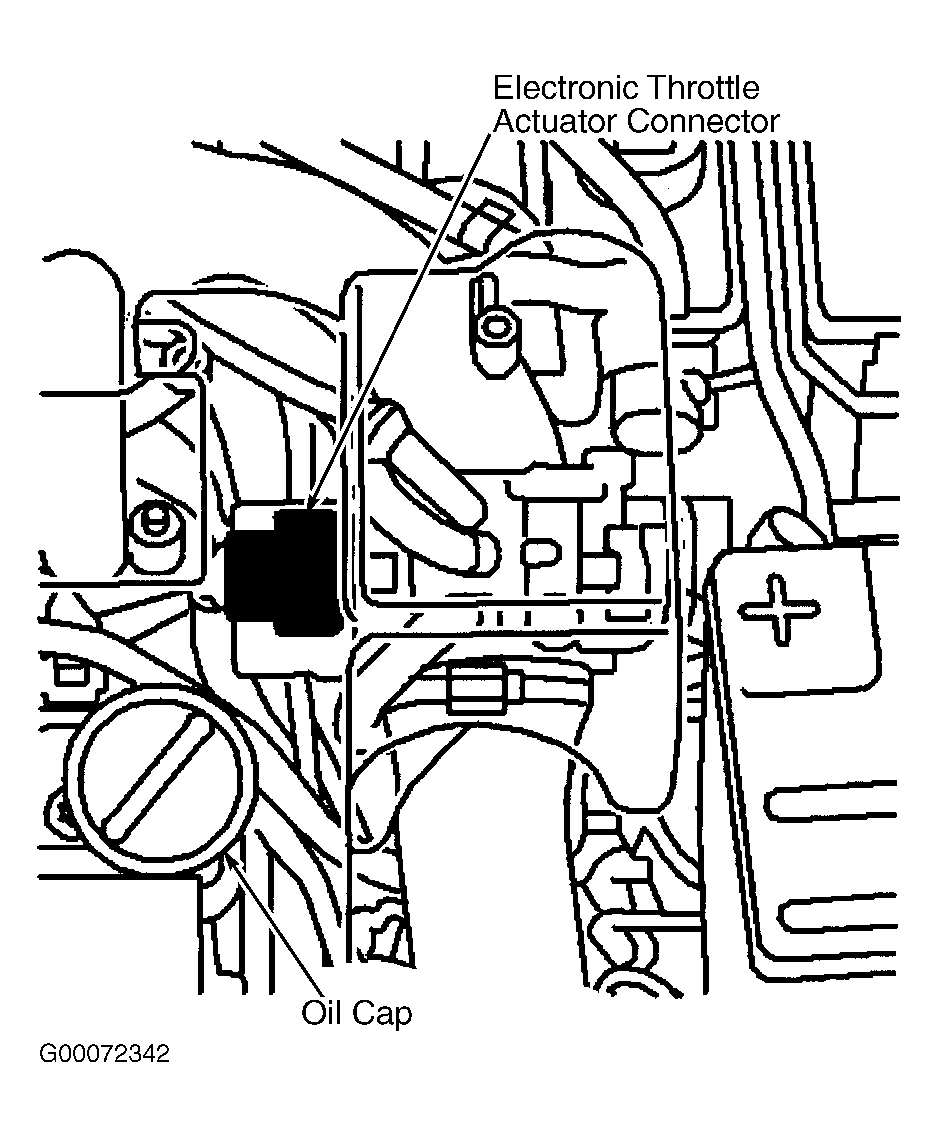

Fig 9: Locating Electronic Throttle Actuator Connector (9-5 - 3.0L)

G00072342

Courtesy of SAAB-SCANIA OF AMERICA, INC.

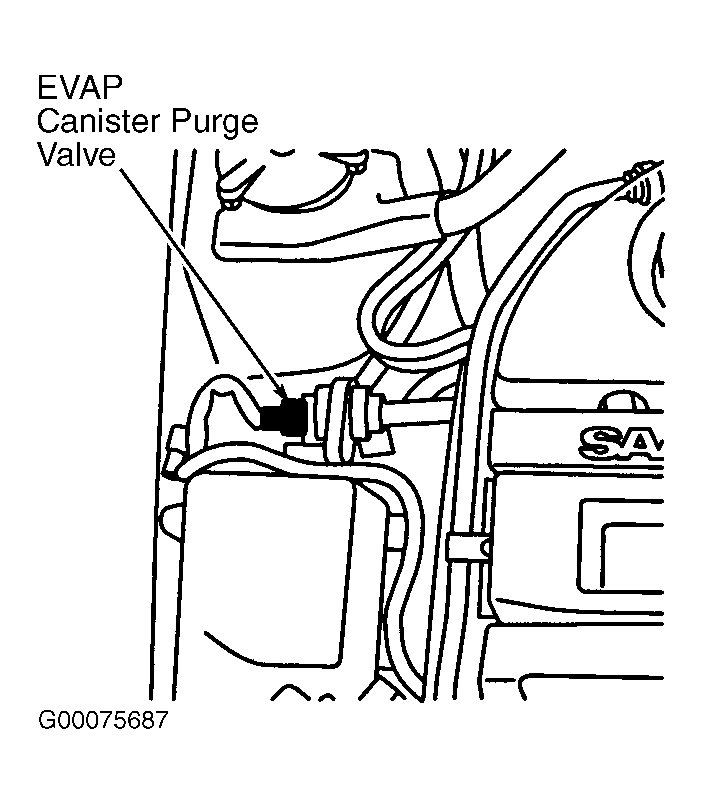

Fig 10: Locating EVAP Canister Purge Valve (9-3)

G00075687

Courtesy of SAAB-SCANIA OF AMERICA, INC.

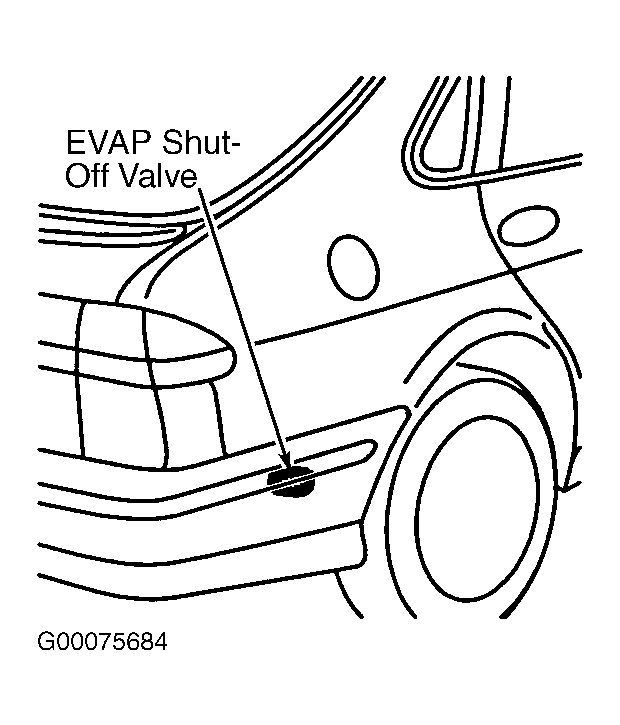

Fig 11: Locating EVAP Shut-Off Valve (9-3)

G00075684

Courtesy of SAAB-SCANIA OF AMERICA, INC.

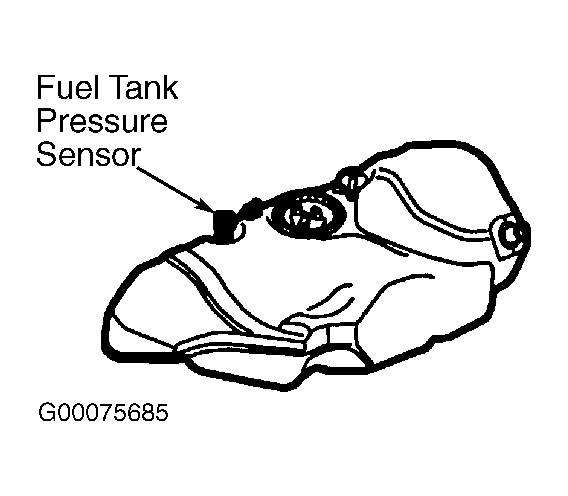

Fig 12: Locating Fuel Tank Pressure Sensor (9-3)

G00075685

Courtesy of SAAB-SCANIA OF AMERICA, INC.

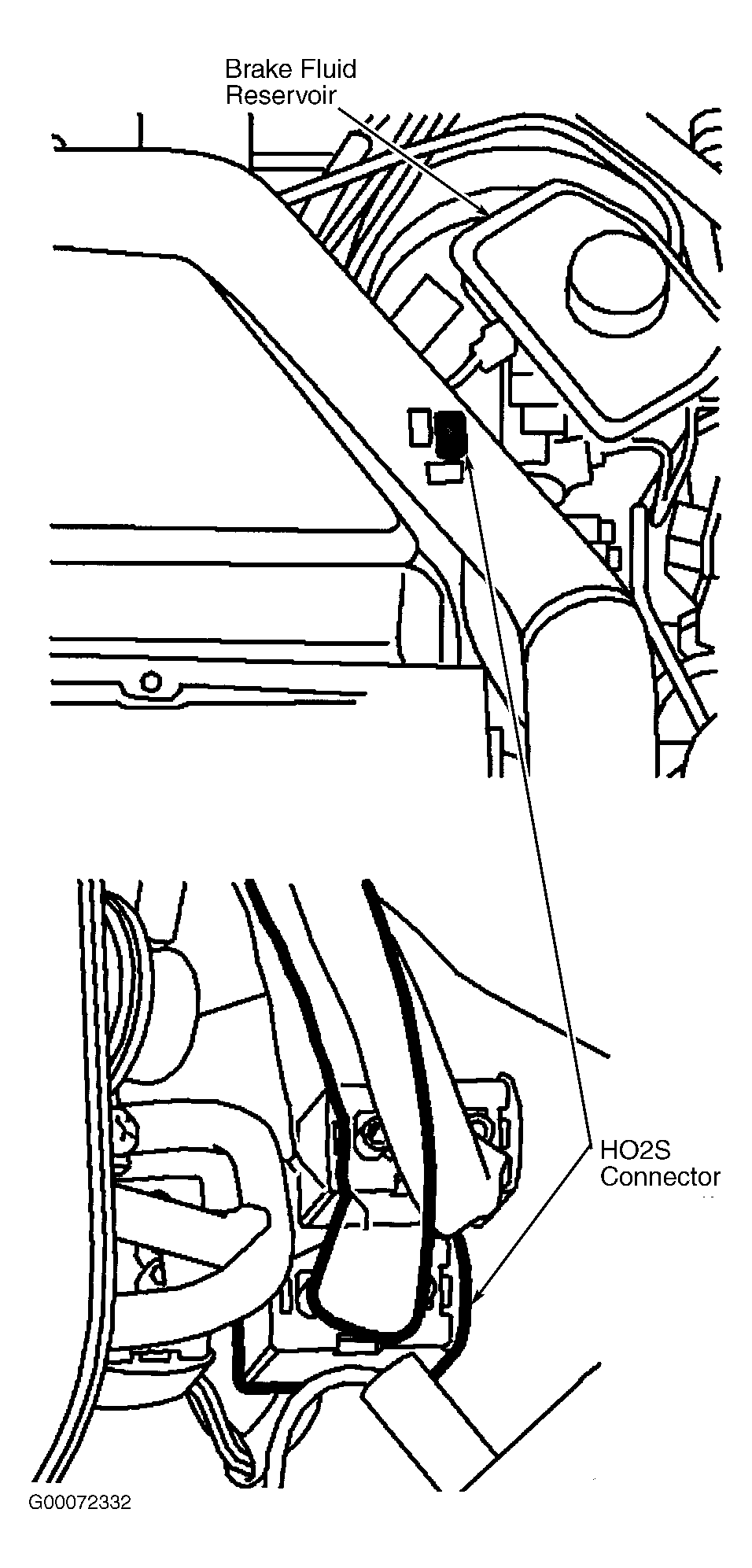

Fig 13: Locating Primary Heated Oxygen Sensor Connector (9-3)

G00072332

Courtesy of SAAB-SCANIA OF AMERICA, INC.

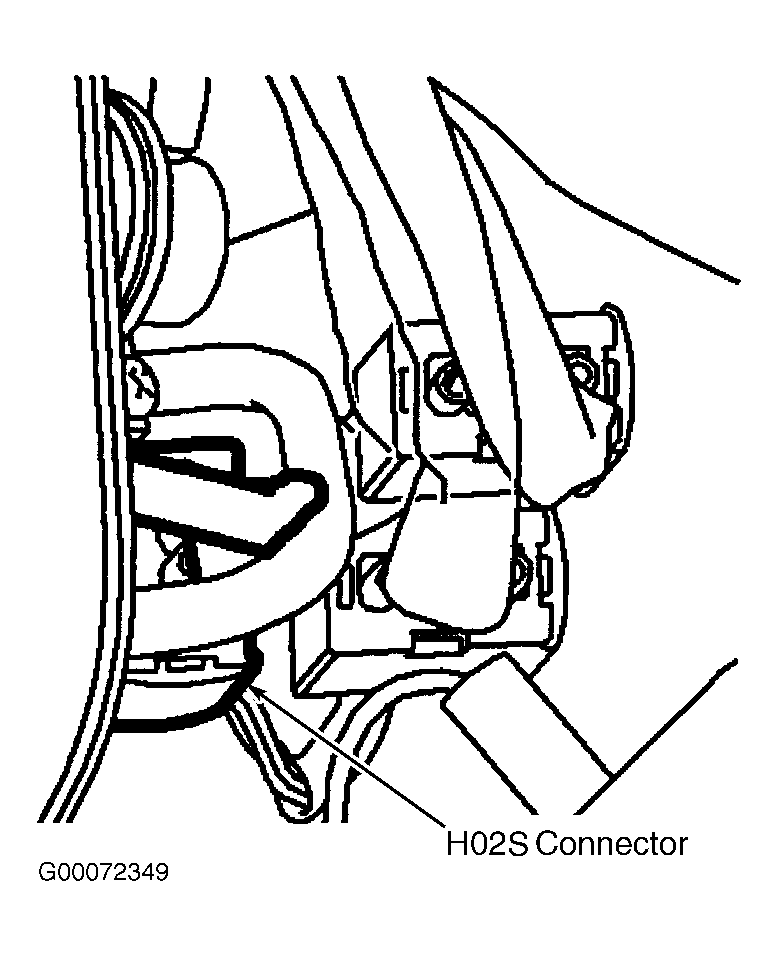

Fig 14: Locating Secondary Heated Oxygen Sensor Connector (9-3)

G00072349

Courtesy of SAAB-SCANIA OF AMERICA, INC.

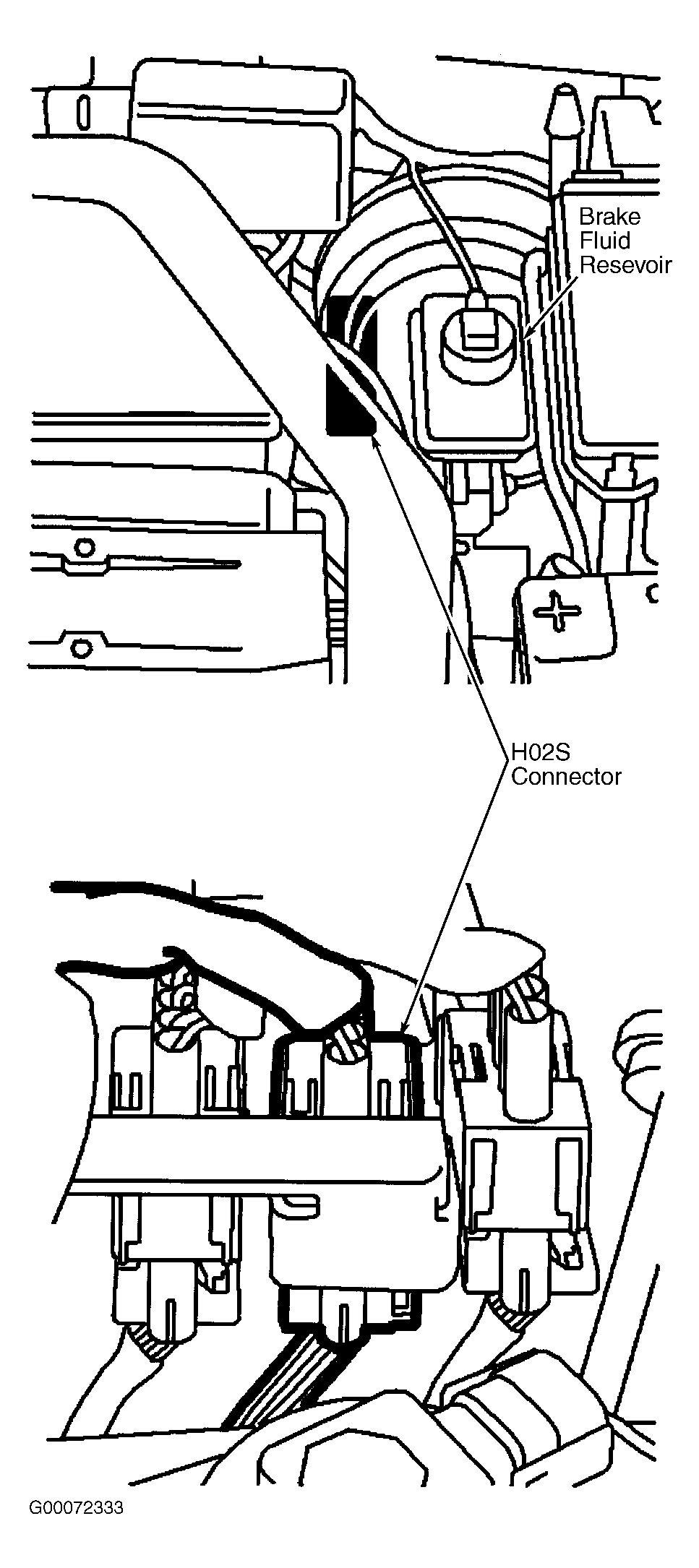

Fig 15: Locating Primary Heated Oxygen Sensor Connector (9-5)

G00072333

Courtesy of SAAB-SCANIA OF AMERICA, INC.

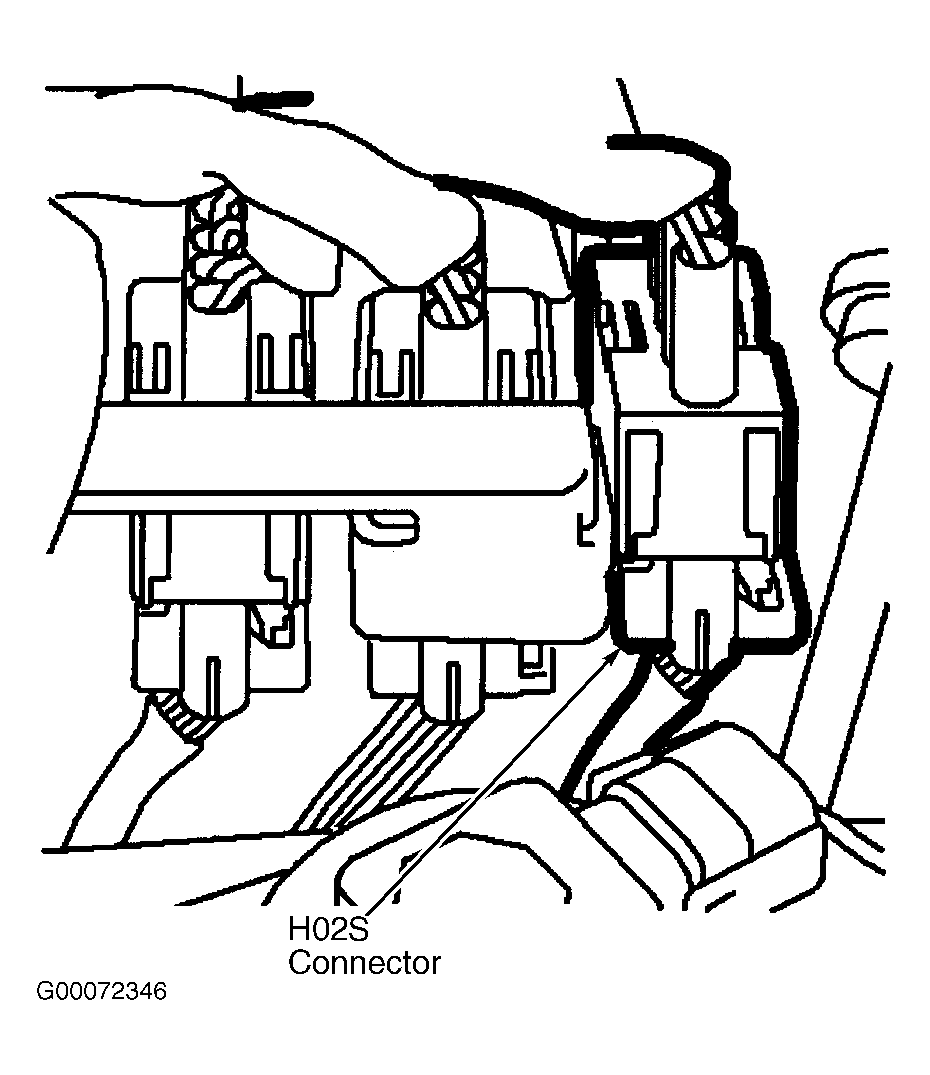

Fig 16: Locating Secondary Heated Oxygen Sensor Connector (9-5)

G00072346

Courtesy of SAAB-SCANIA OF AMERICA, INC.

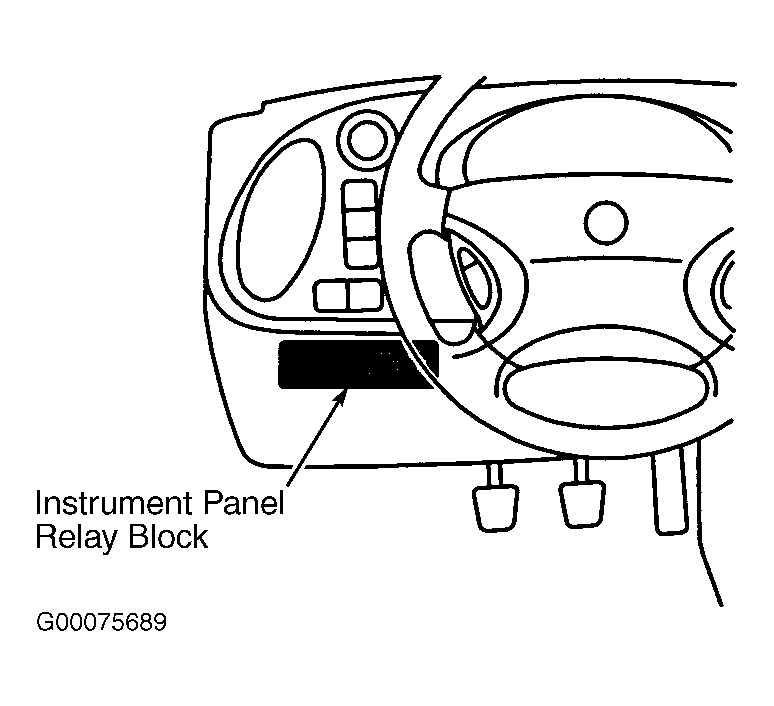

Fig 17: Locating Instrument Panel Relay Block (All Models)

G00075689

Courtesy of SAAB-SCANIA OF AMERICA, INC.

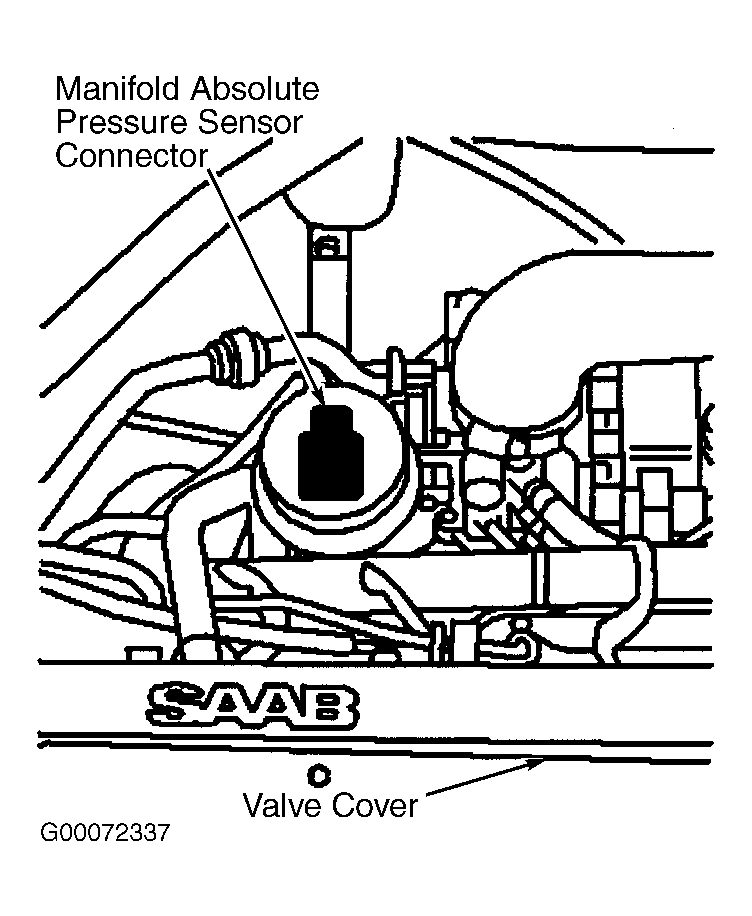

Fig 18: Locating Manifold Absolute Pressure Sensor Connector (9-3 & 9-5 - 2.3L)

G00072337

Courtesy of SAAB-SCANIA OF AMERICA, INC.

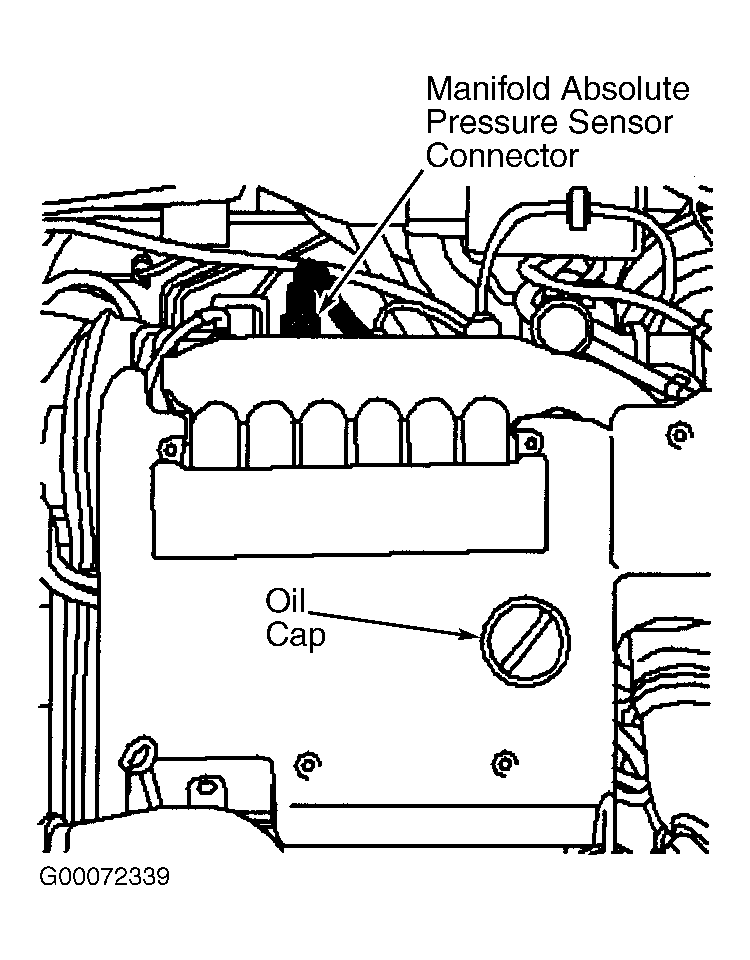

Fig 19: Locating Manifold Absolute Pressure Sensor Connector (9-5 - 3.0L)

G00072339

Courtesy of SAAB-SCANIA OF AMERICA, INC.

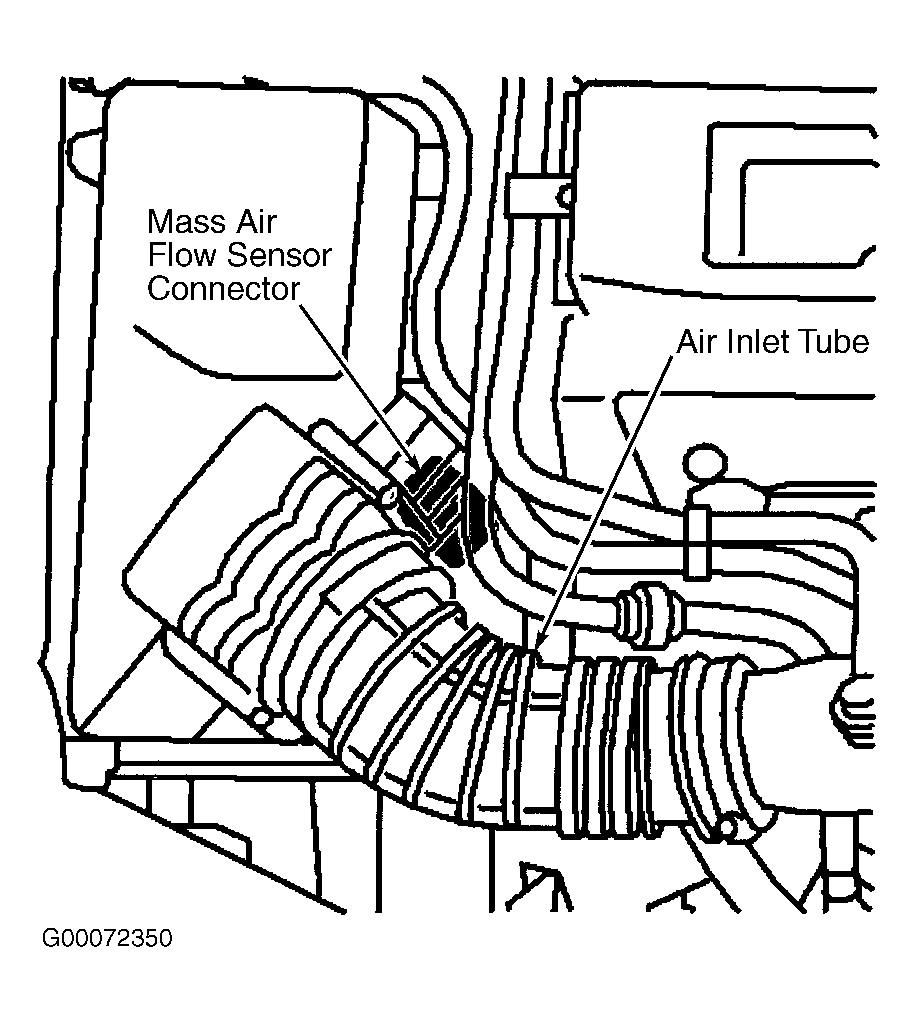

Fig 20: Locating Mass Air Flow Sensor Connector (9-3)

G00072350

Courtesy of SAAB-SCANIA OF AMERICA, INC.

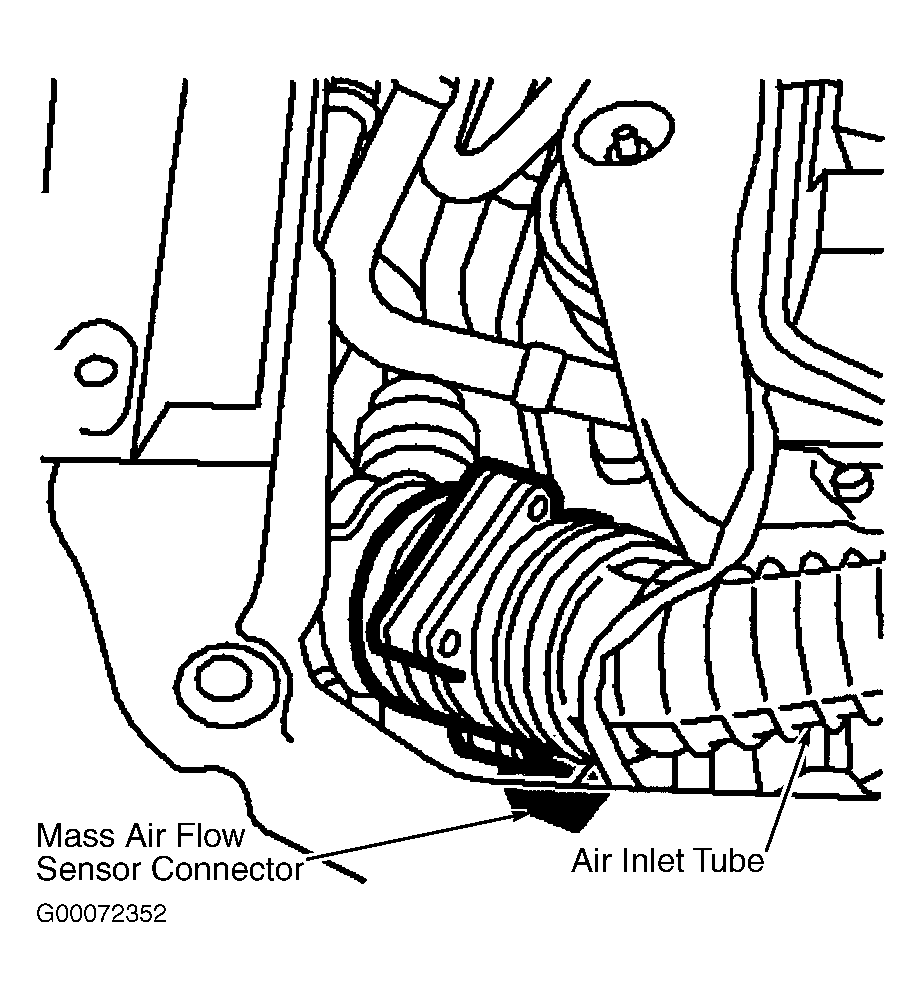

Fig 21: Locating Mass Air Flow Sensor Connector (9-5 - 2.3L)

G00072352

Courtesy of SAAB-SCANIA OF AMERICA, INC.

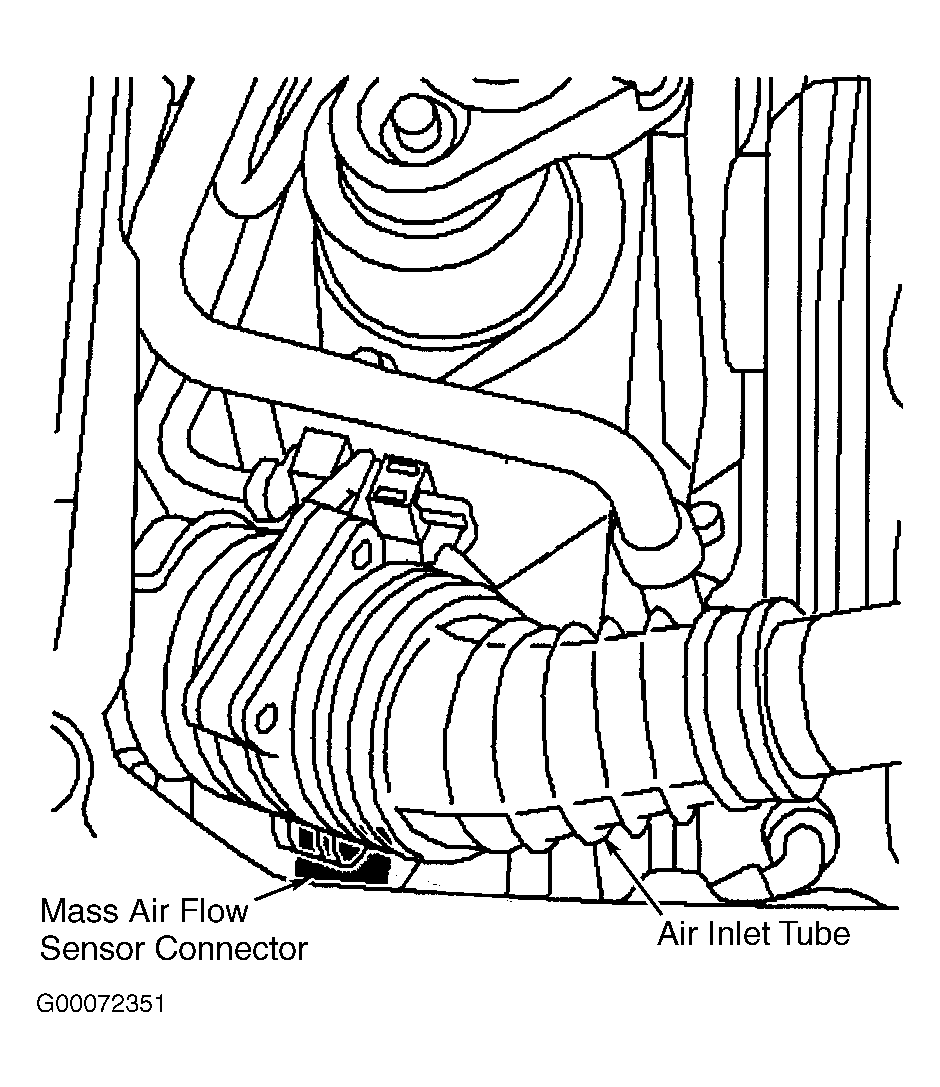

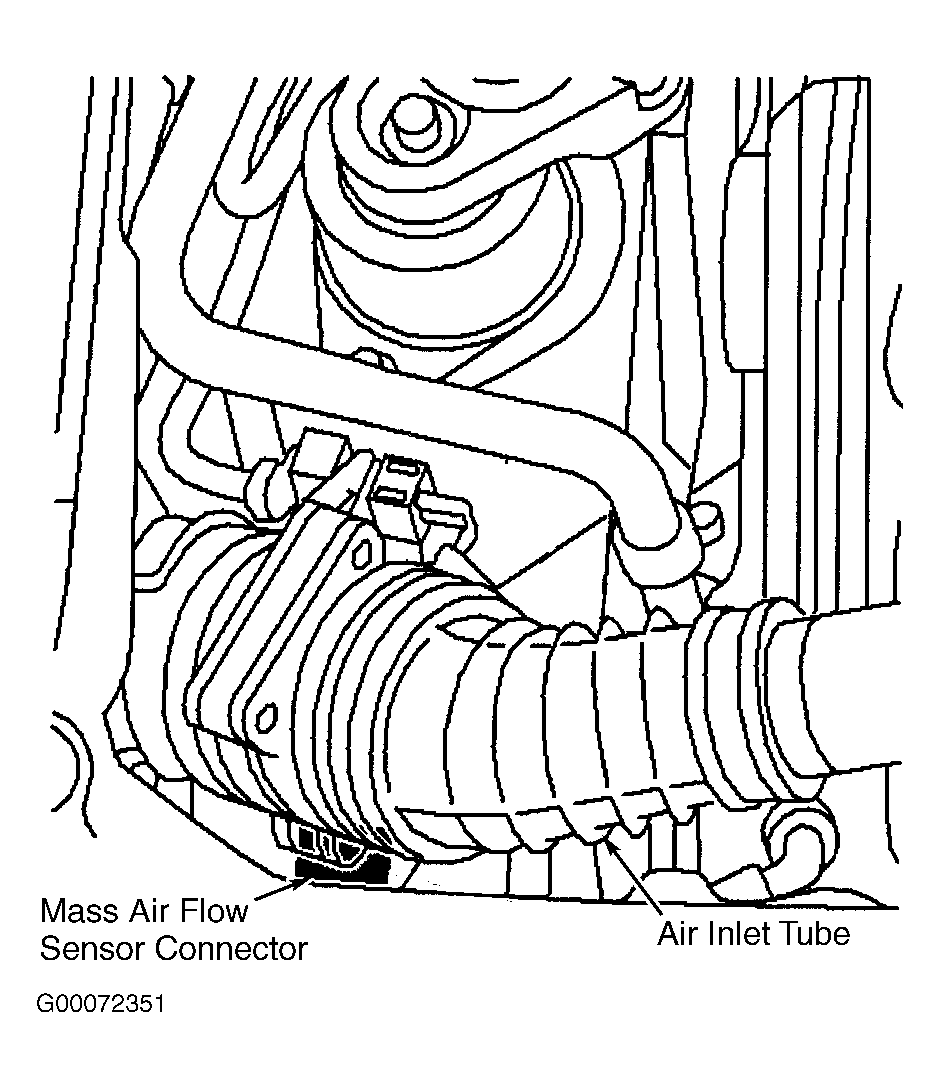

Fig 22: Locating Mass Air Flow Sensor Connector (9-5 - 3.0L)

G00072351

Courtesy of SAAB-SCANIA OF AMERICA, INC.
