DTC P0140: O2S Circuit No Activity Detected Sensor 2: Notes

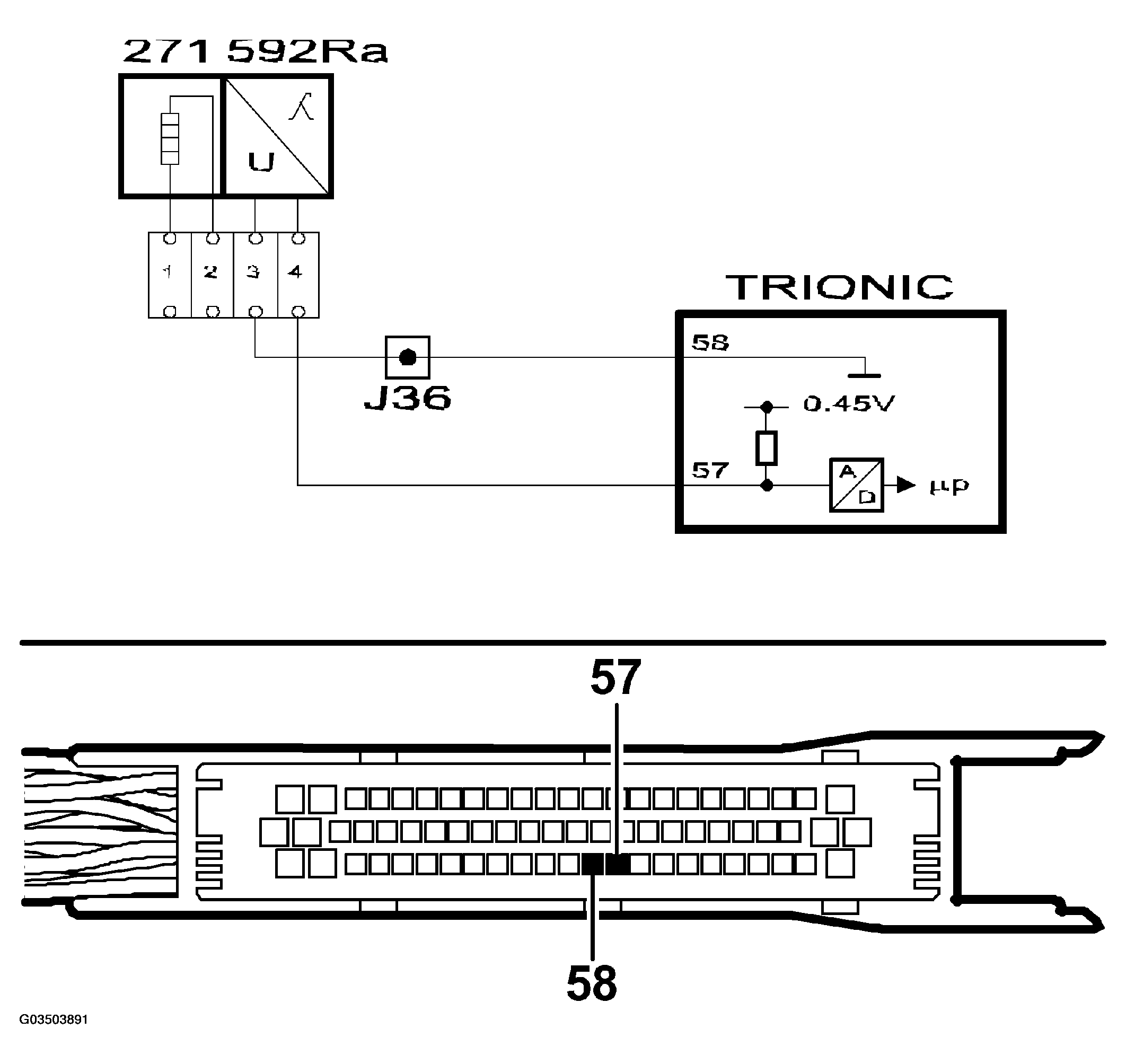

Fig 1: Identifying O2S Circuit Diagram - No Activity Detected - Sensor 2
G03503891Courtesy of SAAB-SCANIA OF AMERICA, INC.
