Control Module (Late; 9440): Adjustment-Replacement: DSM: Fitting

IMPORTANT: Take care when plugging in the connector so as not to damage or press out the pins/sleeves in the connector. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION .

Plug in the DSM.
Position the DSM.

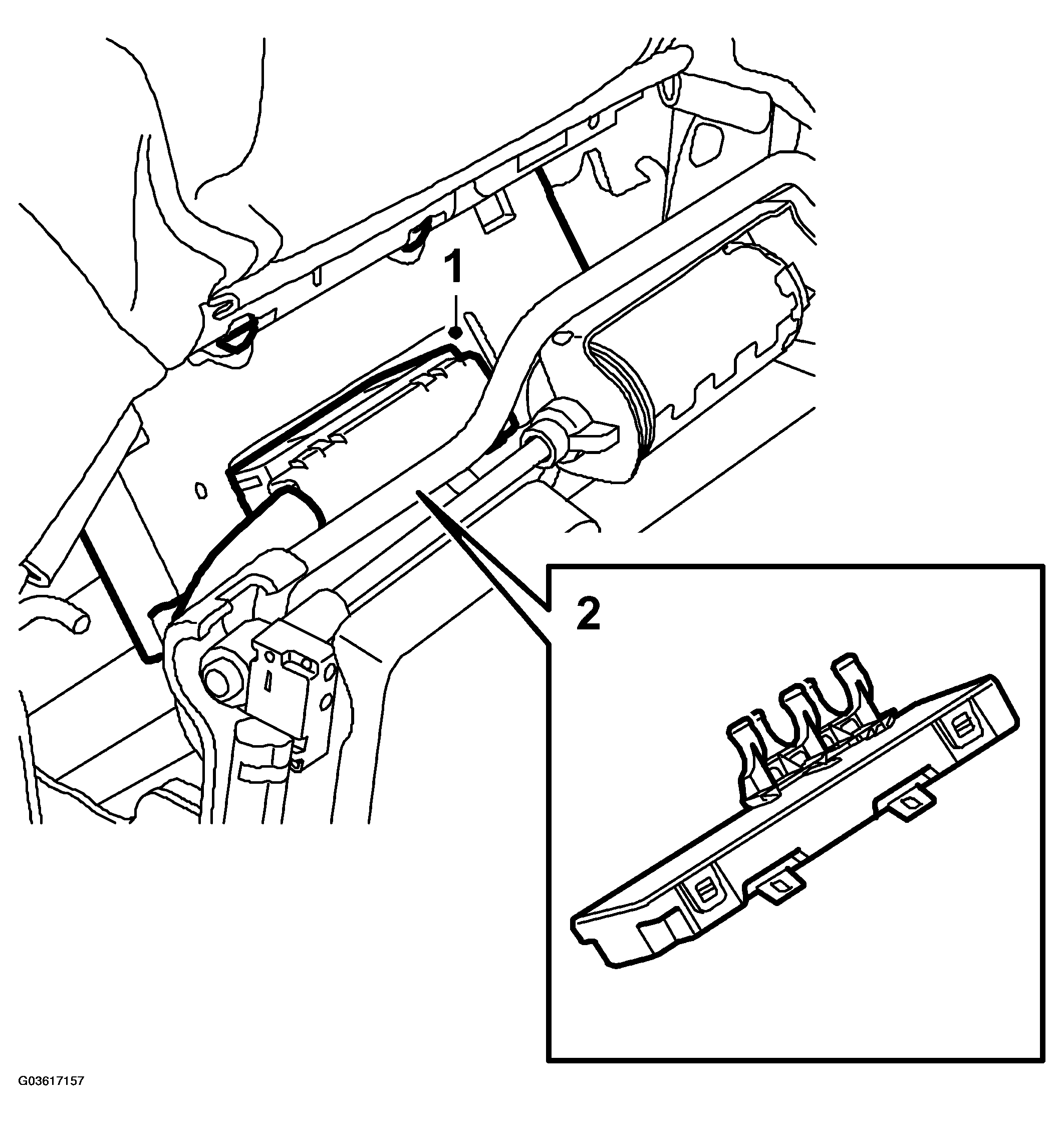

Fig 1: Illustration For Step 1 And 2
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fit the clip to the DSM.
Secure the clip fit the DSM.
Fit the upholstery strip to the front edge of the seat base.

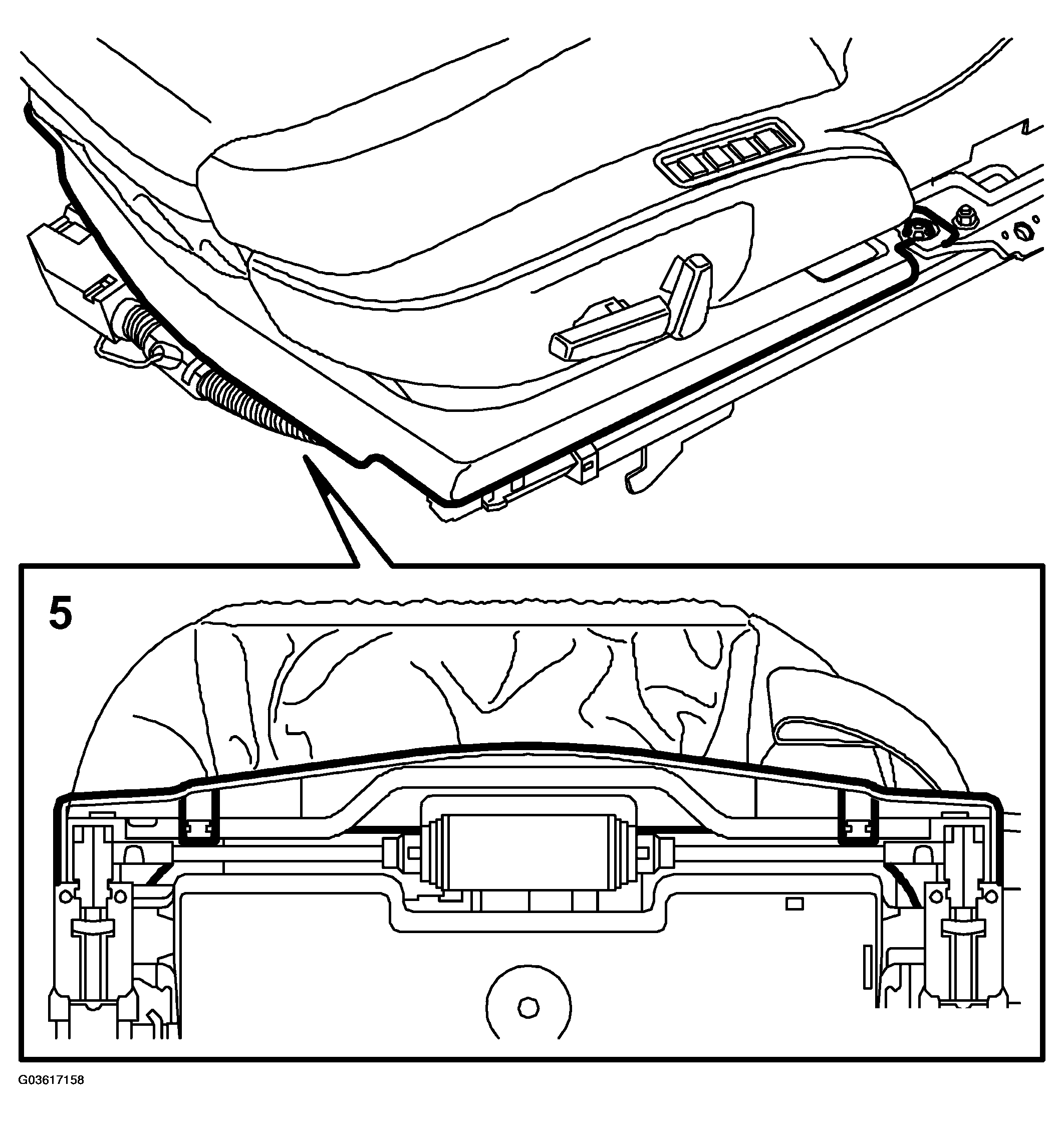

Fig 2: Illustration For Step 5
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fit the front seat cowl.
Fit the front seat.

Perform the procedure for after fitting a control module.
