To remove
IMPORTANT:
To minimize any remaining fuel pressure, remove the fuel pump fuse no. 32 while the engine is idling. Turn off the ignition once the engine has stopped.
Fit fuse no. 32.

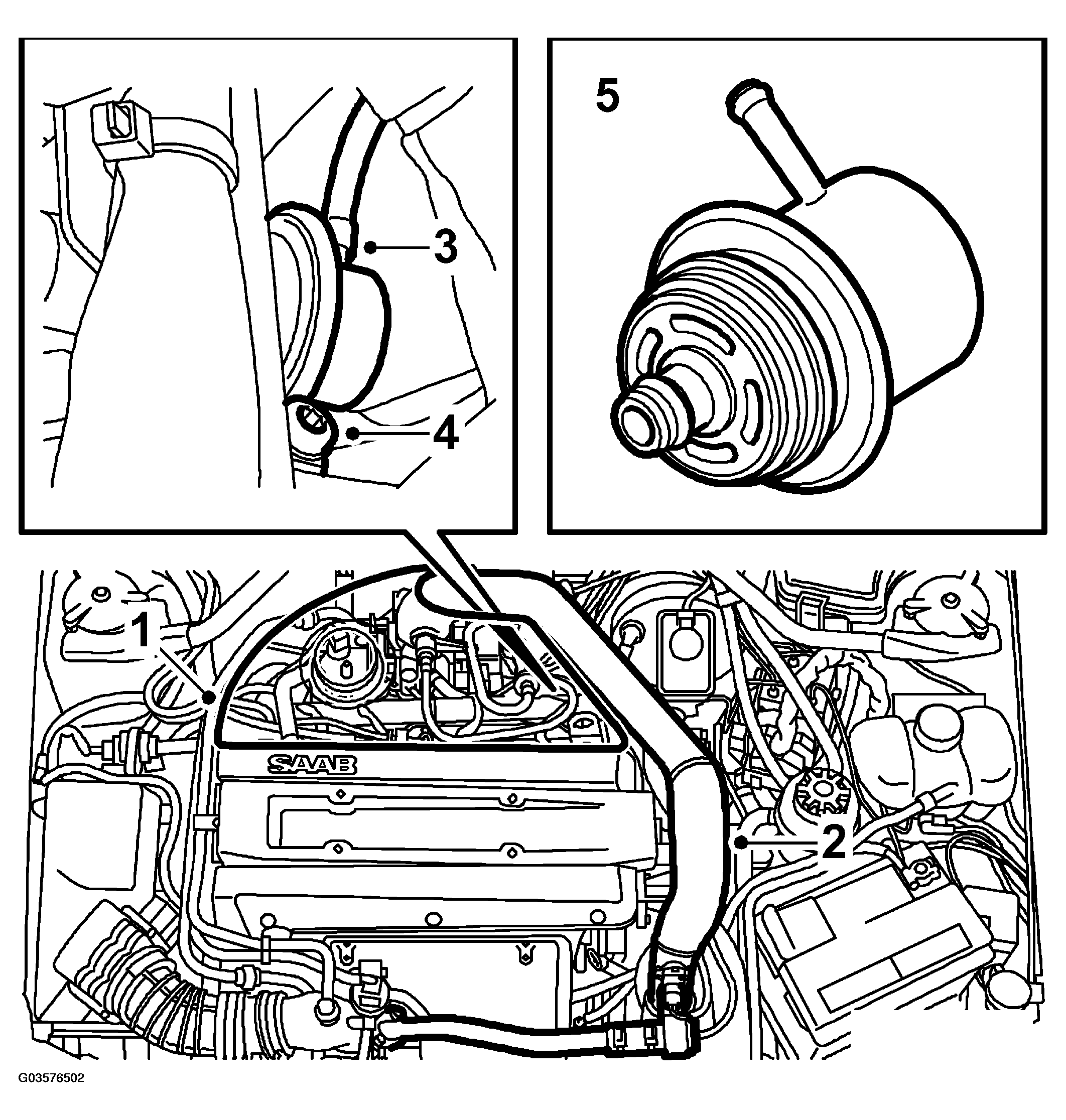

- Remove the top engine cover.
- Remove the charge air pipe by:
- unplugging the connector from the pressure/temperature sensor
- undoing the screw securing the bypass pipe to the turbo unit inlet pipe.
- undoing the hose clips on the throttle body and charge air hose
- undoing the screw securing the charge air pipe to the cylinder head attachment.
- Man: Undo the venturi hose from the charge air pipe.
- Detach the vacuum hose from the fuel pressure regulator.
- Undo the screw and open the clamp.
- Work loose the fuel pressure regulator.
