To remove

  1. Carefully loosen the cap on the expansion tank (to release any pressure) and then screw it on again.

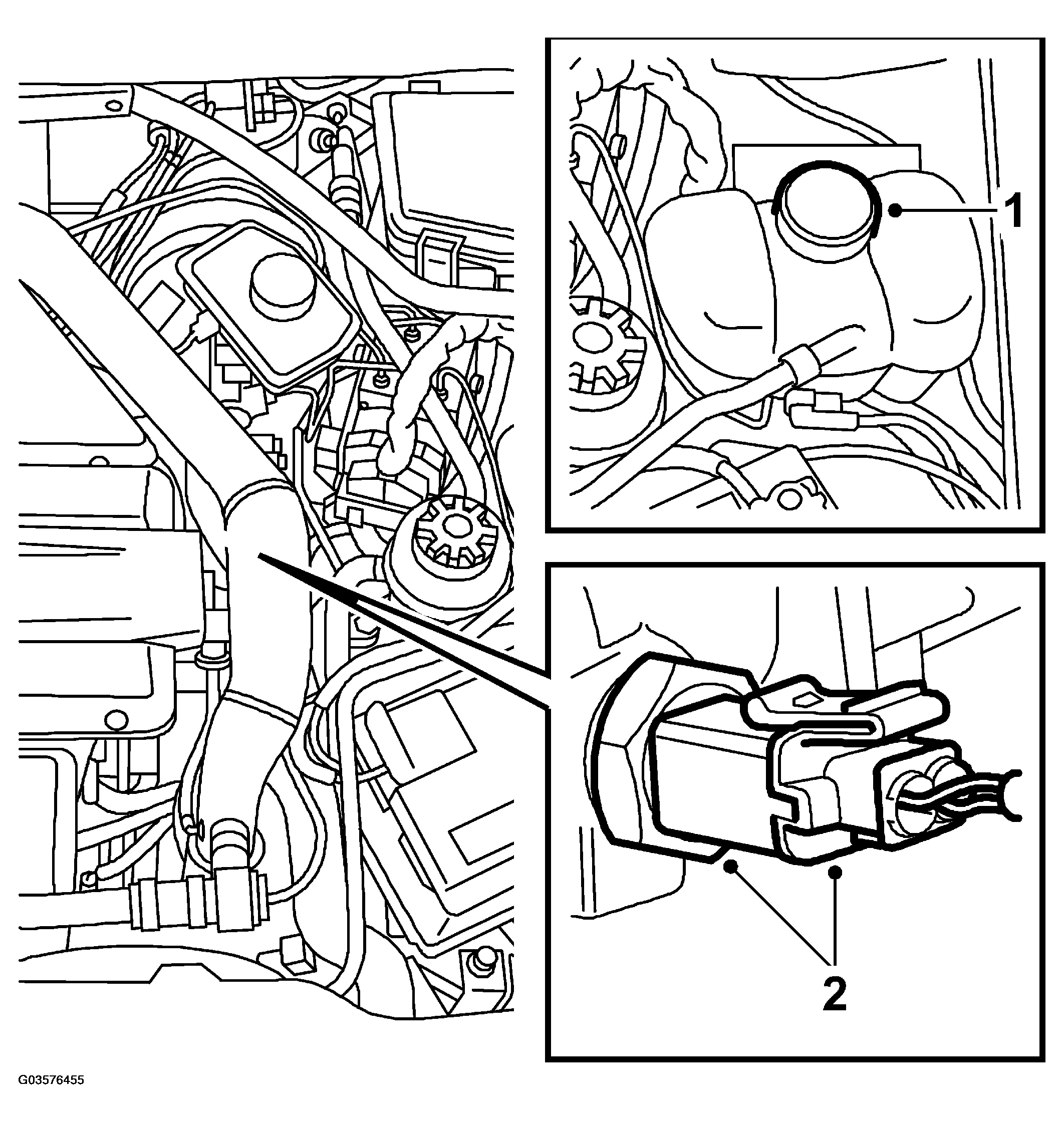

    Fig 1: Illustration For Steps 1-2
    G03576455Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Unplug the connector and remove the sensor using a 19 mm dog-leg spanner.
