To remove
- Open the bonnet.
- Detach the main fuse box and move it aside.
- Separate the connector, press in its catch and remove it from the bracket.
- Snip the cable tie on the suspension strut tower.
- Unplug the level sensor's connector. Also detach the expansion tank and move it aside.
- Raise the car and remove the wheel.
Courtesy of SAAB-SCANIA OF AMERICA, INC.

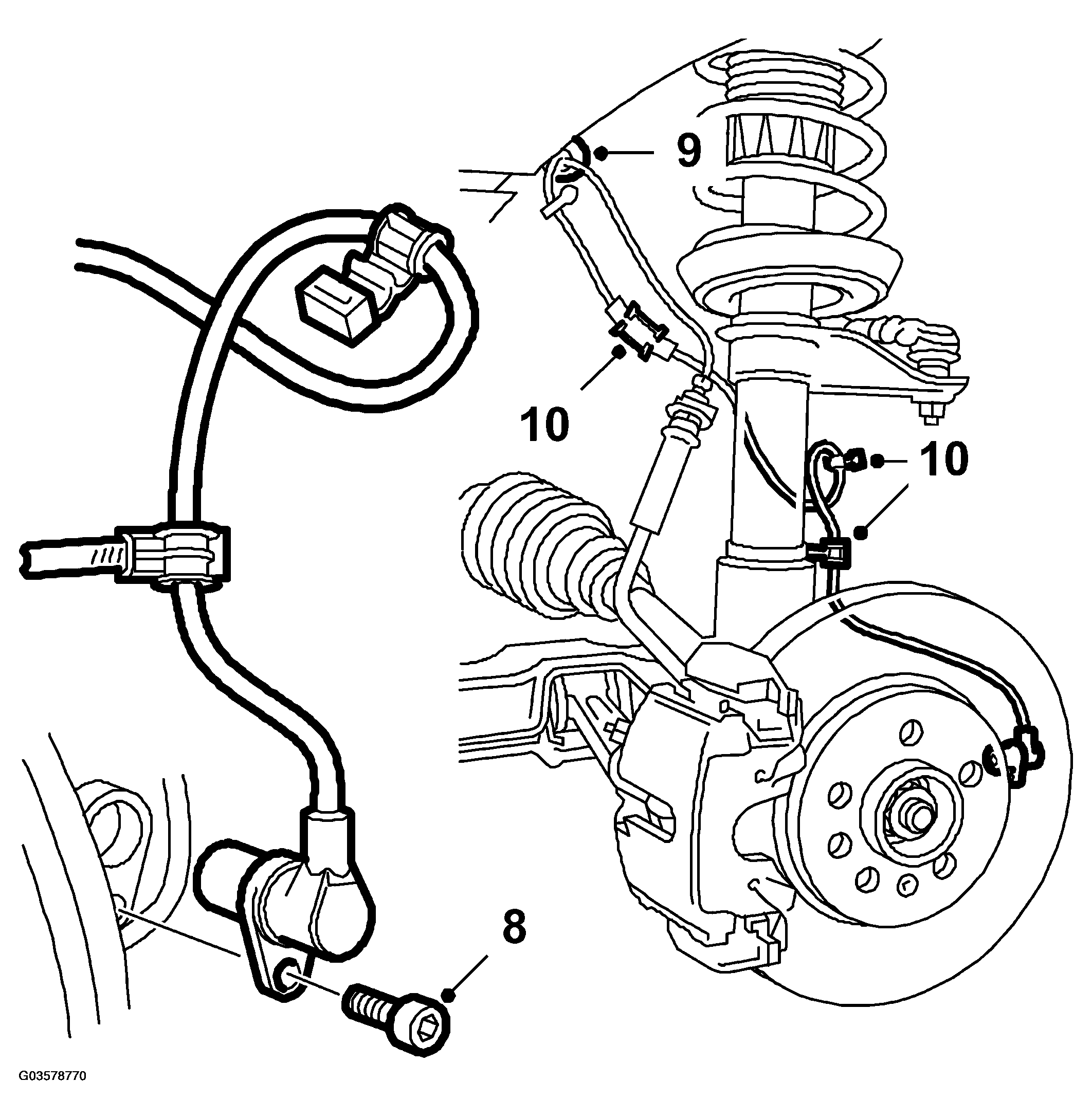

- Clean the area round the wheel sensor using a soft wire brush.
- Undo the wheel sensor retaining bolt and remove the wheel sensor.
- Remove the grommet and withdraw the lead.
- Detach the lead from the clips and lift out the sensor.
