To fit

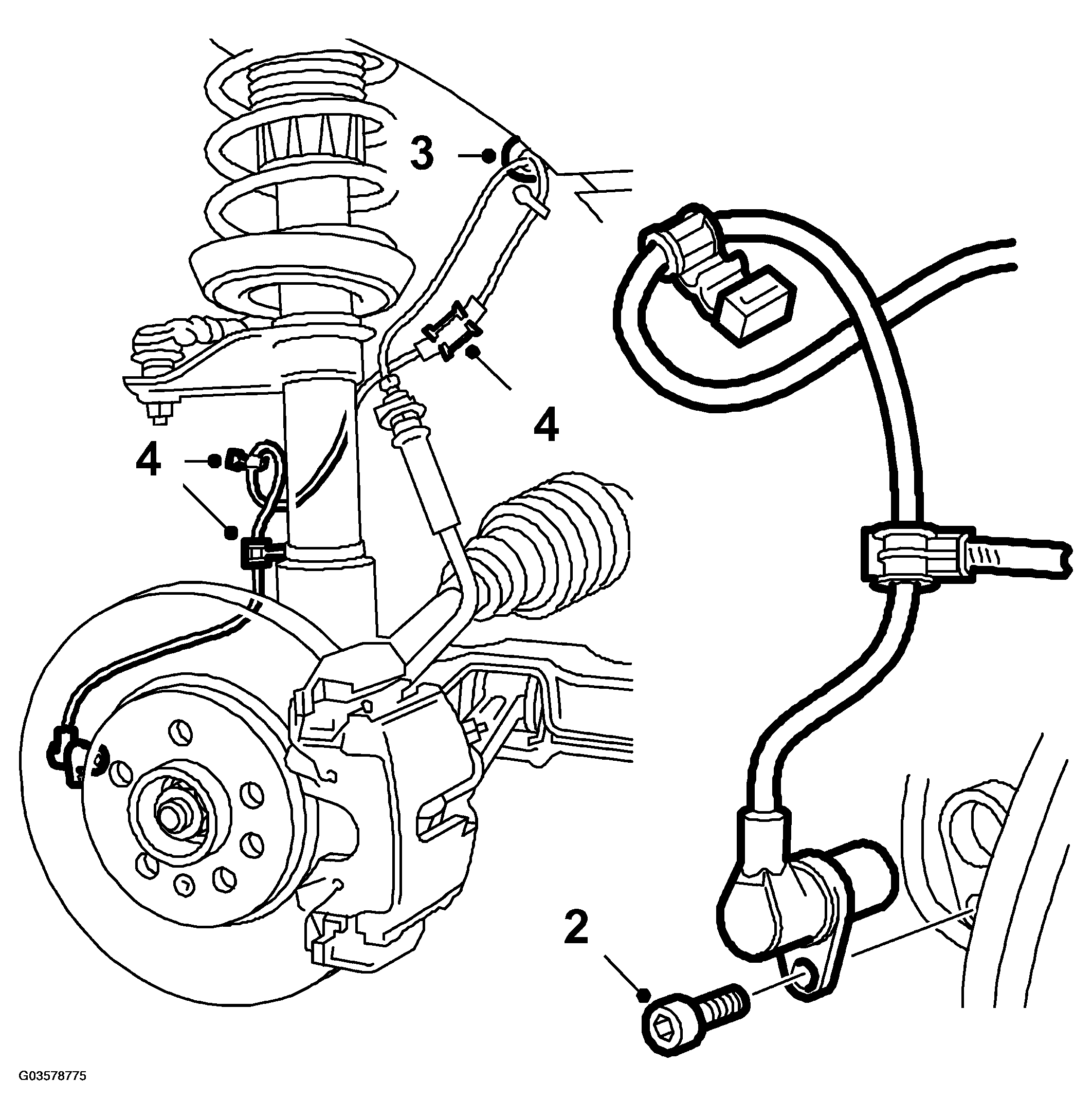

Fig 1: Illustration For Steps 2-4
G03578775Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Insert the lead and press the connector home.
  2. Fit the wheel sensor in its holder and tighten the retaining bolt.
  3. Smear the rubber grommet with a soap solution and fit it in lace.
  4. Press the lead into the retaining clips.
  5. Fit the wheel. Lower the car.

    Tightening torque 110 Nm (81 lbf ft)

  6. Plug in the connector.

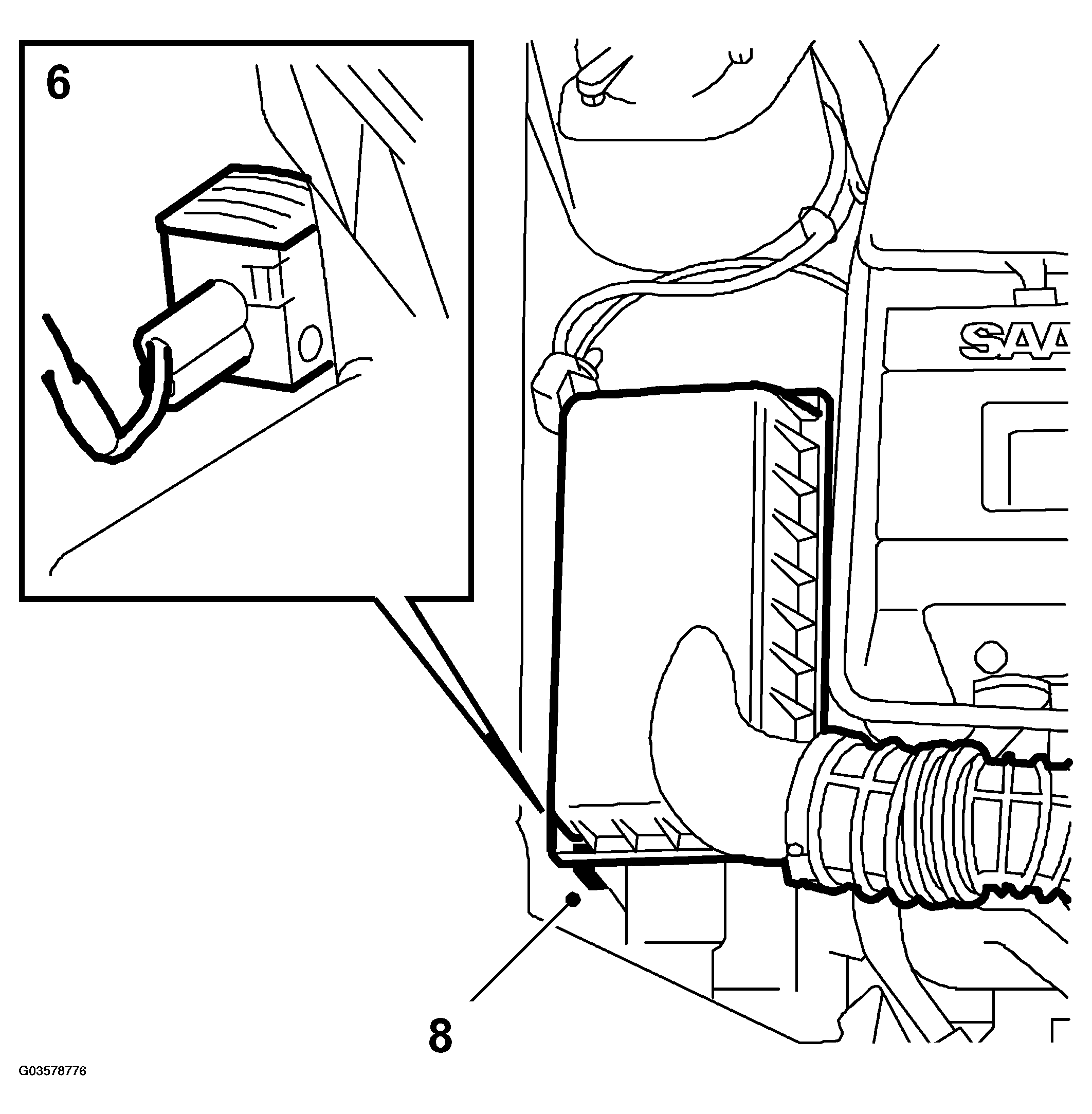

    Fig 2: Illustration For Steps 6 & 8
    G03578776Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. Fit a new cable tie to the air cleaner's attachment point.
  8. Refit the top part of the air cleaner and, if removed earlier, the mass air flow sensor.
