Technical Description: Function: Notes

  1. Braking force
  2. Stable
  3. Unstable
  4. Slip

The ABS system provides optimum braking without any loss of directional stability.

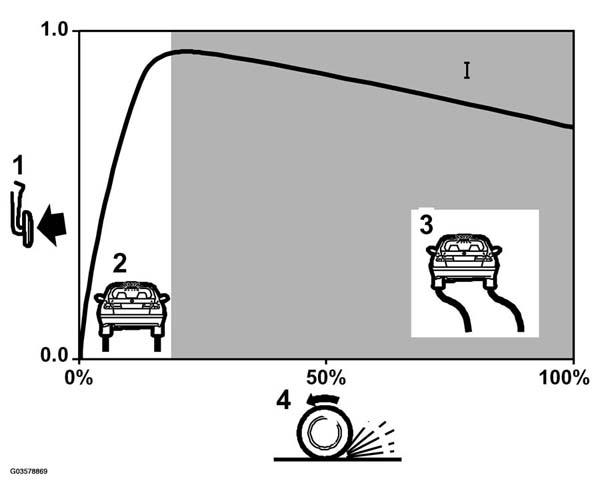

Fig 1: Braking Force/Slip - Graph
G03578869Courtesy of SAAB-SCANIA OF AMERICA, INC.

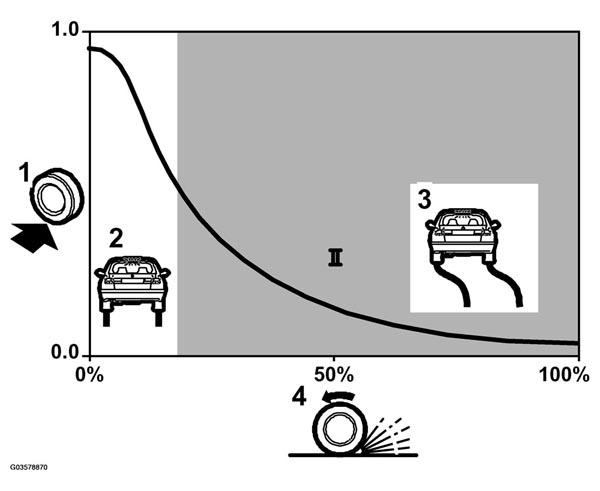

Fig 2: Lateral Force/Slip - Graph
G03578870Courtesy of SAAB-SCANIA OF AMERICA, INC.
