To remove

Carry out actions before removing control module.

1. Remove the battery cover lid.

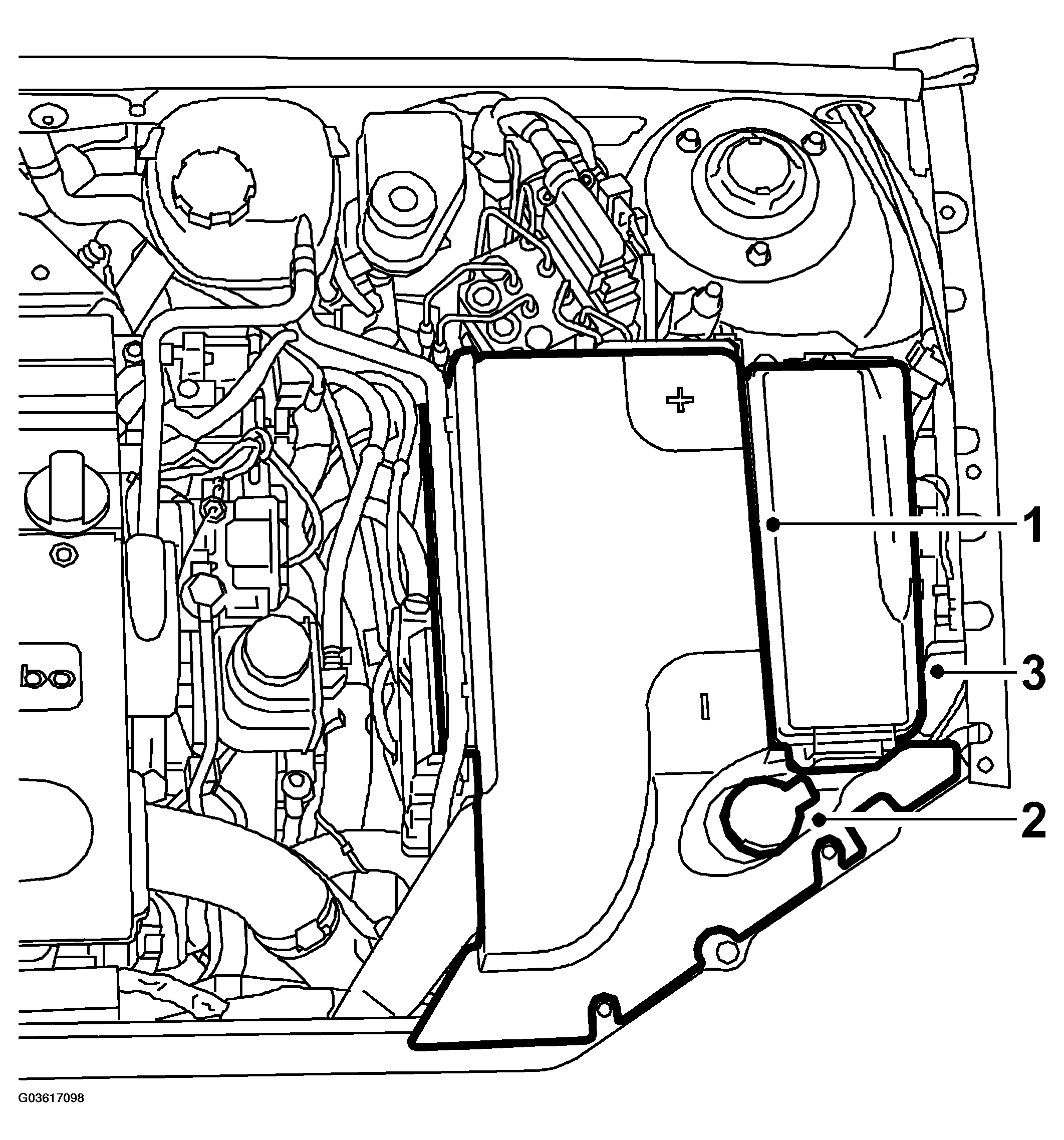

   Fig 1: Illustration For Step 1 To 3

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
2. Remove the filler pipe of the washer reservoir.
3. Remove the main fuse box cover.
4. Remove the nuts.

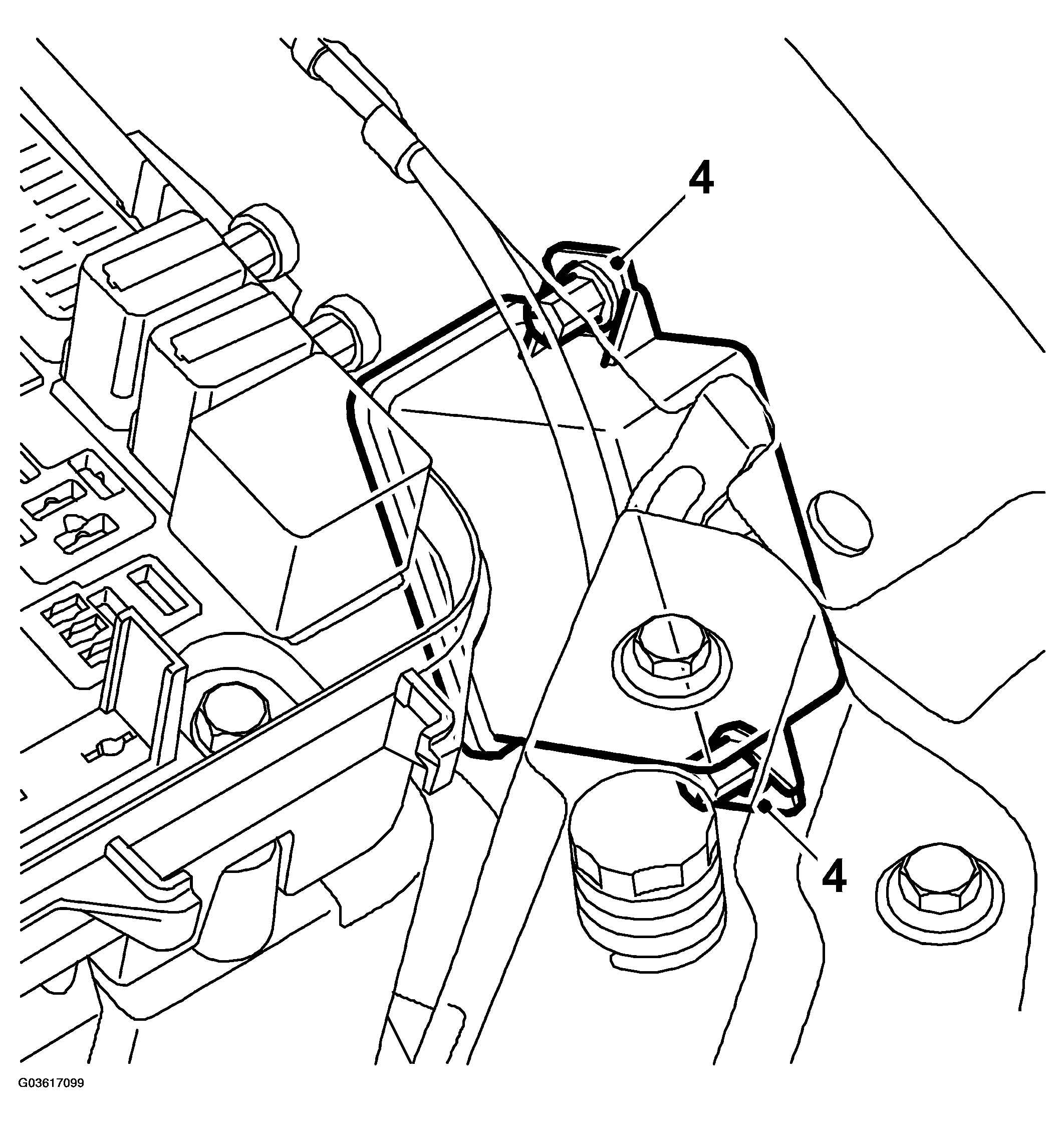

   Fig 2: Illustration For Step 4

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
   IMPORTANT: Take care when releasing the locking mechanism on the connector so as not to damage the connector. Pull the halves straight apart to avoid bending the pins. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION .
5. Lift up the control module and detach the connector.

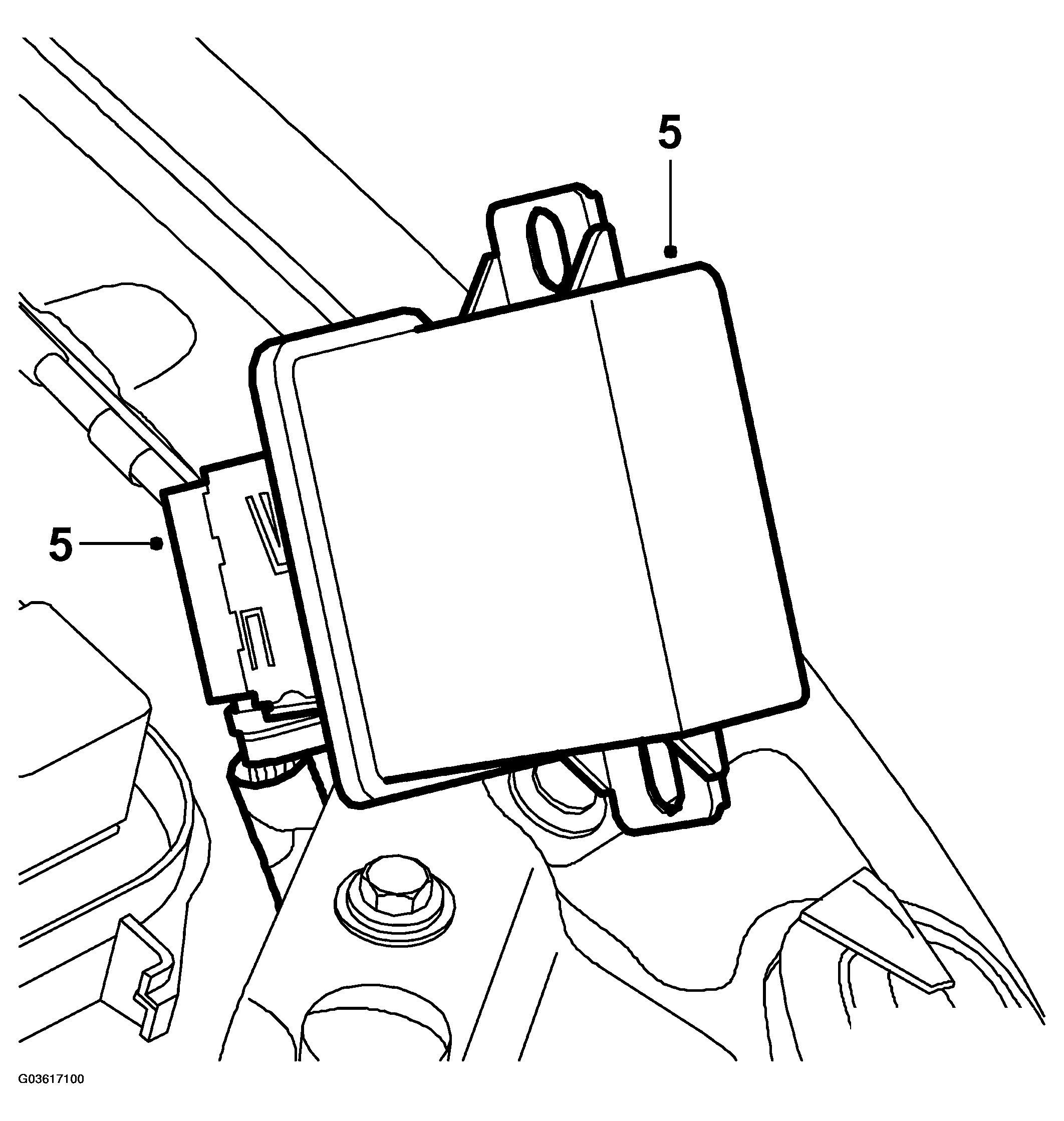

   Fig 3: Illustration For Step 5

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
