Control module, PSG 16 (595)

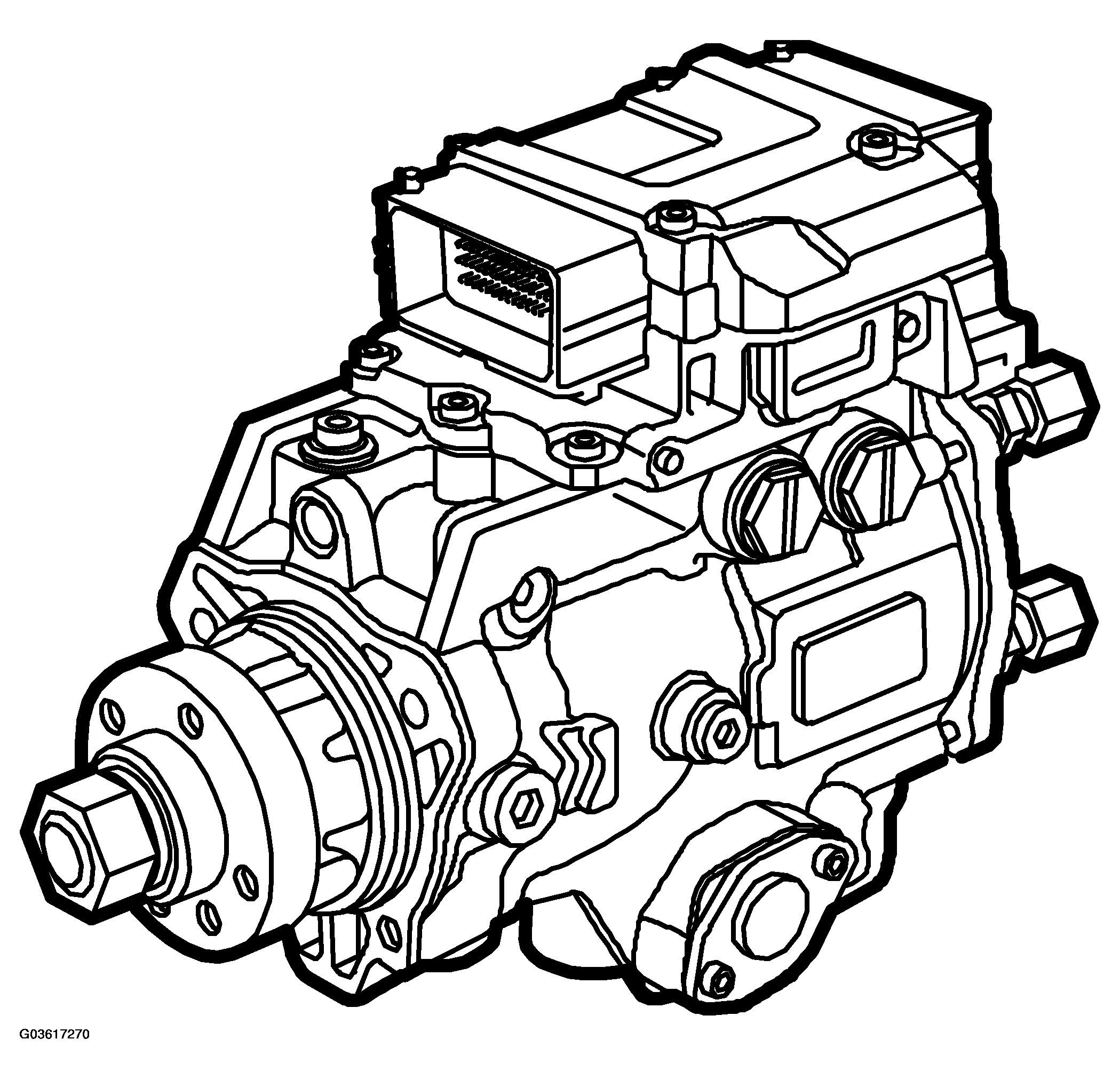

Fig 1: Identifying Control Module, PSG 16 (595)
G03617270Courtesy of SAAB-SCANIA OF AMERICA, INC.
PINS DESCRIPTION

No. of pins   56 on K switch and 56 on M switch
Power supply (+15 circuit) pin no. 16(K)
P-bus (+) pin no. 29(K)
P-bus (-) pin no. 17(K)
