Control module, Trionic T8 (589)

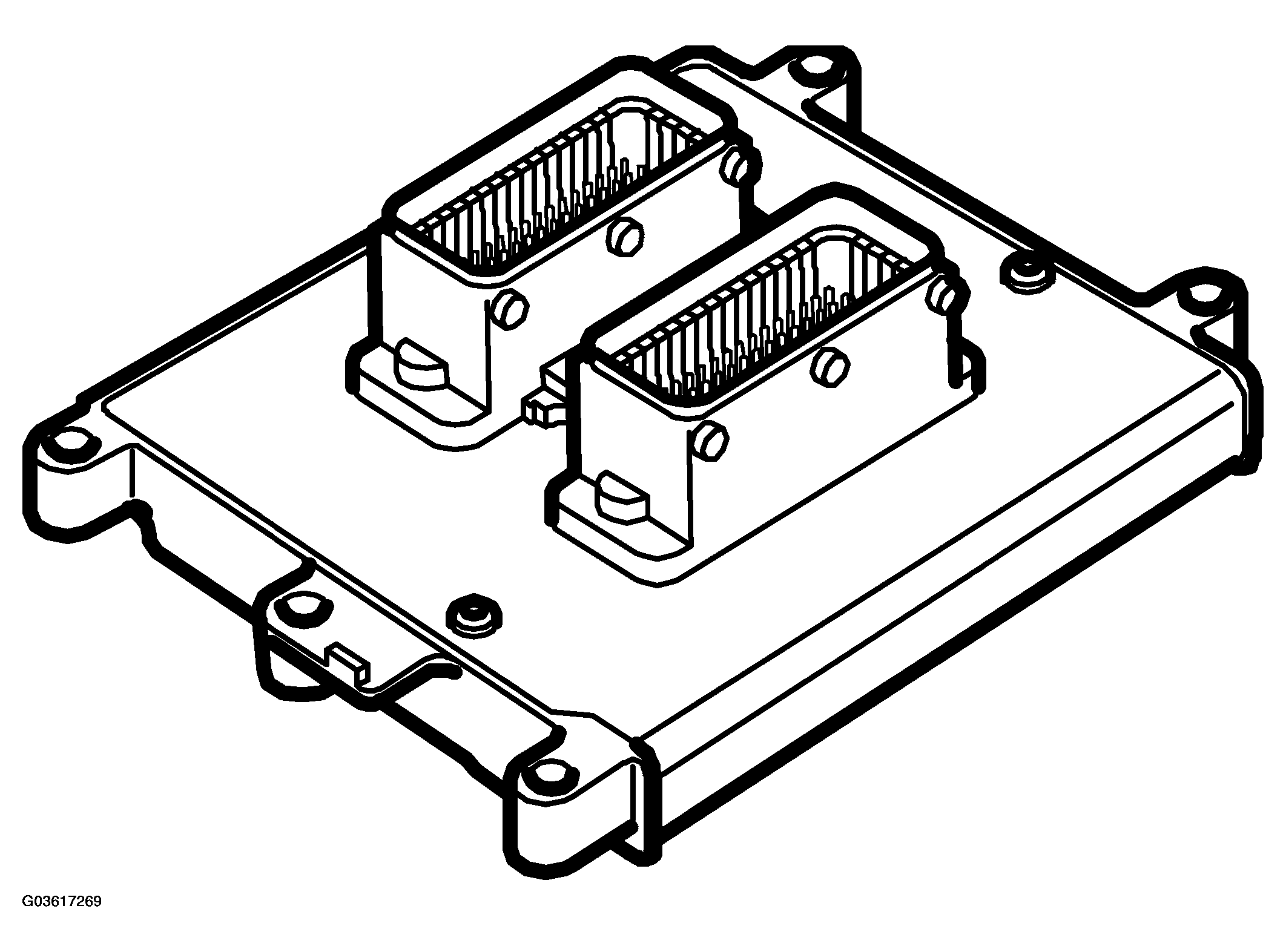

Fig 1: Identifying Control Module, Trionic T8 (589)
G03617269Courtesy of SAAB-SCANIA OF AMERICA, INC.
COMPONENT FUNCTION

No. of pins   A=64
B=64
Power supply, (+30 circuit) Pin no. 3(A), 20(A)0
Power supply (+15 circuit) Pin no. 2(A), 19(A)
Power supply from main relay Pin no. 48(A), 64(A)
Power ground Pin no. 47(A), 57(A), 60(A) and 63(A)
P-bus + Pin no. 5(A)
P-bus - Pin no. 6(A)
