Grounding point G2: Notes

Fig 1: Identifying Grounding Point G2

Courtesy of SAAB-SCANIA OF AMERICA, INC.

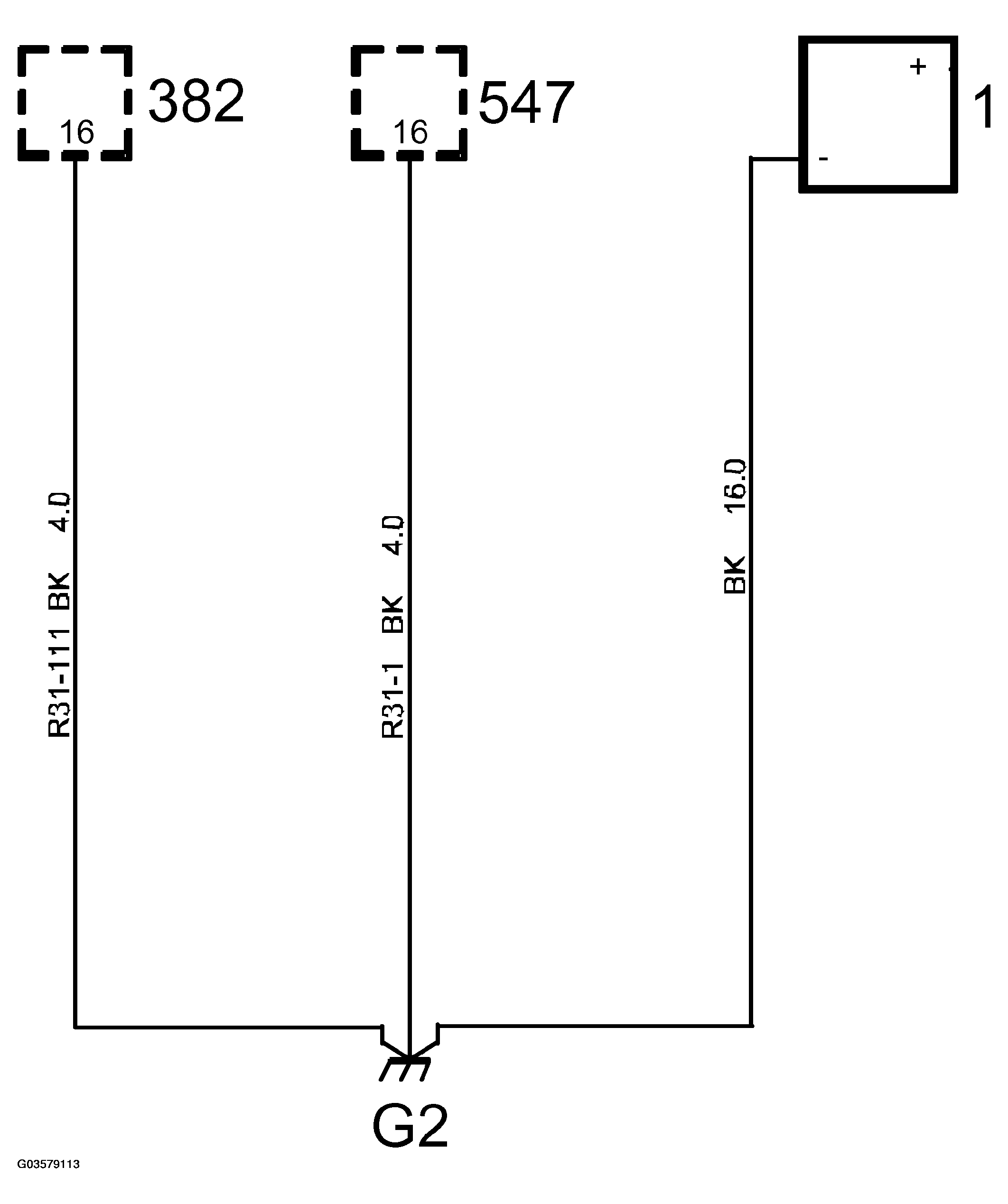

Fig 2: Grounding Point G2 Circuit

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location  : In Engine Bay On Side Panel In Front Of Left-Hand Wheel Housing.
