Integral fans

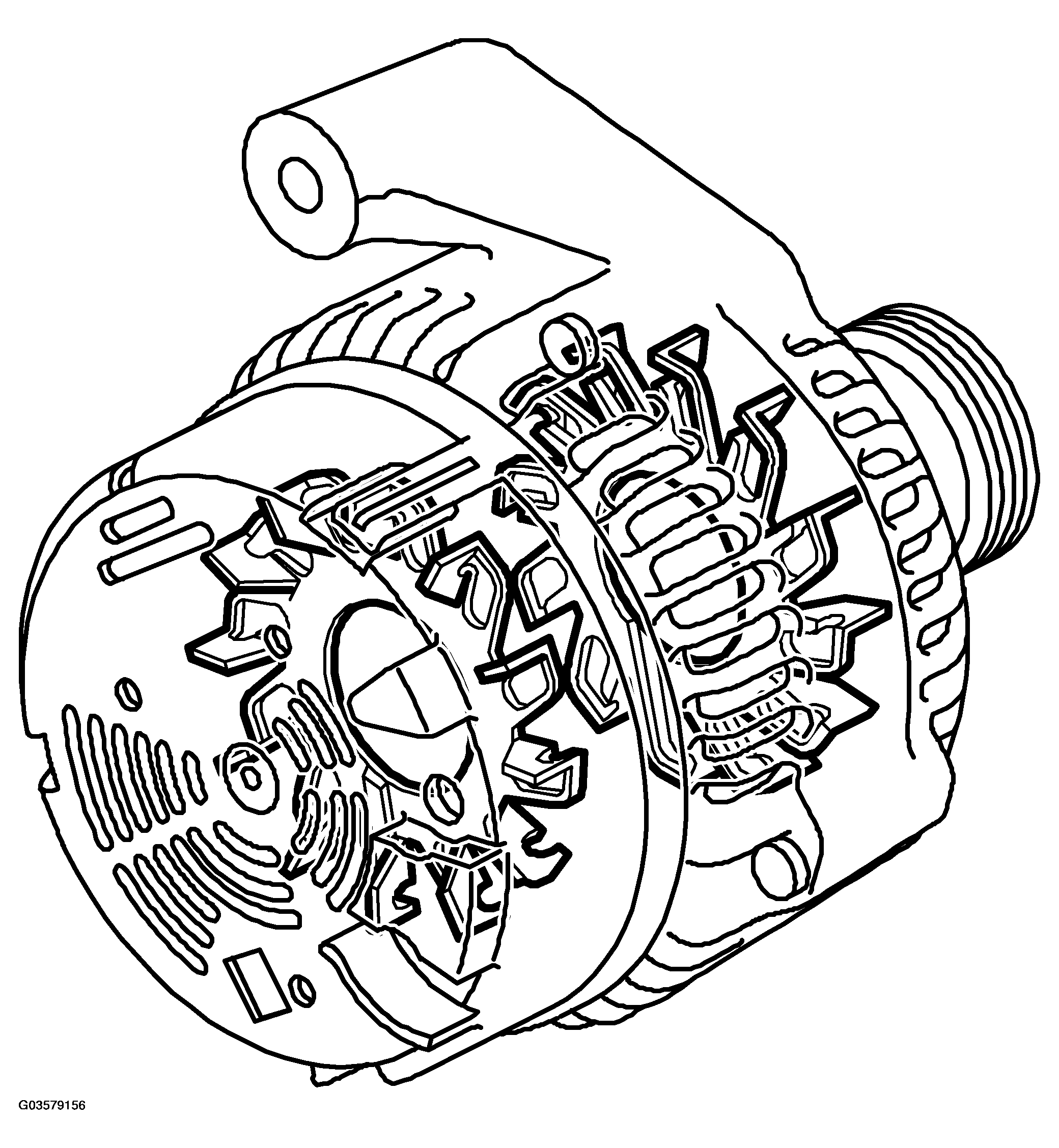

Fig 1: Identifying Generator Integral Fans
G03579156Courtesy of SAAB-SCANIA OF AMERICA, INC.

Heat that builds up in the generator while it is running can eventually cause damage. To dissipate it, the generator has two integral fans, powered from the rotor shaft.
