Generator Design: Notes

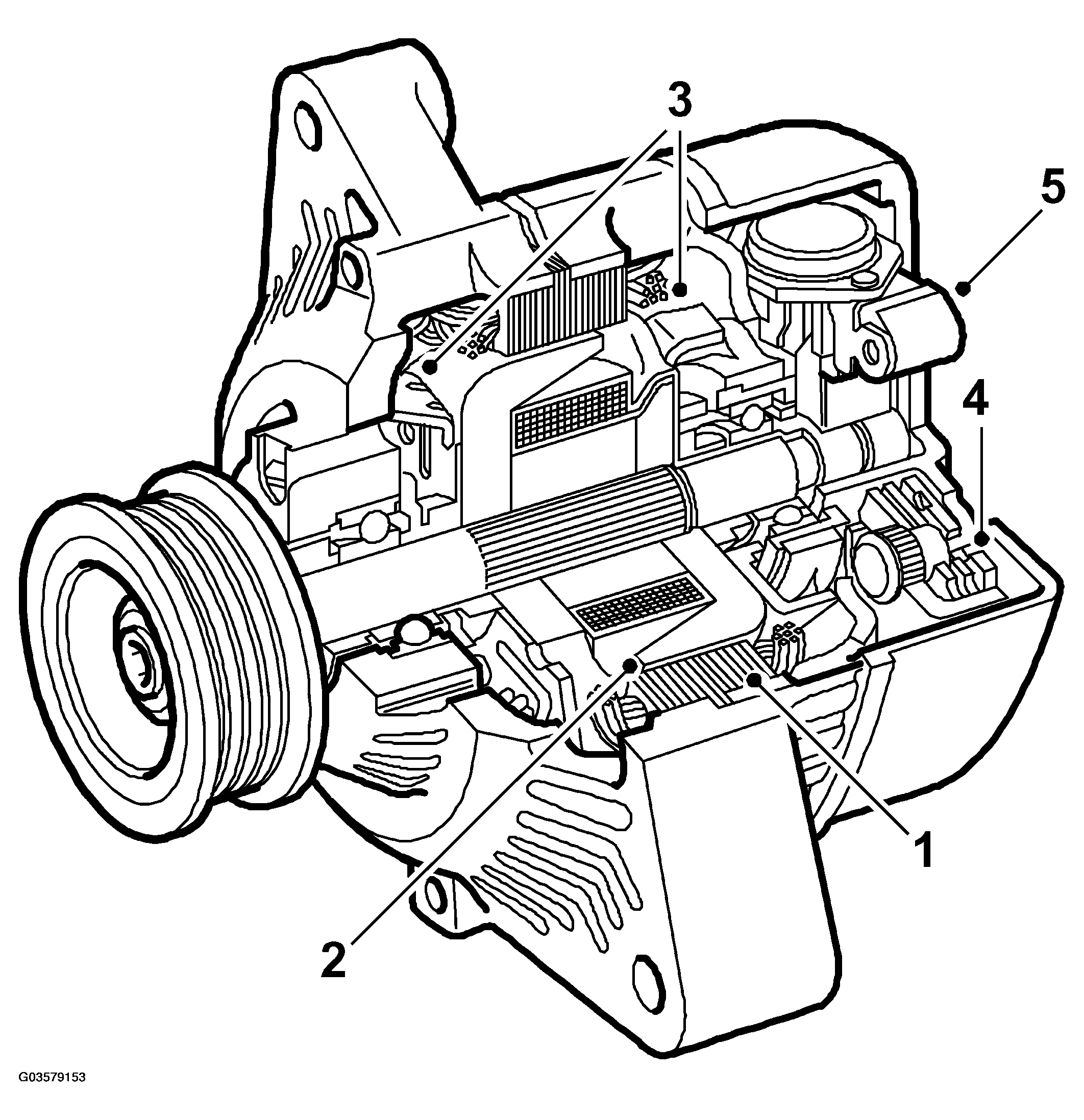

Fig 1: Cut-Out View Of Generator

Courtesy of SAAB-SCANIA OF AMERICA, INC.

The generator is of AC type, with a built-in charge regulator.

The generator is driven by the engine via a multi-groove belt from the crankshaft pulley.

The gear ratio is 1:2.8 for petrol engines and 1:2.9 for diesels.

Three different generators are available for the Saab 9-3:

The 120 A generator being used in diesel-engined vehicles.
