To remove

  1. Remove the lower dashboard panel.

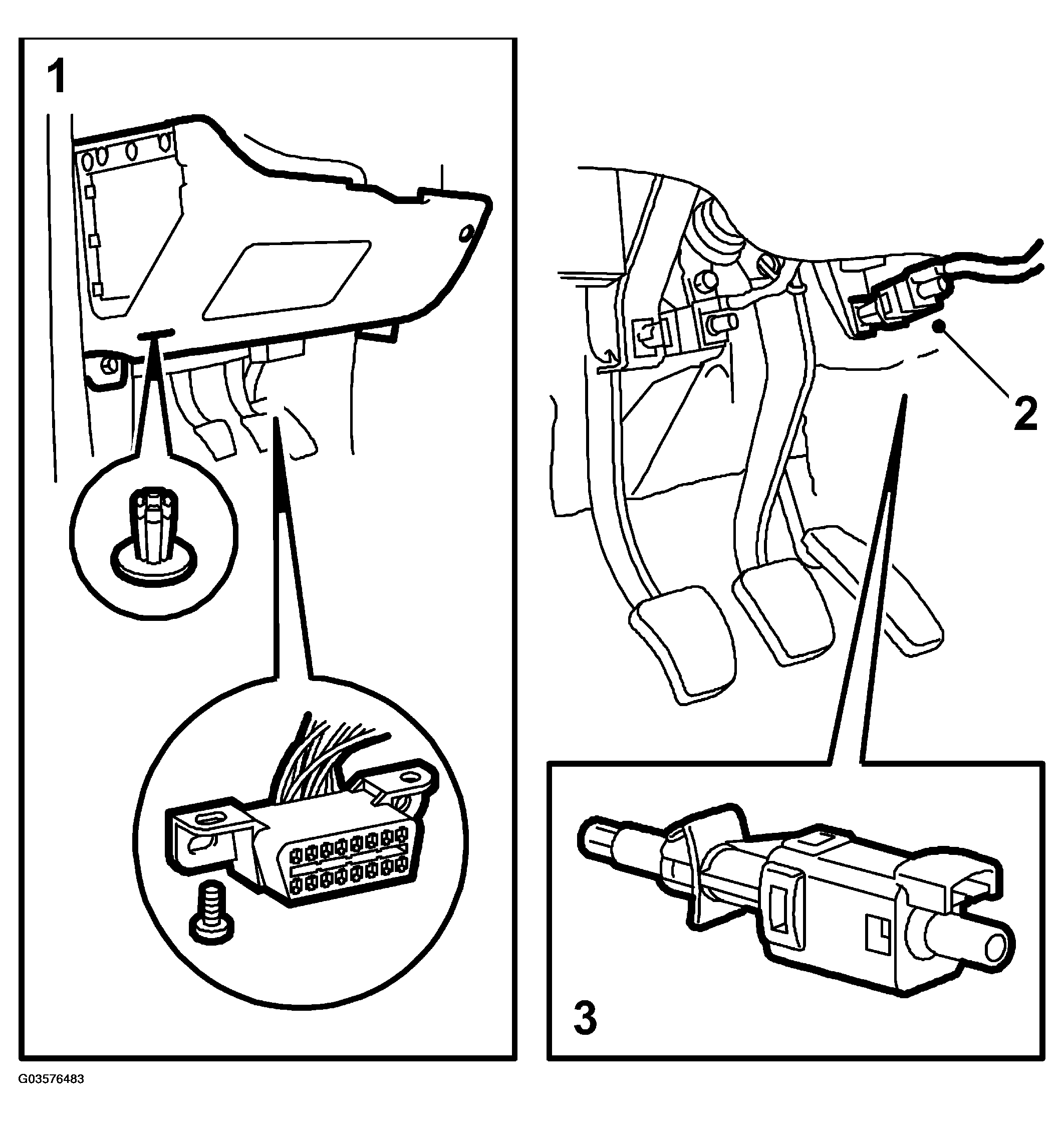

    Fig 1: Illustration For Steps 1-3
    G03576483Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Unplug the brake pedal switch connector.
  3. Detach the brake pedal switch with a screwdriver.
