To fit

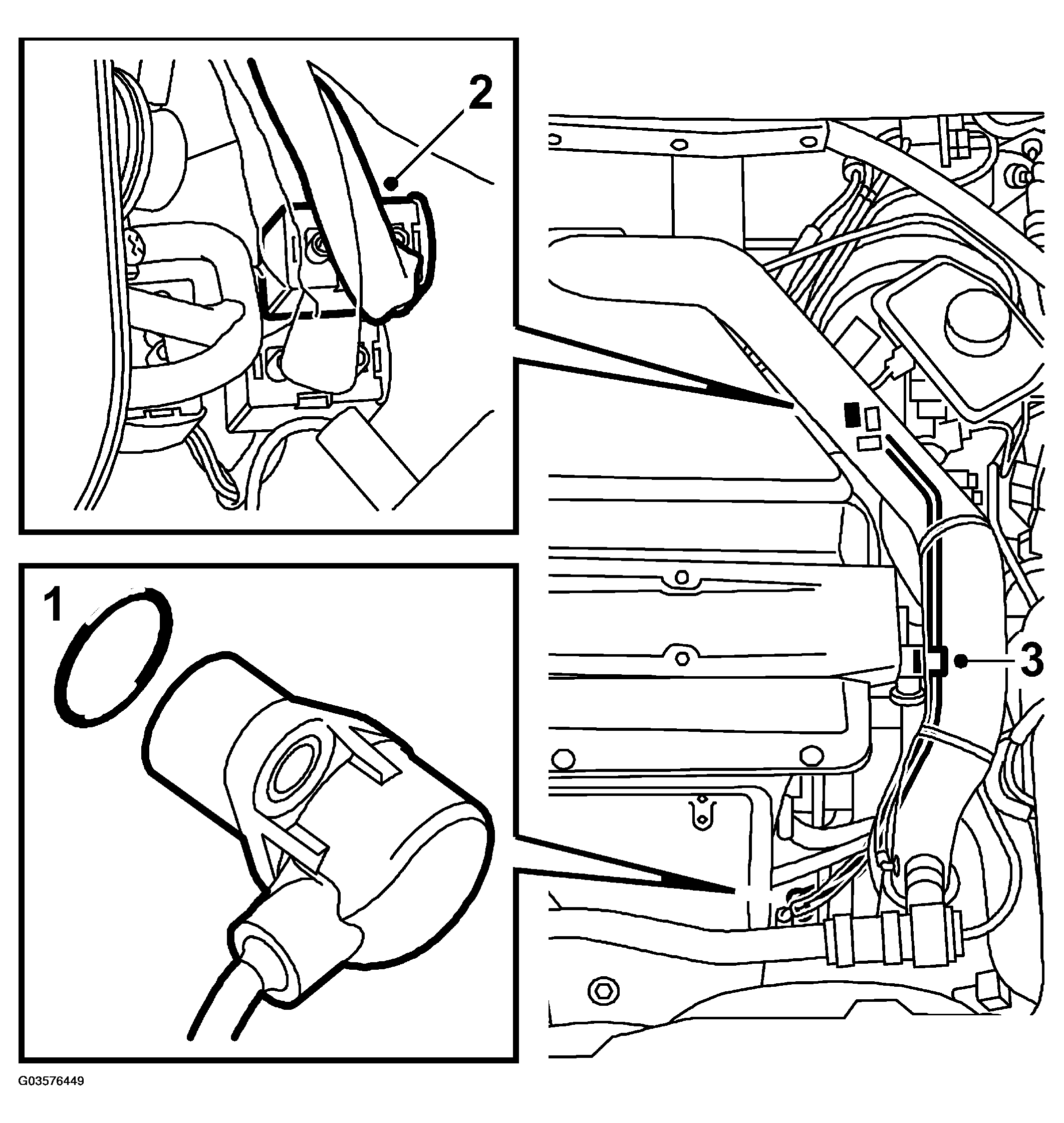

- Fit the sensor provisionally so that the cable runs along the water pipe. Change the O-ring if necessary and lubricate it with engine oil.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
- Spray the connector with Kontakt 61 (part no. 30 04 520) and mount the connector to the holder. Plug in the connectors.
- Secure the cables with the clip. Take care not to pinch or damage the cable with the clip.

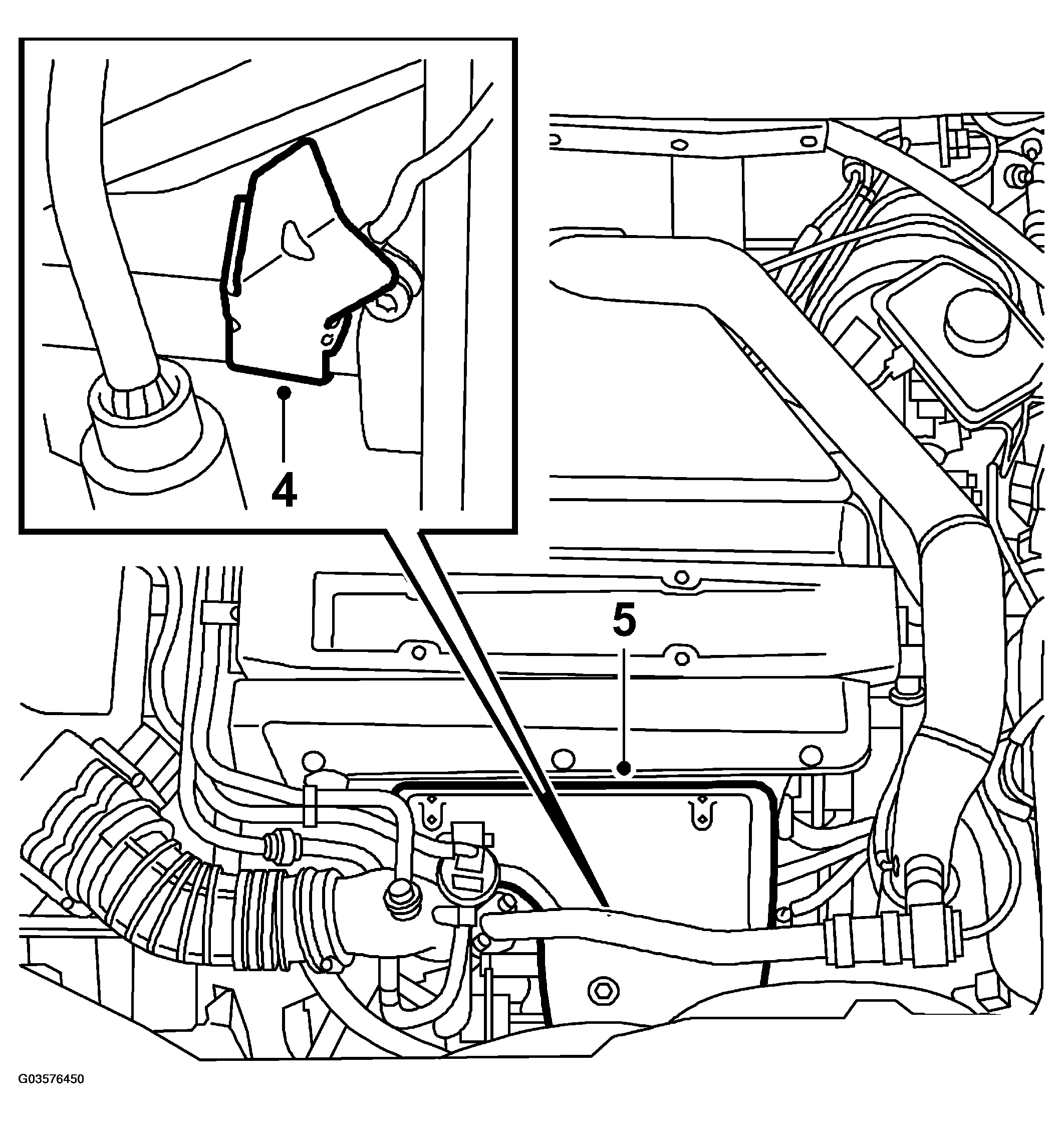

- Press in the sensor and screw it on with the O-ring fitted together with the heat shield. Make sure the O-ring is positioned correctly so that the sensor bottoms in the engine block. Otherwise, there is a risk of the sensor mounting lug breaking off.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
- Fit the heat shield and bypass pipe with valve.
- Start the engine and check for oil leaks.
