To remove

  1. Undo the exhaust manifold heat shield and the bypass pipe with valve.

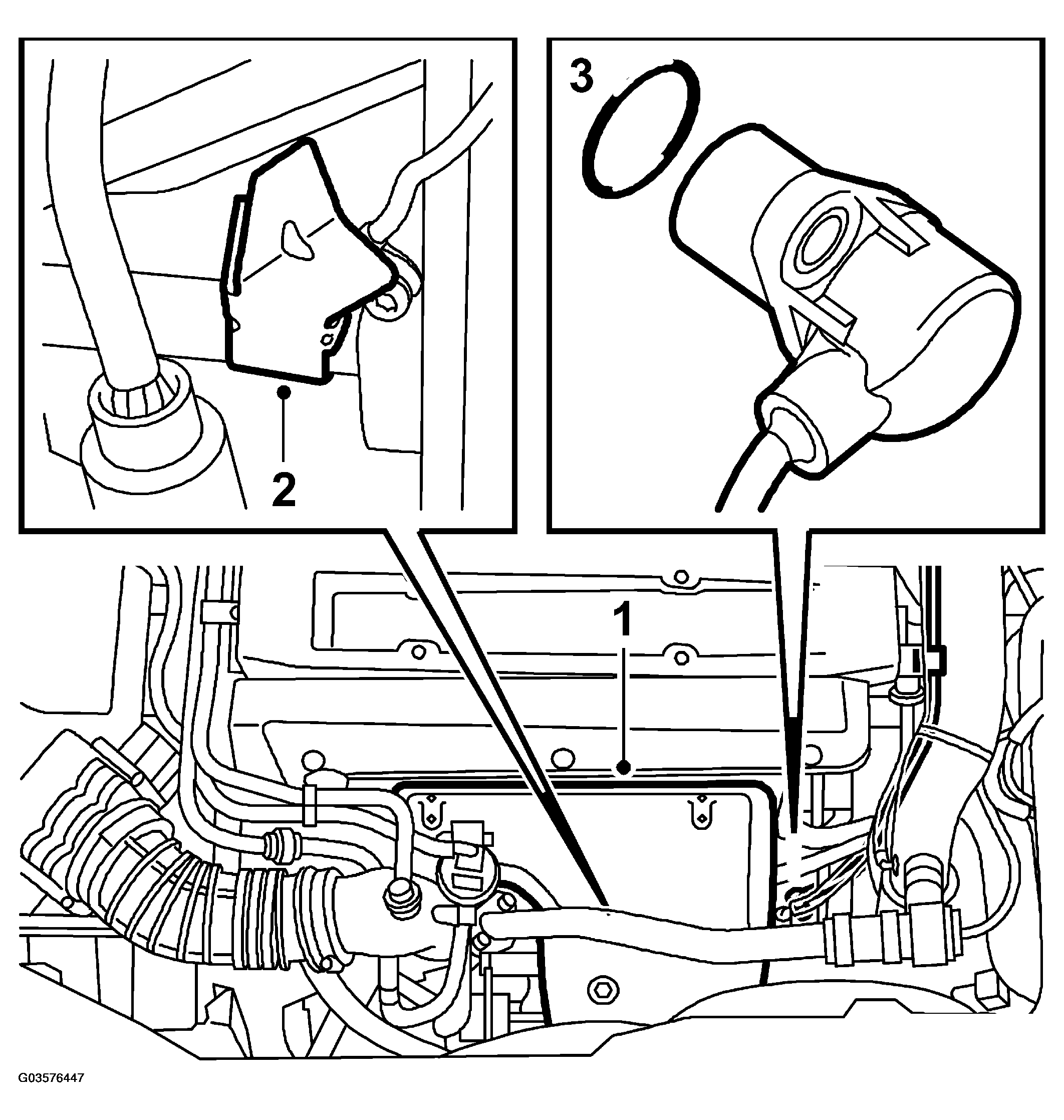

    Fig 1: Illustration For Steps 1-3
    G03576447Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Undo the screw securing the heat shield and sensor.
  3. Detach the sensor and O-ring.
  4. Follow the sensor connecting cable and undo the clip on the water pipe.

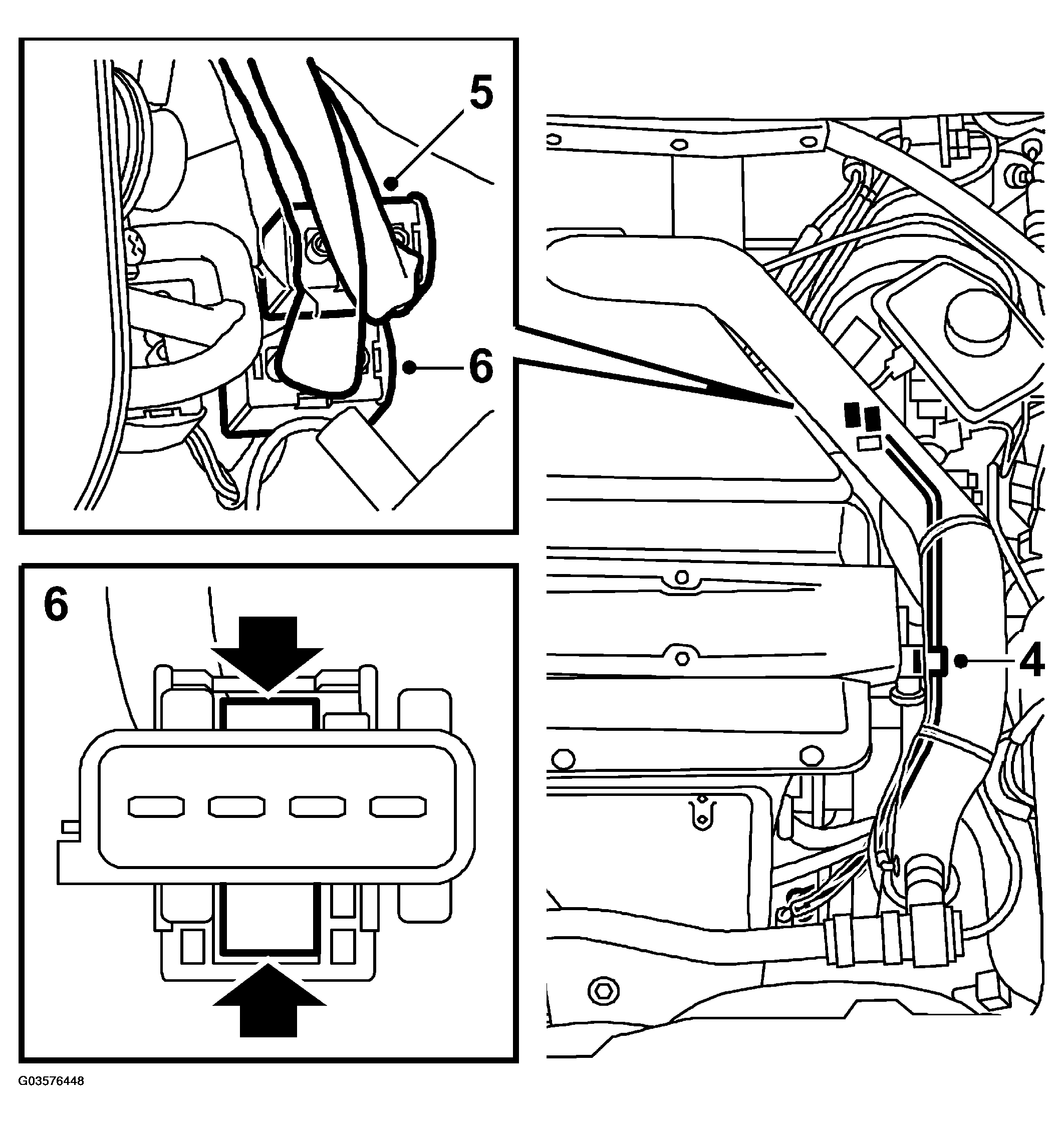

    Fig 2: Illustration For Steps 4-6
    G03576448Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Unplug the top part of the connector for the front oxygen sensor.
  6. Unplug the top part of the connector for the position sensor and then detach the connector from the holder by carefully pressing in the catches with a small screwdriver.
  7. Remove the position sensor.
