To fit

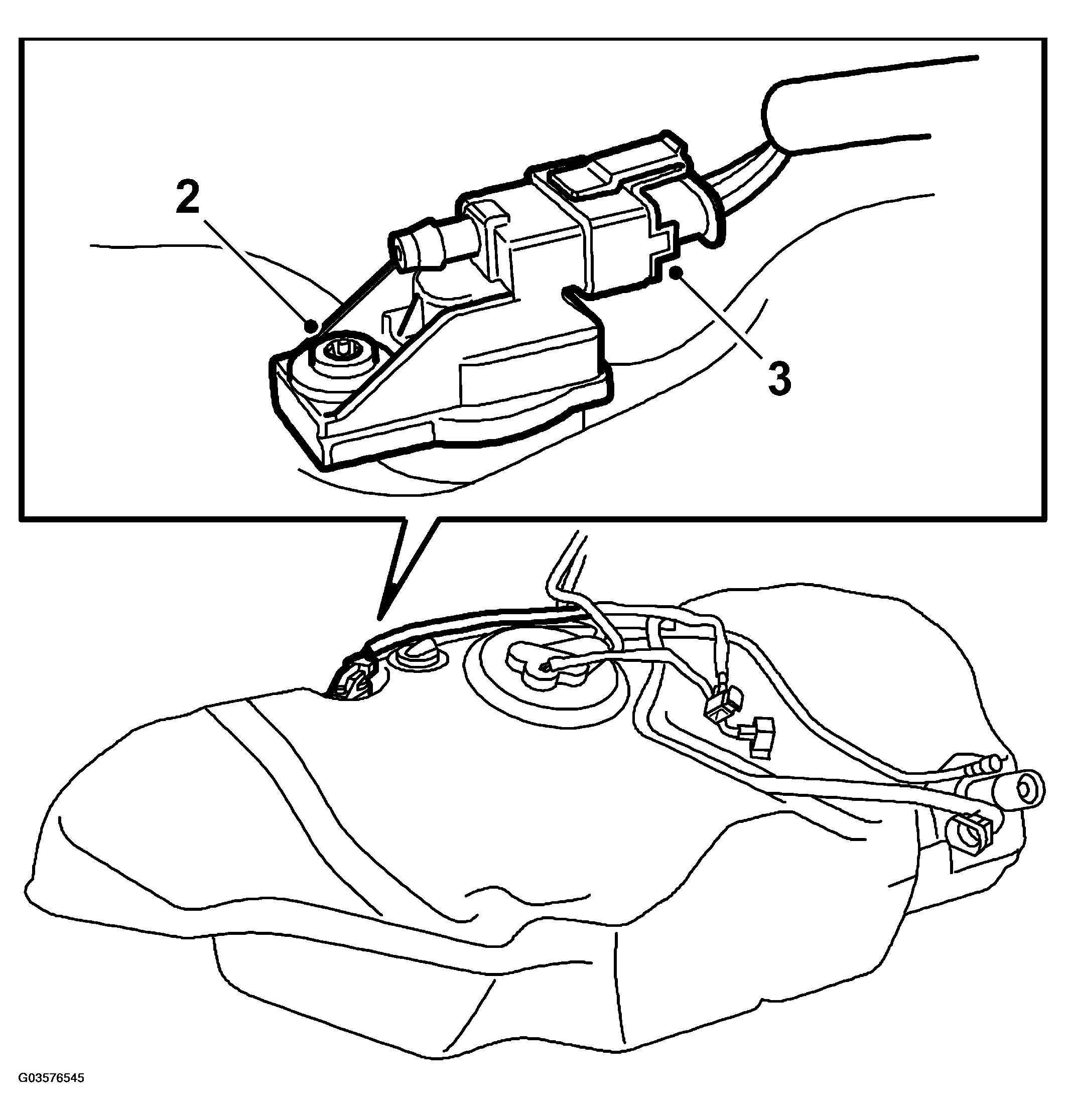

Fig 1: Illustration For Steps 2-3
G03576545Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Make sure all sealing surfaces are clean.
  2. Fit the tank pressure sensor.
  3. Spray with Kontakt 61 and plug the connector into the tank pressure sensor.
  4. Place the tank on a column lift, for example.
  5. Fit the fuel connections and connect the cables to the fuel pump and tank pressure sensor.

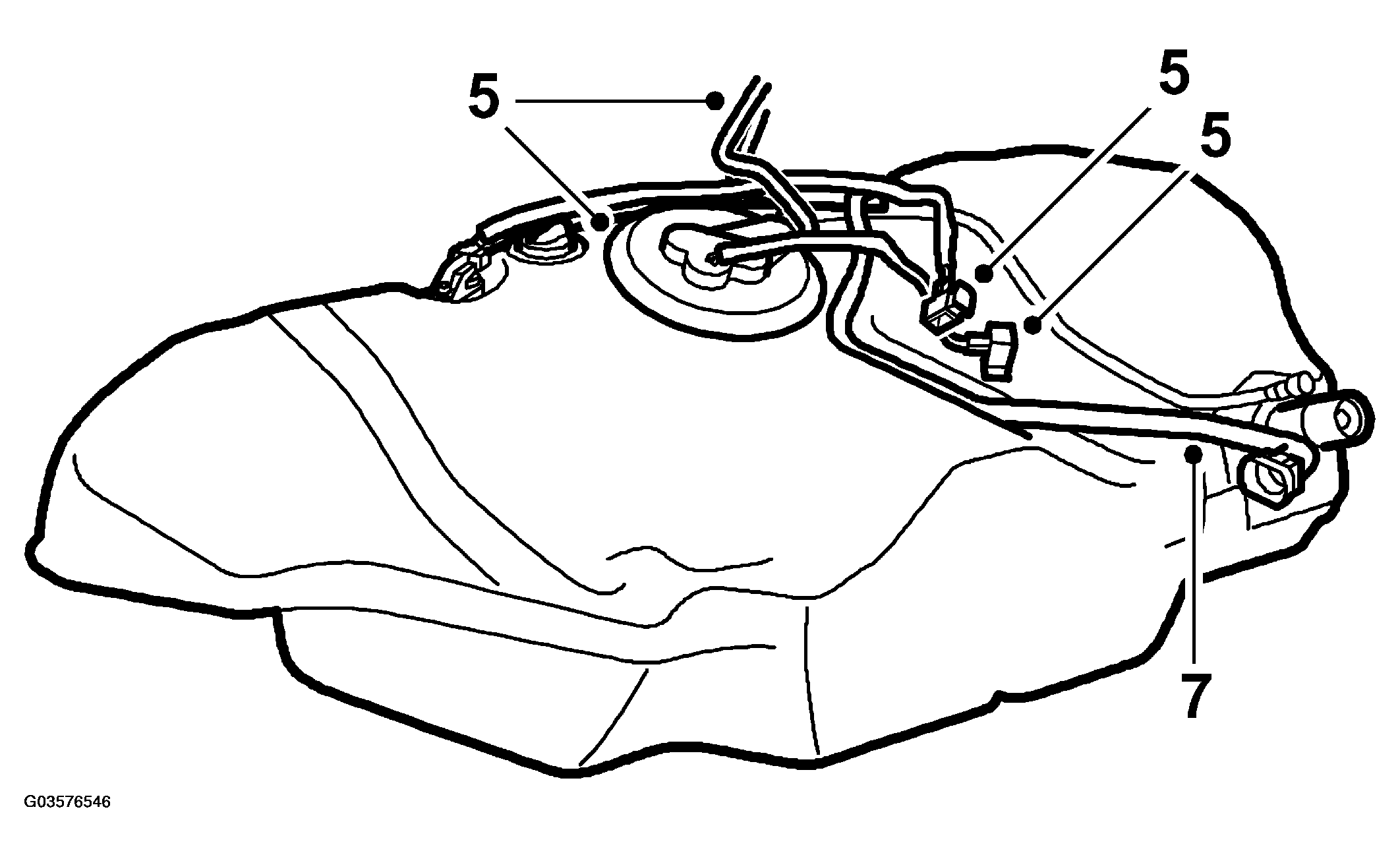

    Fig 2: Illustration For Steps 5-7
    G03576546Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Move the handbrake wire to the left wheel out of the way and raise the tank slightly, left hand side first.
  7. Secure the fuel lines in their holders on the tank.
  8. Raise the tank completely and fasten the tank straps.
    NOTE: Pay careful attention to the line from the tank to the EVAP canister.
  9. Tighten the tank straps with the left-hand one securing the handbrake wire.

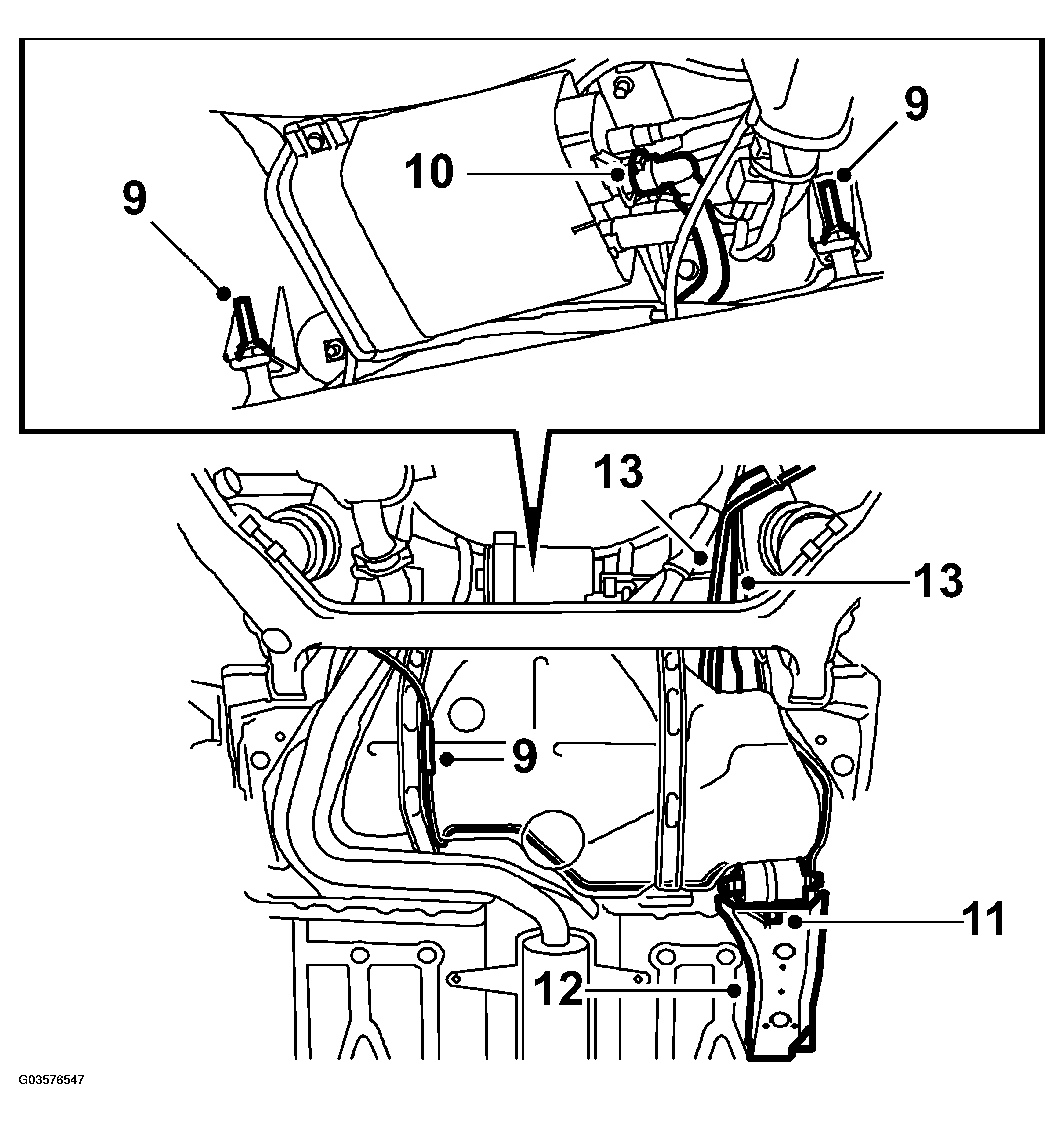

    Fig 3: Illustration For Steps 9-13
    G03576547Courtesy of SAAB-SCANIA OF AMERICA, INC.
  10. Connect the line from the tank to the EVAP canister.
  11. Screw on the fuel filter.
  12. Fit the protective cover on the fuel filter.
  13. Remove the plug from the tank connection and fit a new hose to the filler pipe.
    IMPORTANT: The hose to the filler pipe must always be replaced with a new one. Never refit an old one as there is risk of it cracking.
  14. Fit the filler pipe purge line.
  15. Lower the car.
