To fit

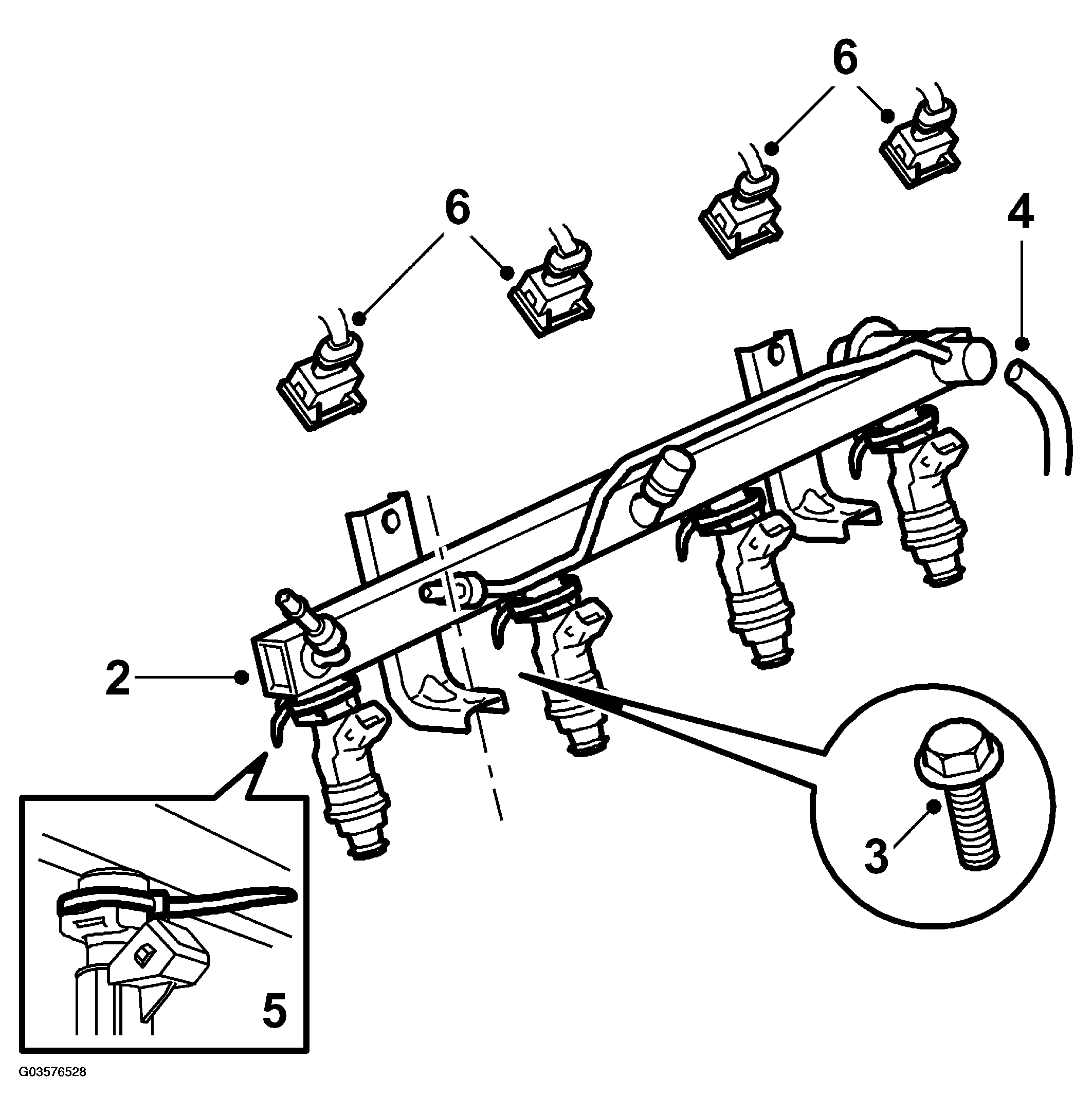

Fig 1: Illustration For Steps 2-6
G03576528Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the plugs from the nozzles and lubricate the injector O-rings with acid-free vaseline, part no. 30 06 665.
  2. Carefully lift the rail in place.
  3. Fit the rail with fuel rail and injectors, 2 screws.
  4. Connect the pressure regulator vacuum hose.
  5. Remove the cable ties around the injectors.
  6. Position the cable channel. Spray the injector connectors with Kontakt 61, part no. 30 04 520, and plug them in.
  7. Fit the cable channel with the 3 screws.

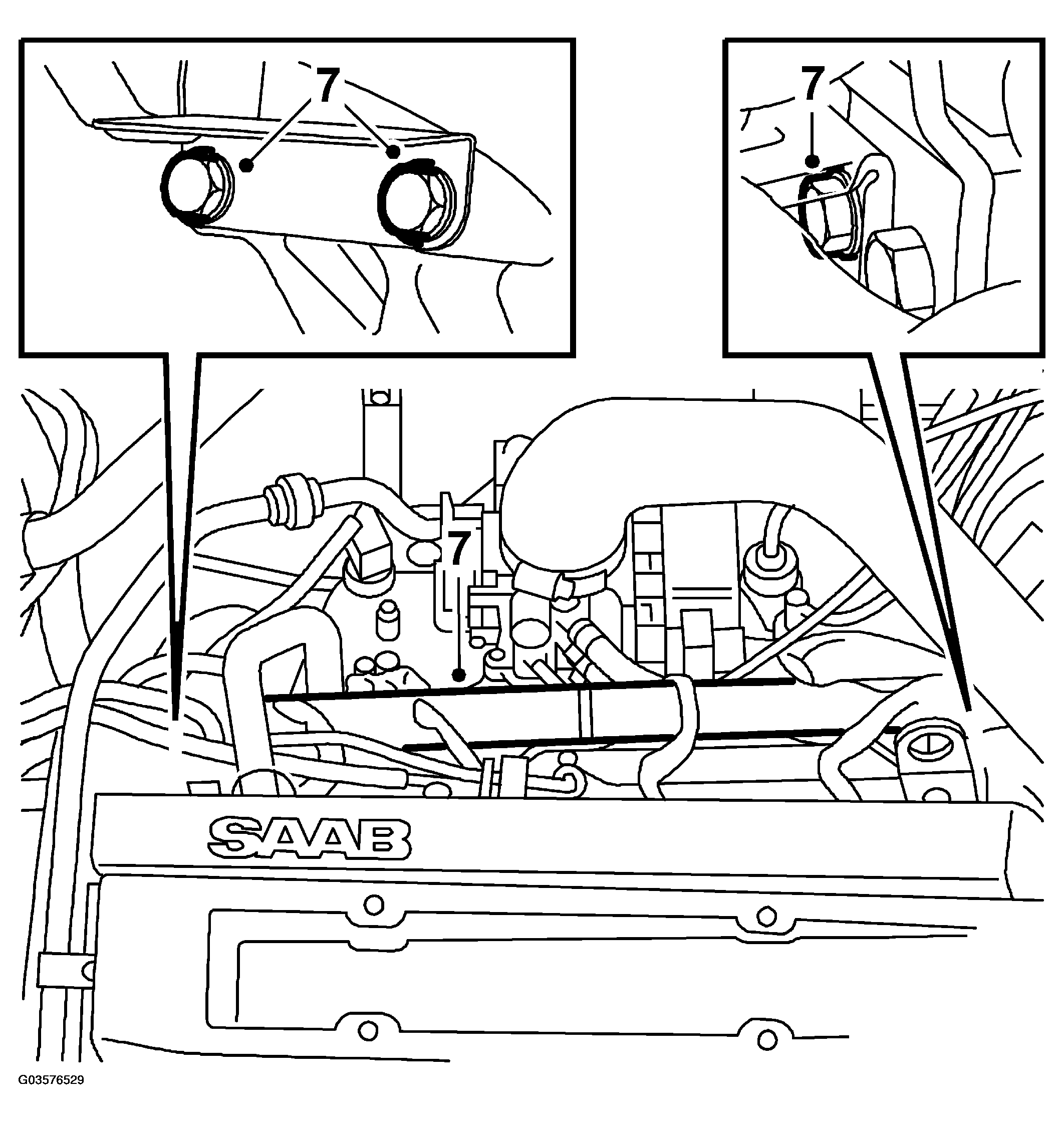

    Fig 2: Illustration For Step 7
    G03576529Courtesy of SAAB-SCANIA OF AMERICA, INC.
  8. Fit the accelerator wire and holder.

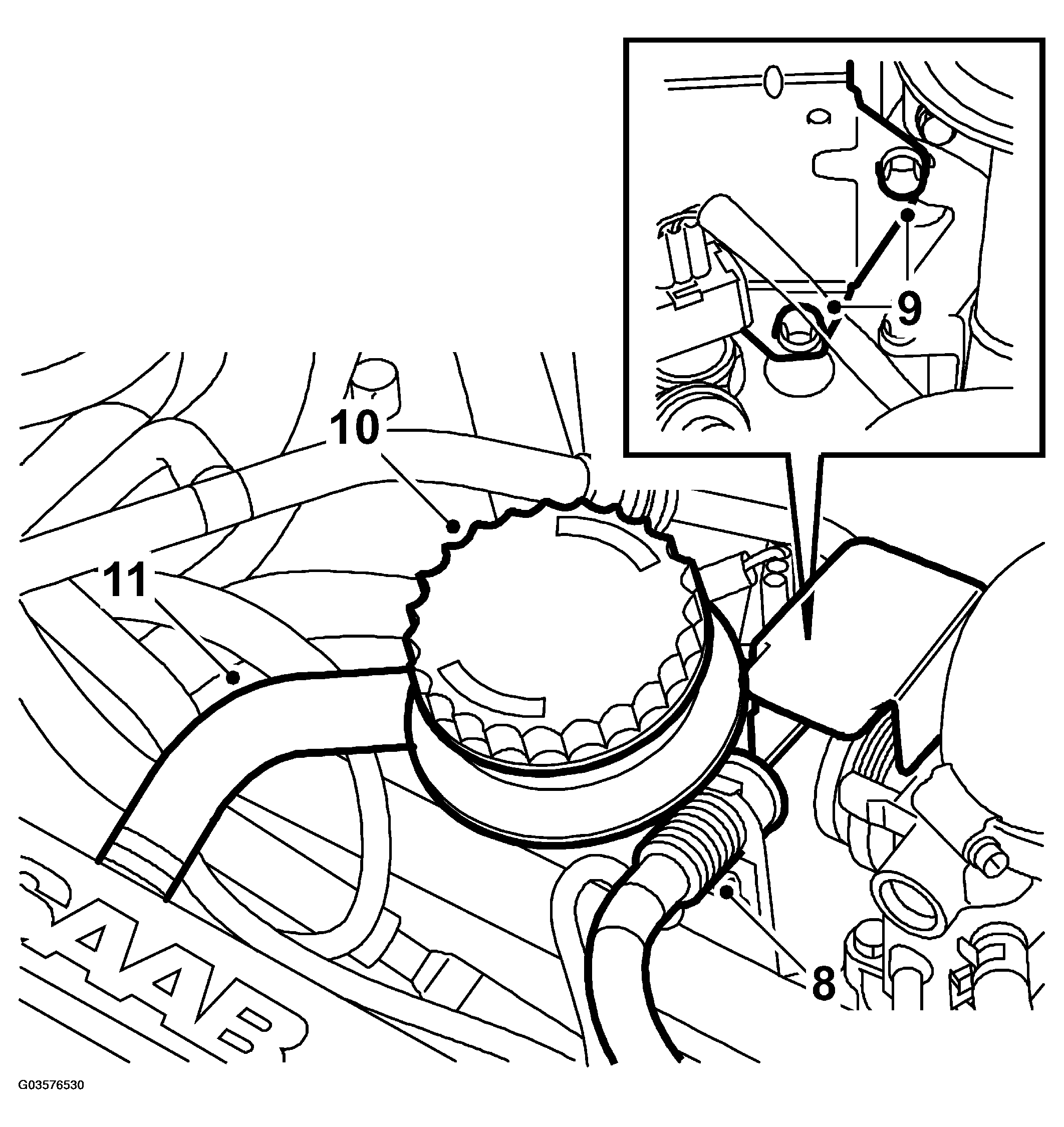

    Fig 3: Illustration For Steps 8-11
    G03576530Courtesy of SAAB-SCANIA OF AMERICA, INC.

    Adjust the accelerator wire.

  9. Fit the cover over the throttle disc.
  10. Fit the dipstick and filler pipe.
  11. Attach the crankcase ventilation hoses.
  12. Fit the fuel connections to the fuel rail.

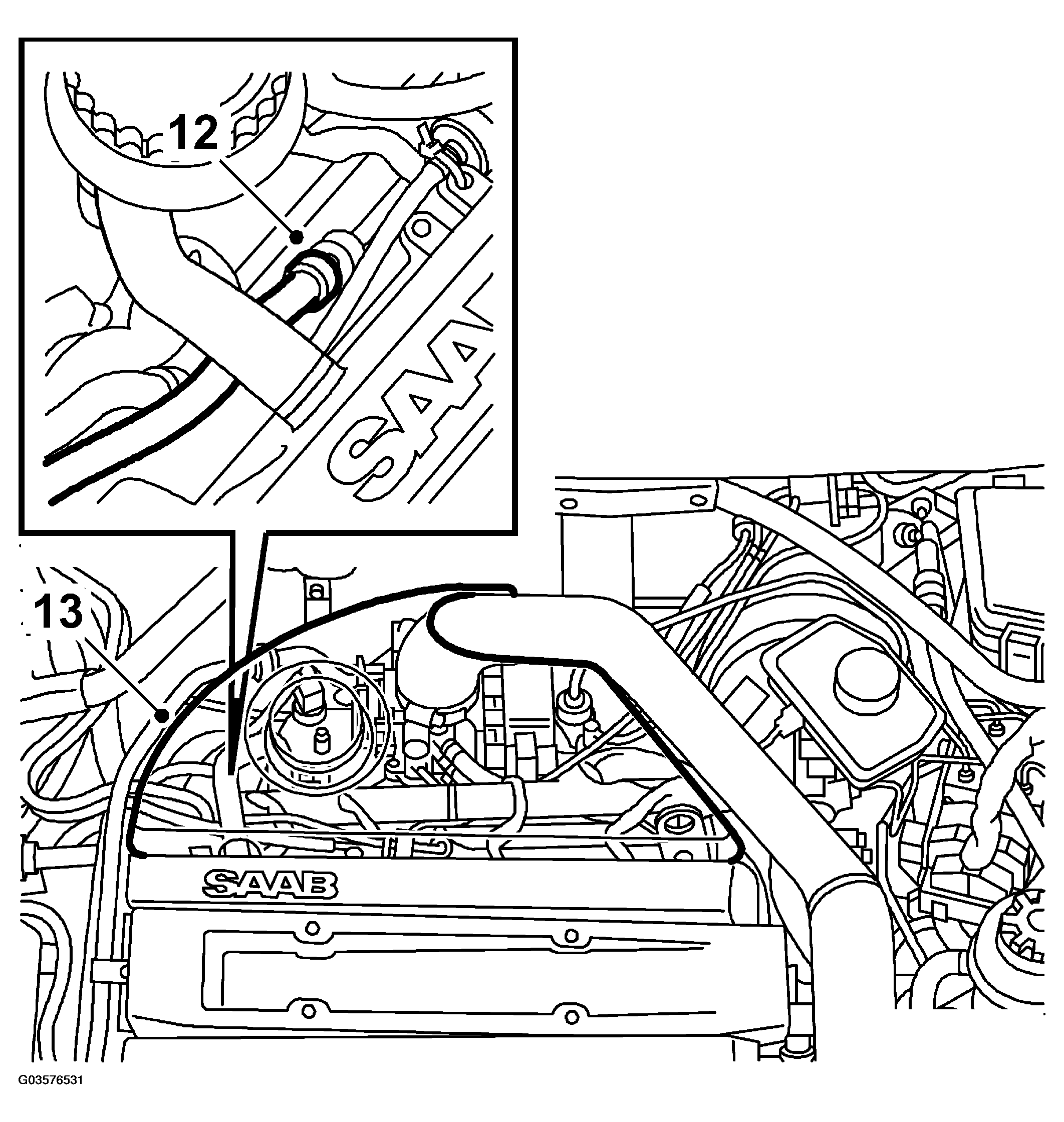

    Fig 4: Illustration For Steps 12-13
    G03576531Courtesy of SAAB-SCANIA OF AMERICA, INC.
  13. Fit the engine cover.
