To remove

  1. Remove the cover on the knee protection.

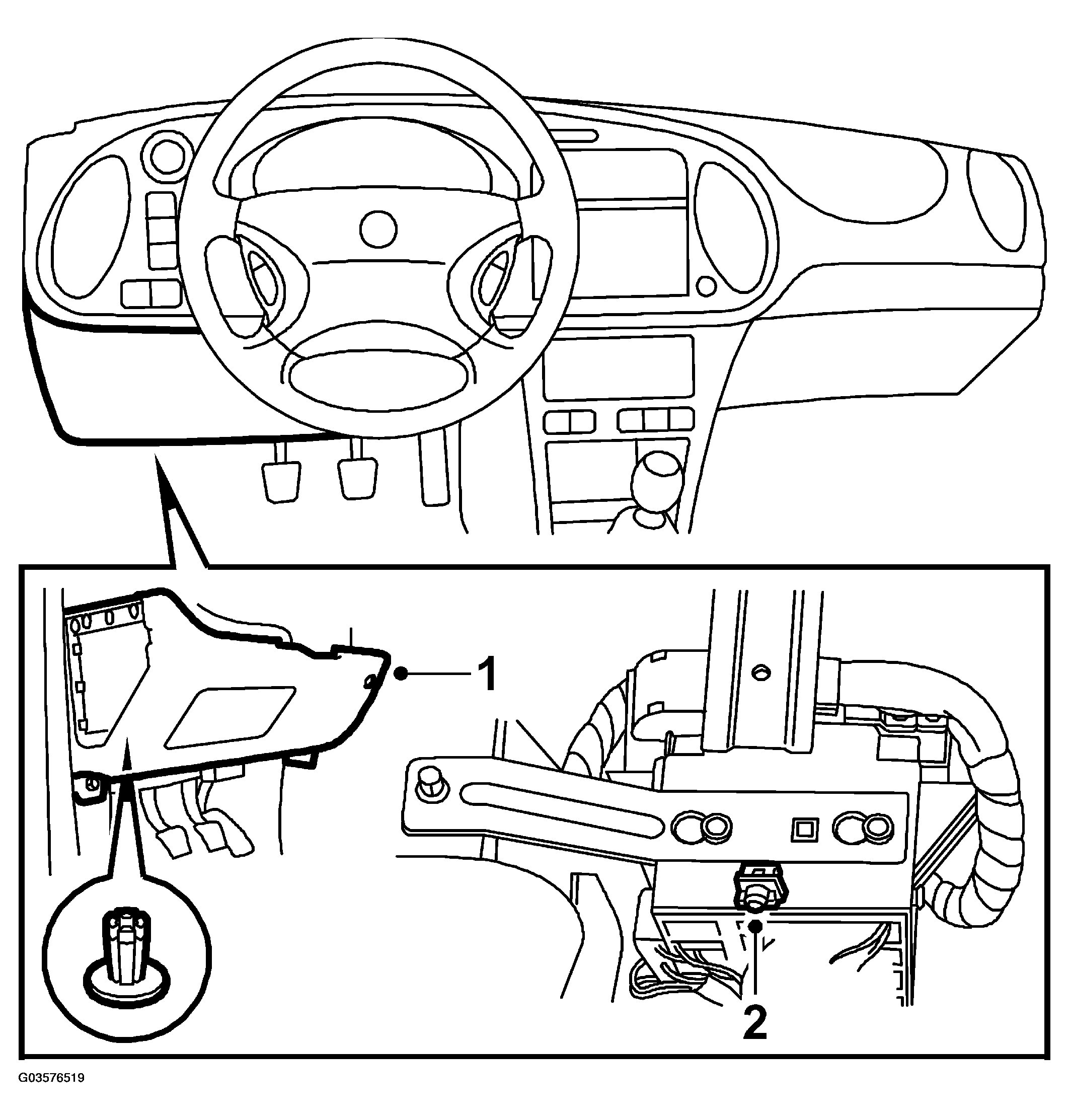

    Fig 1: Illustration For Steps 1-2
    G03576519Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Undo the screw securing the relay holder.
  3. Tilt down the relay holder.

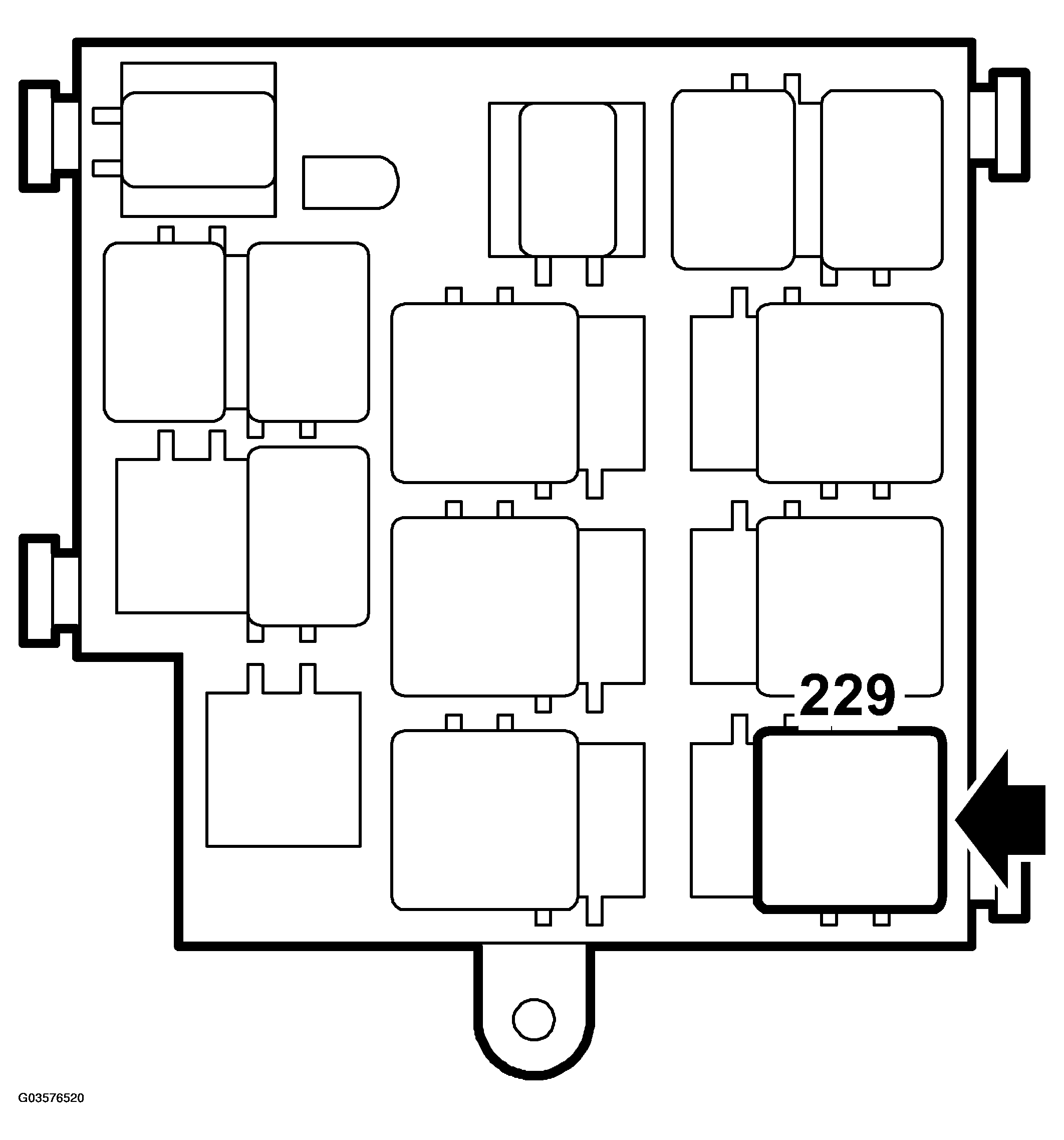

    Fig 2: Identifying Relay Holder
    G03576520Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Remove the main relay.
