To fit

  1. Apply petroleum jelly (part no. 30 20 271) or the equivalent sparingly to the sensor O-rings. Fit the sensor.

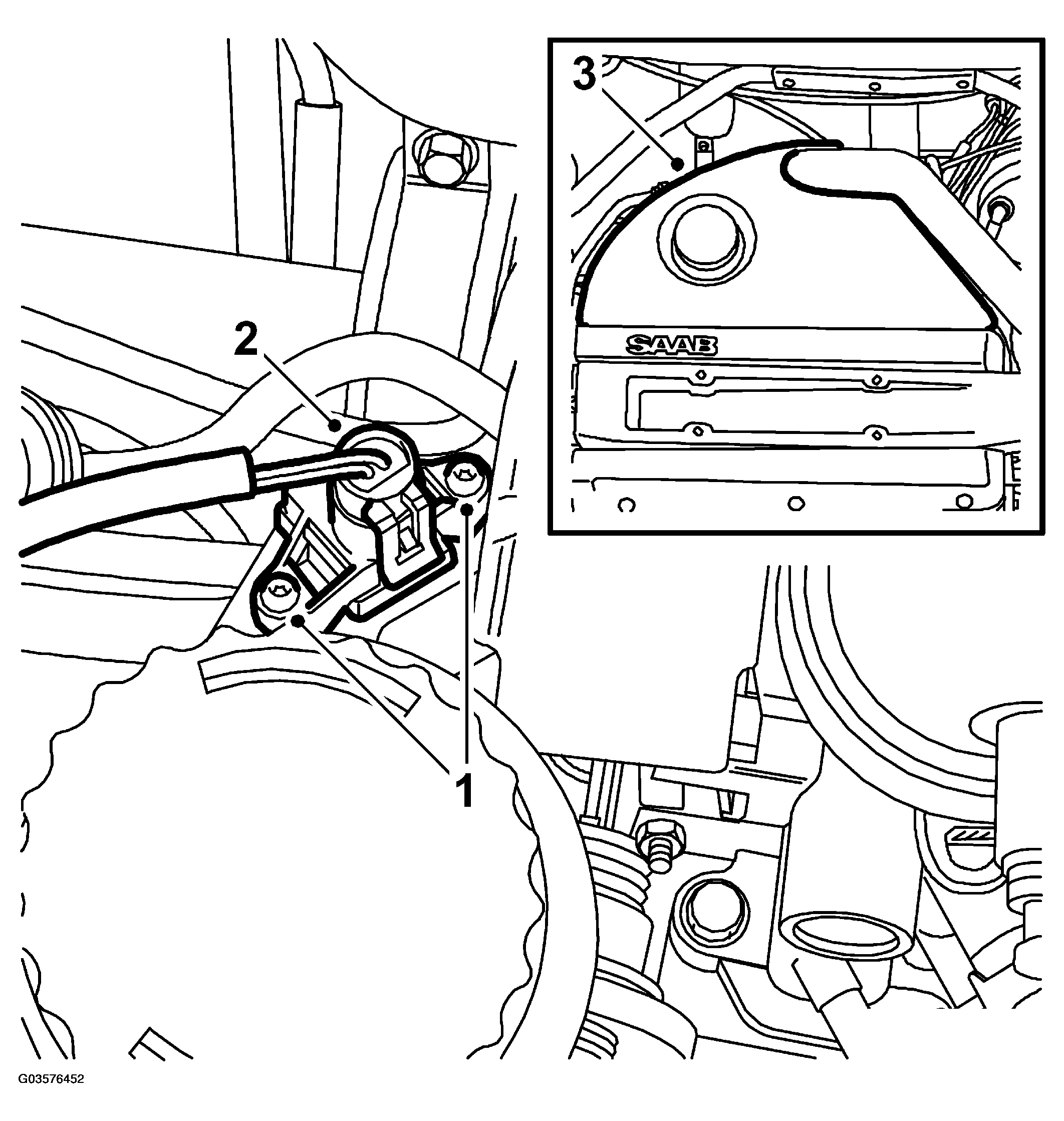

    Fig 1: Illustration For Steps 1-3
    G03576452Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Spray the connector with Kontakt 61 (part no. 30 04 520). Plug in the connector.
  3. Fit the top engine cover.
