To remove

  1. Unplug the 10-pin ignition discharge module connector.

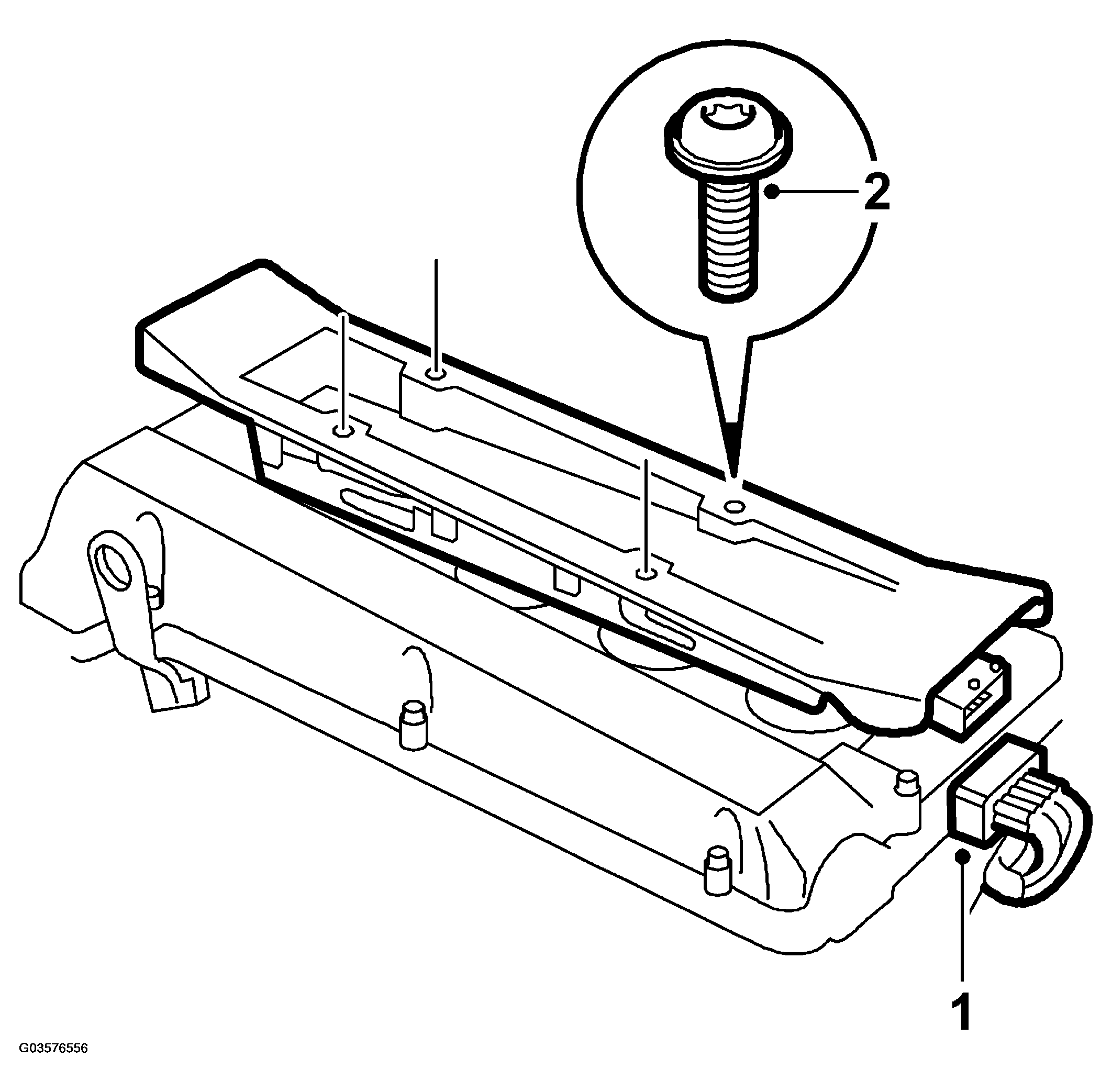

    Fig 1: Illustration For Steps 1-2
    G03576556Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the 4 ignition discharge module screws.
  3. Remove the spark plugs.
