Home
>>
Saab
>>
2003
>>
9-3 Vector, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
TRIONIC T7 Fuel Control System
>>
Component Location
>>
Connector H6 -12
>>
Not OBDII
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Not OBDII

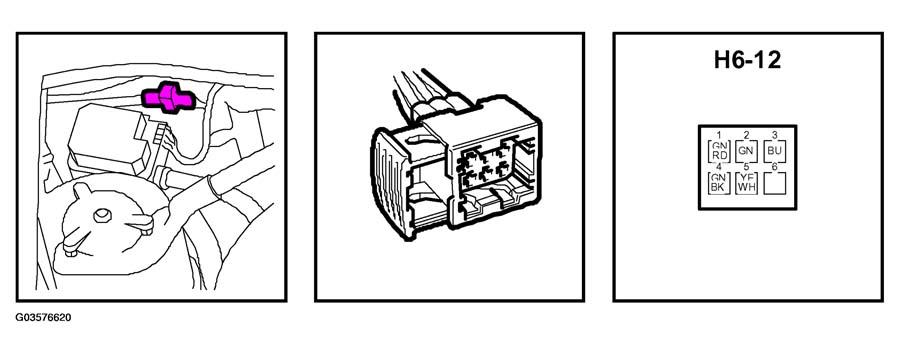

Fig 1: Identifying H6-12 Connector Pinouts( Not OBDII)
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
