Grounding point G7A: Notes

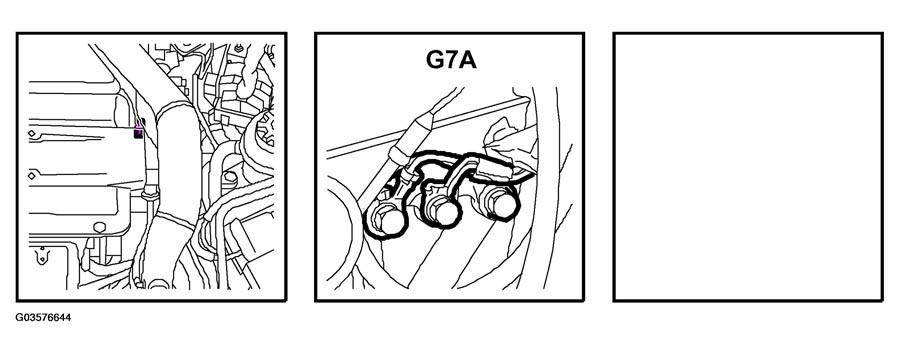

Fig 1: Locating Grounding Point G7A

Courtesy of SAAB-SCANIA OF AMERICA, INC.

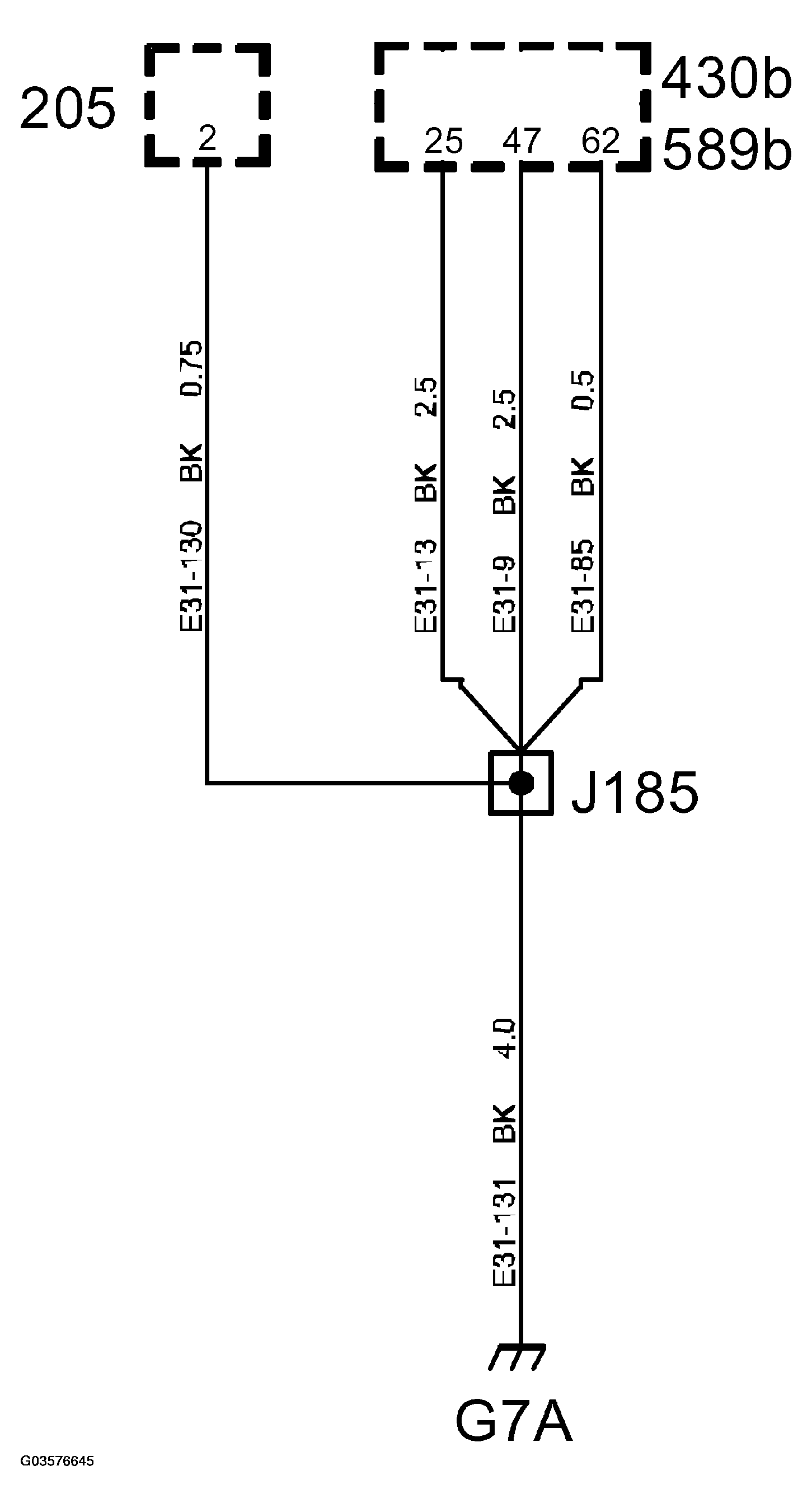

Fig 2: Identifying Grounding Point G7A - Connection Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  on side of intake manifold at cylinder 4

Cable marking:  yellow tape
