Heating element, oxygen sensor (271): Front

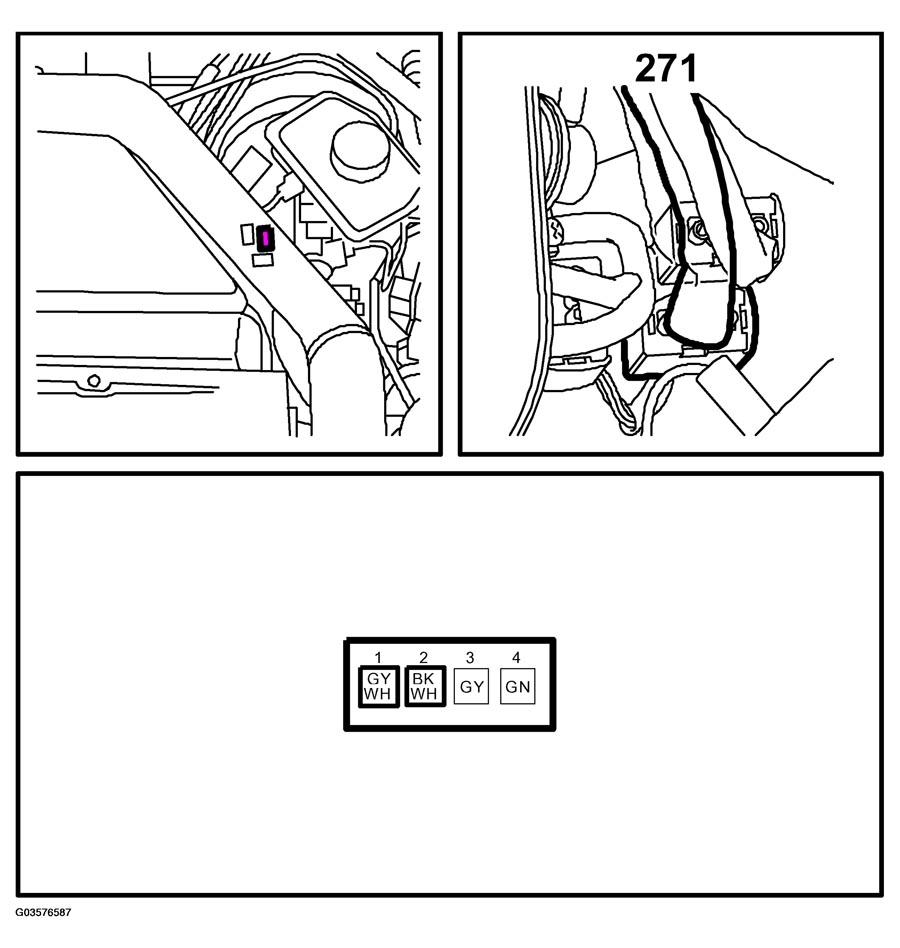

Fig 1: Identifying Oxygen Sensor Heating Element Connector Pinouts - Front
G03576587Courtesy of SAAB-SCANIA OF AMERICA, INC.
