Relay, starter relay (517): LHD

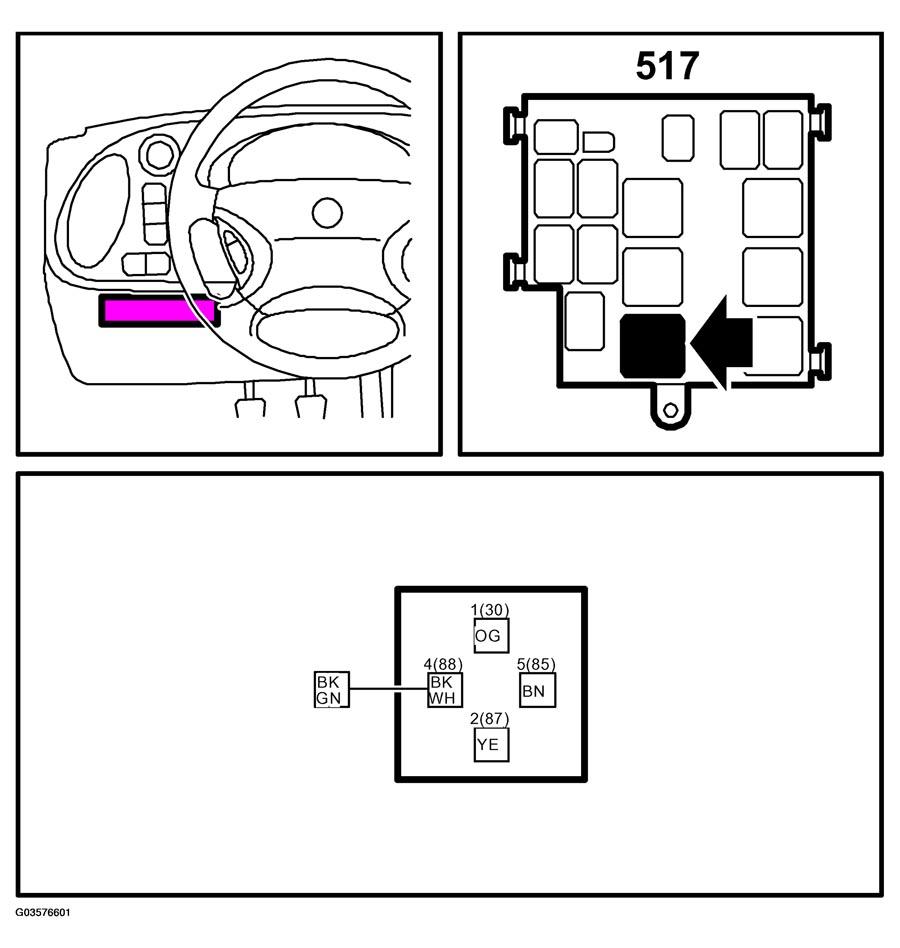

Fig 1: Identifying Starter Relay Connector Pinouts - LHD

G03576601

Courtesy of SAAB-SCANIA OF AMERICA, INC.
