Temperature sensor, coolant, engine management system (202): PSG16

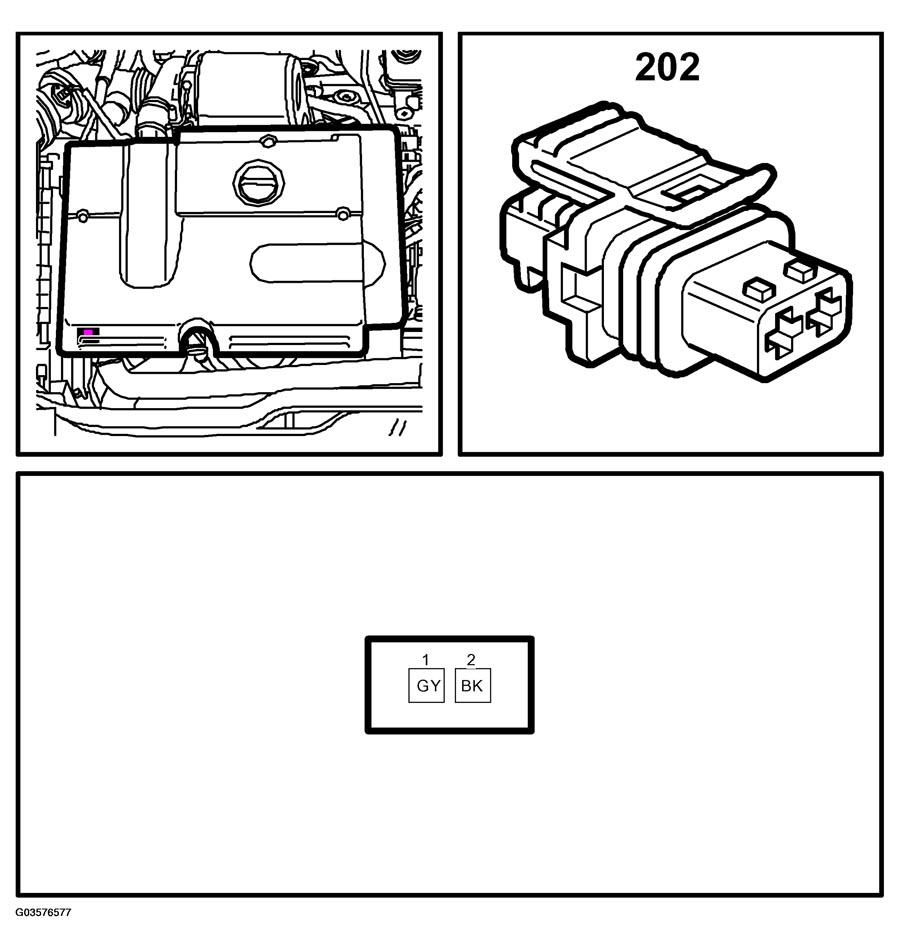

Fig 1: Identifying Temperature Sensor Connector Pinouts - PSG16
G03576577Courtesy of SAAB-SCANIA OF AMERICA, INC.
