Transmission range switch 1, automatic (245)

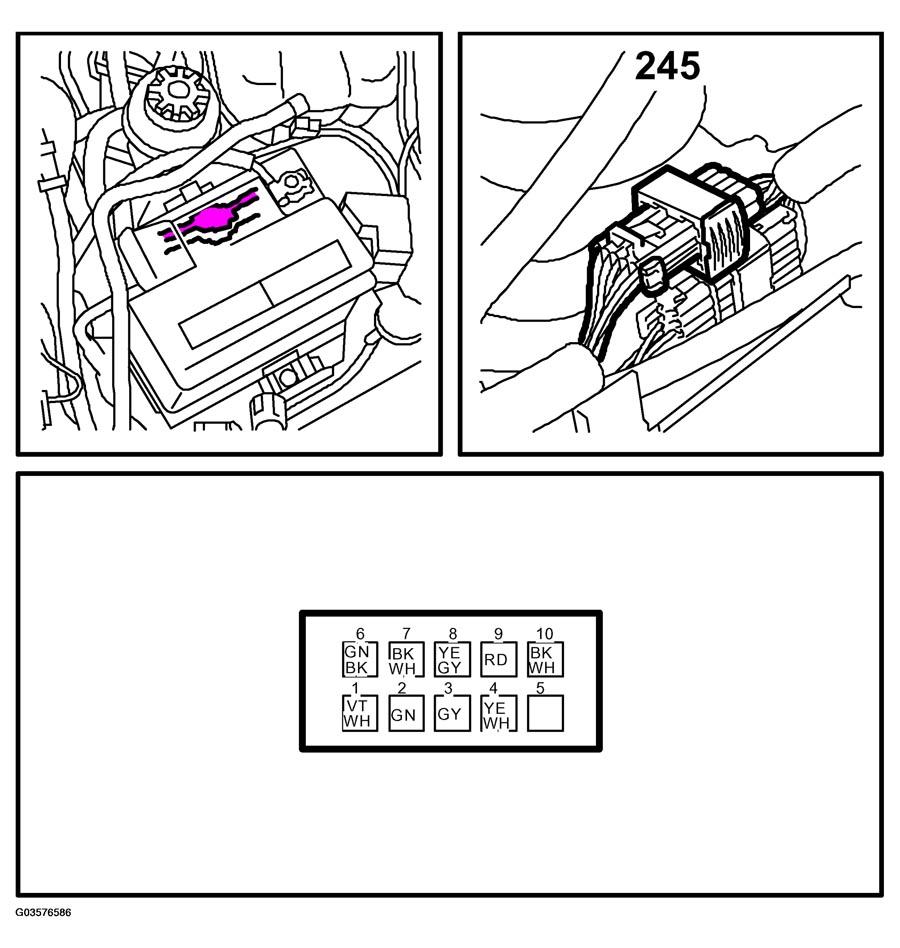

Fig 1: Identifying Transmission Range Switch - Connector Pinouts
G03576586Courtesy of SAAB-SCANIA OF AMERICA, INC.
